Section 11 (Heater System): Description
WARNING: This page is about a different car, the 1998 Isuzu Rodeo, 1998 Isuzu Amigo, and 1998 Honda Passport. However, it is still accessible from the selected car via links, so may be relevant.

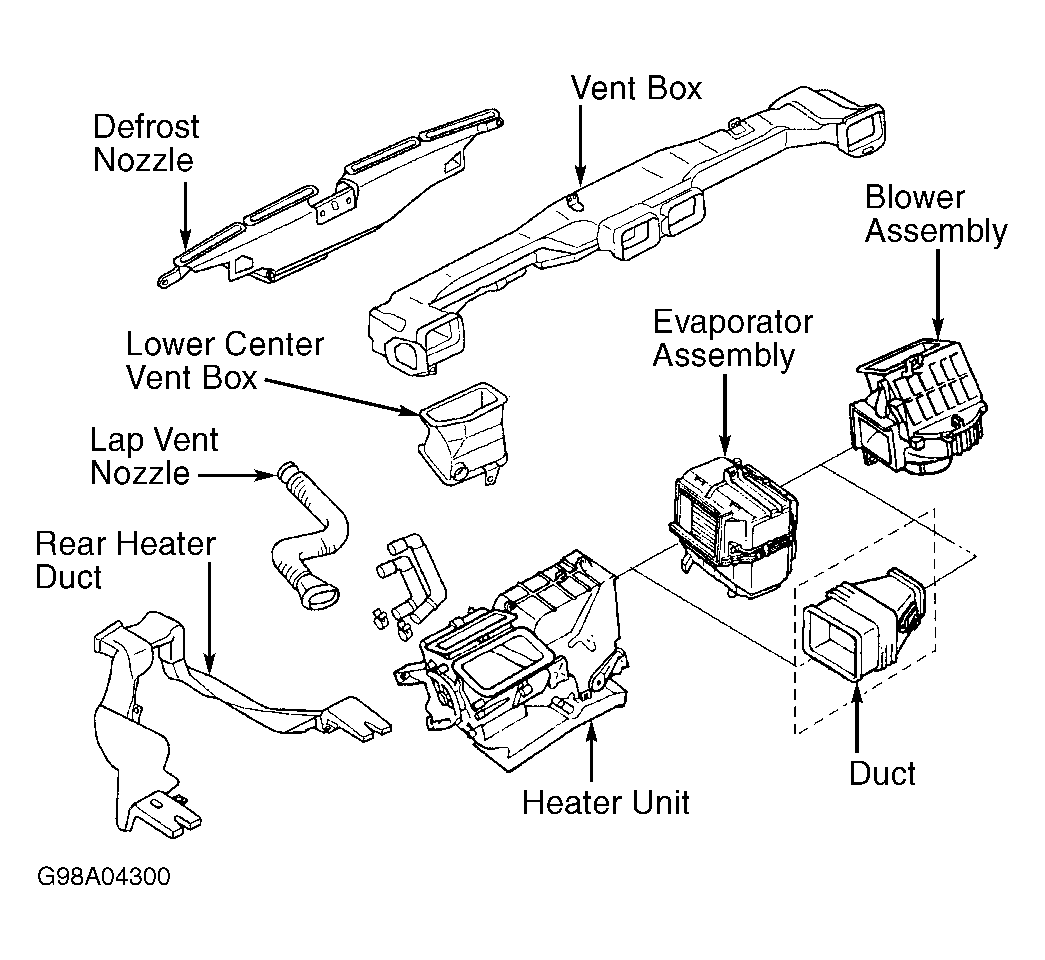

The heater system delivers warm air to passenger compartment after engine warms up. The system draws in outside air, passes it through heater core and distributes it to various outlet vents. The system consists of circulation ducts, heater unit, blower assembly and heater control panel. See Fig 1 .
WARNING:
To avoid injury from accidental air bag deployment, read and carefully follow all SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM procedures in AIR BAG RESTRAINT SYSTEM article.
