Door Glass
NOTE:
Make adjustments with vehicle on flat level surface. Check weatherstripping for damage or deterioration. Remove door panel and plastic cover. See DOOR PANEL
under REMOVAL & INSTALLATION.

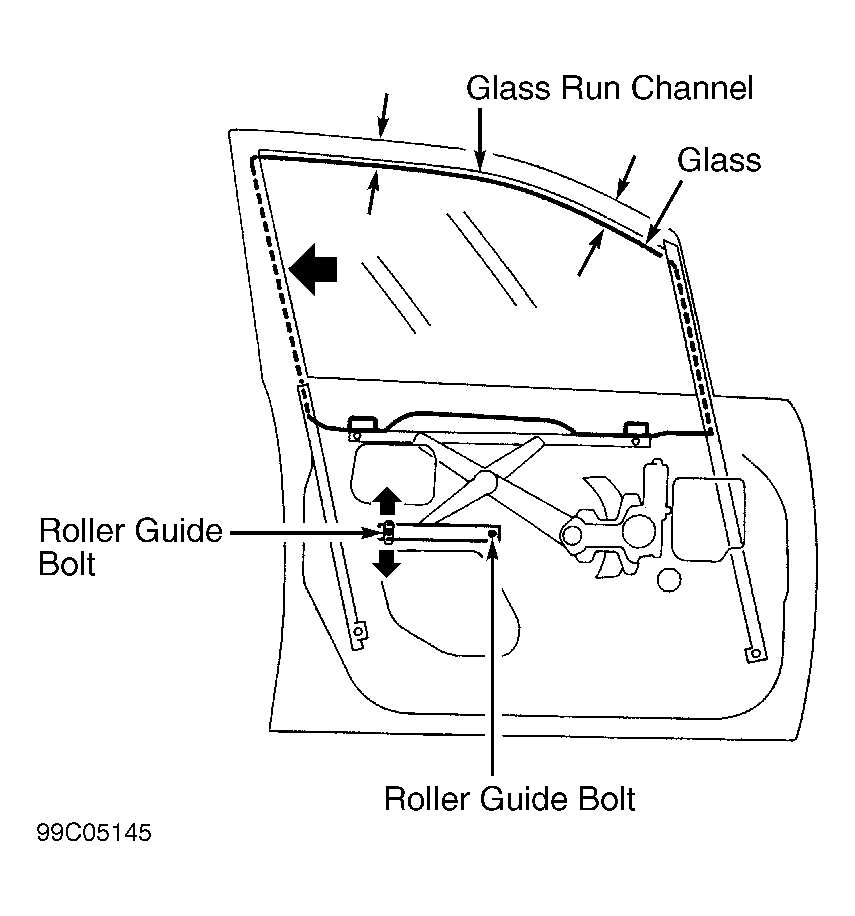

- Remove power window switch from door panel. Connect power window switch to door harness. Raise glass up as far as possible and hold against glass run channel. Loosen roller guide bolts. See Fig 1 .
- Adjust glass parallel to glass run channel. Tighten roller guide bolts. Ensure glass moves smoothly. If necessary, lower glass, adjust front and rear lower channel. Raise glass and check for gaps. Ensure glass contacts glass run channel evenly. Check for water leaks.
