Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

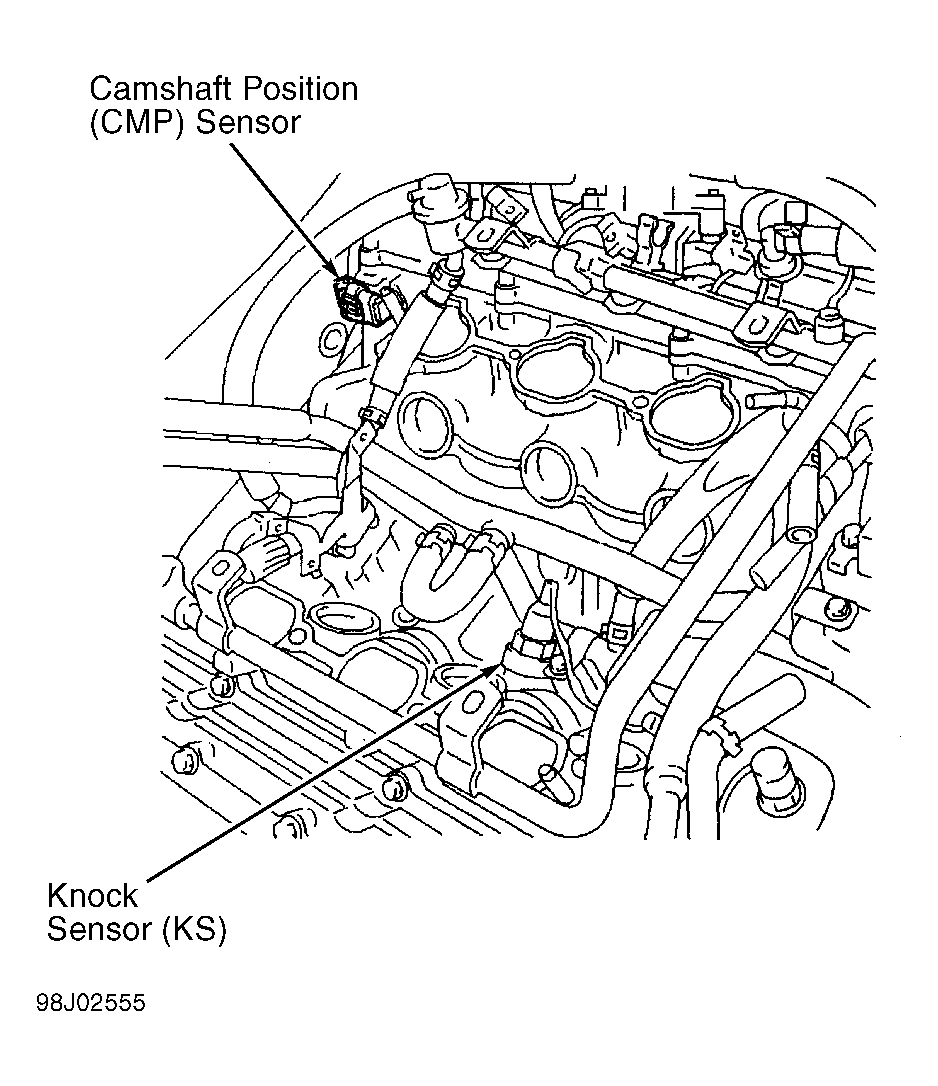

Fig 1: Engine Compartment

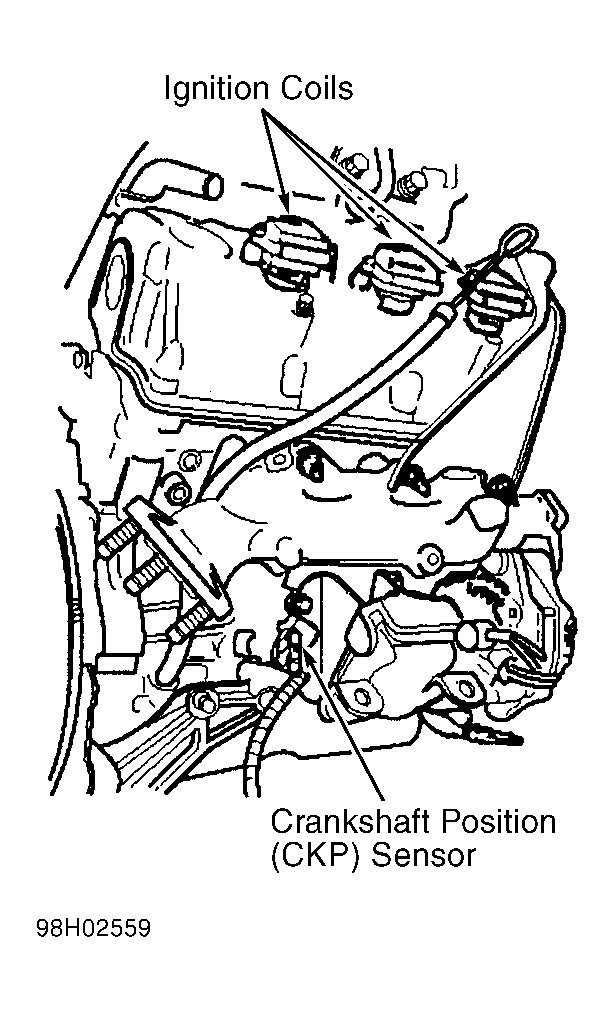

Fig 2: Top Of Engine

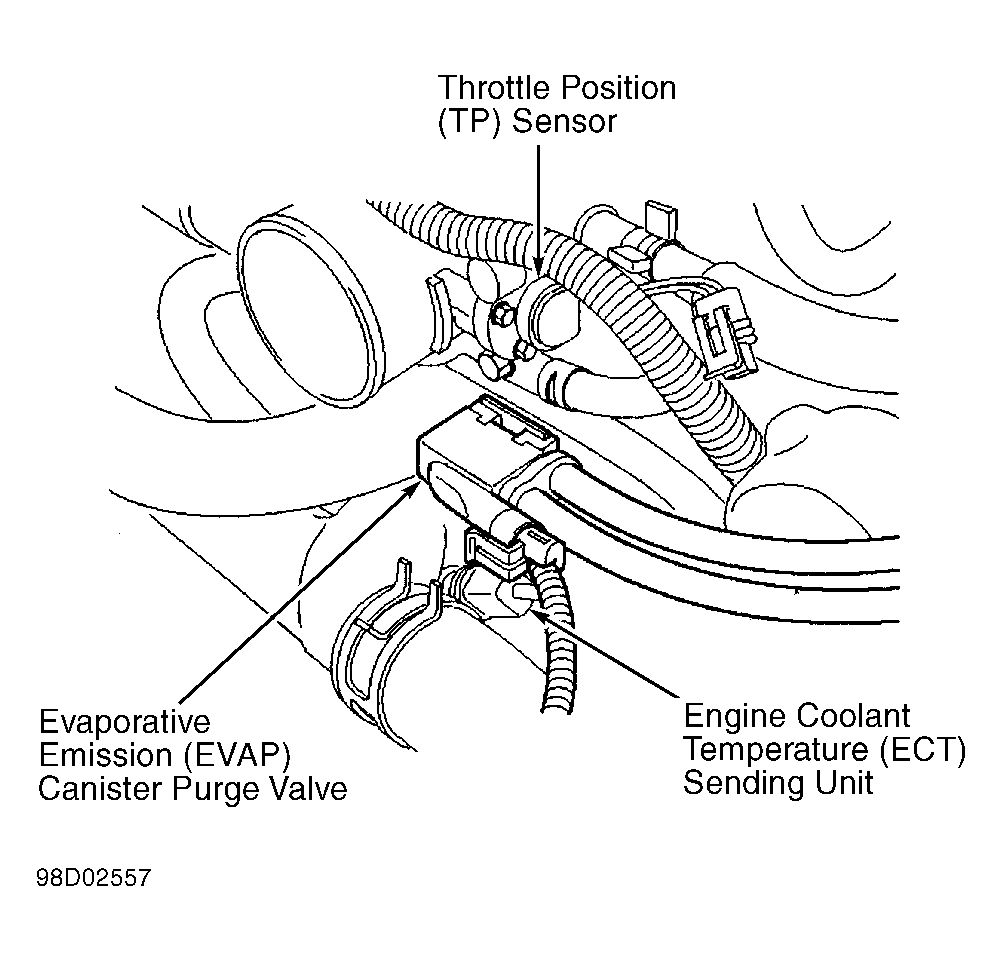

Fig 3: Front Of Engine

Fig 4: Right Side Of Engine

Fig 5: Left Side Of Dash

Fig 6: Center Of Dash
