Home › Isuzu › 2000 › Rodeo LS, 2.2 D › Repair and Diagnosis › Engine Performance › System › Engine Controls - Self-Diagnostics - 2.2L › Diagnostic Trouble Code Identification › DTC P0123: TP Sensor Circuit High Input › Notes

DTC P0123: TP Sensor Circuit High Input: Notes

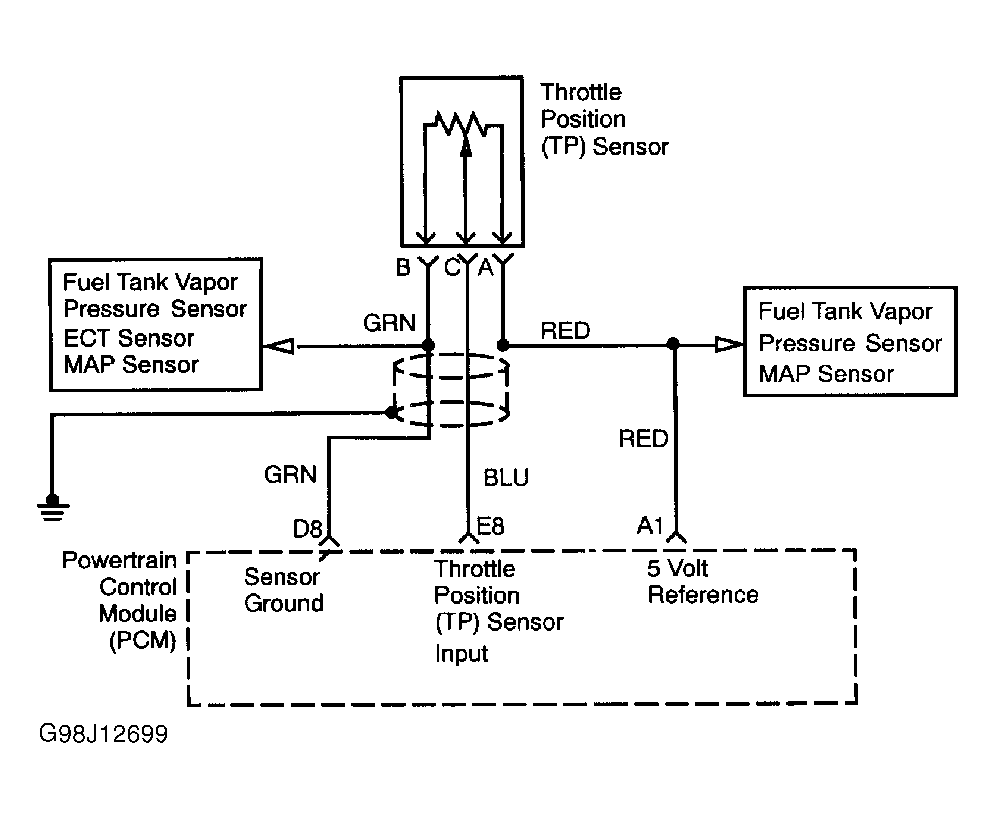

NOTE: Use illustration for circuit reference. See Figure.
