Transfer Case: Notes

NOTE: Transfer case components differ slightly between A/T and M/T applications. Refer to illustration for component identification during overhaul. See Fig 1.

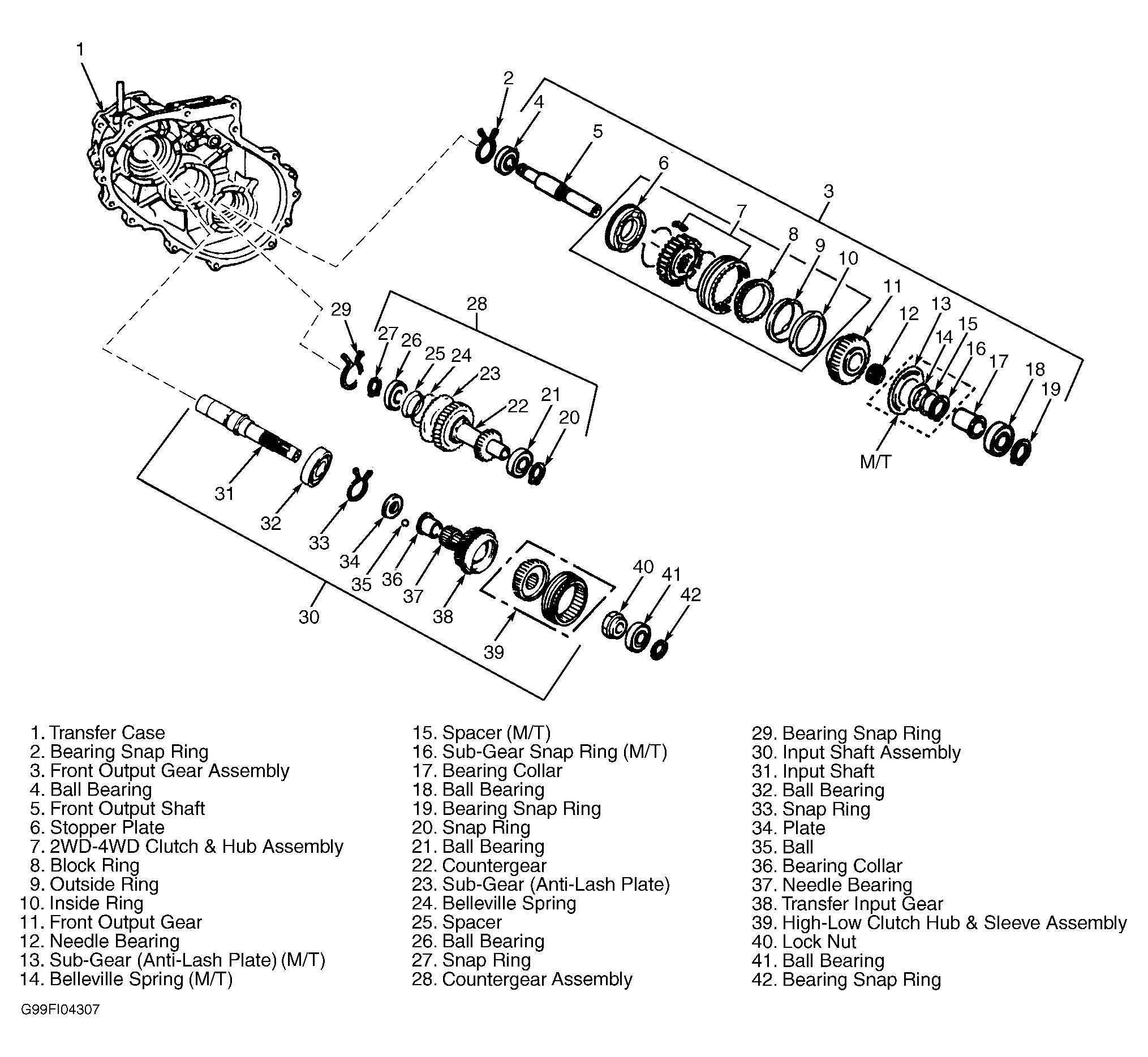

Fig 1: Exploded View Of Transfer Case Components
G99F04307Courtesy of ISUZU MOTOR CO.
