Body Dimension
›
Front Section
Front Section

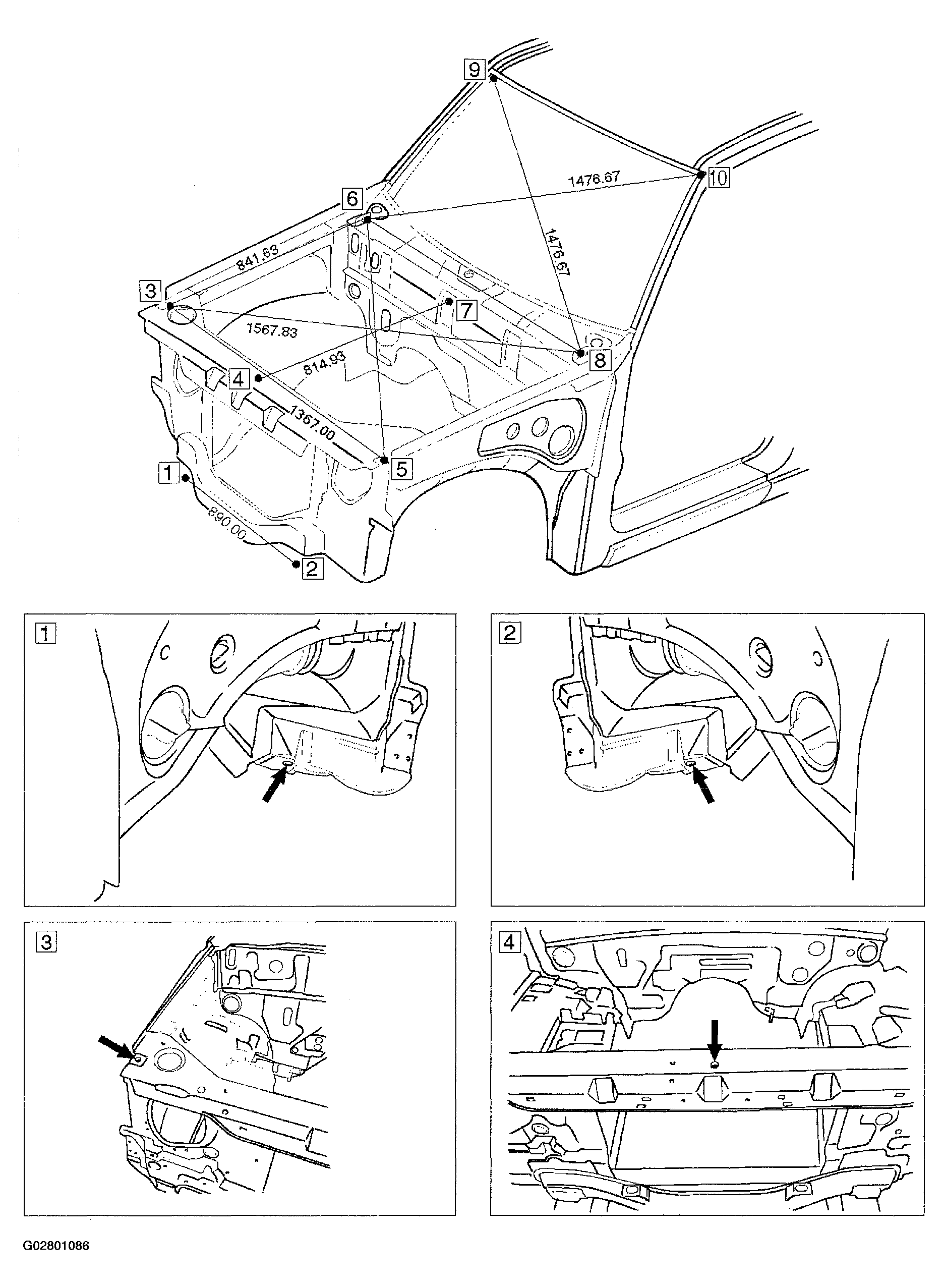

Fig 1: Identifying Front Section Dimensions (1 Of 2)
Courtesy of ISUZU MOTOR CO.

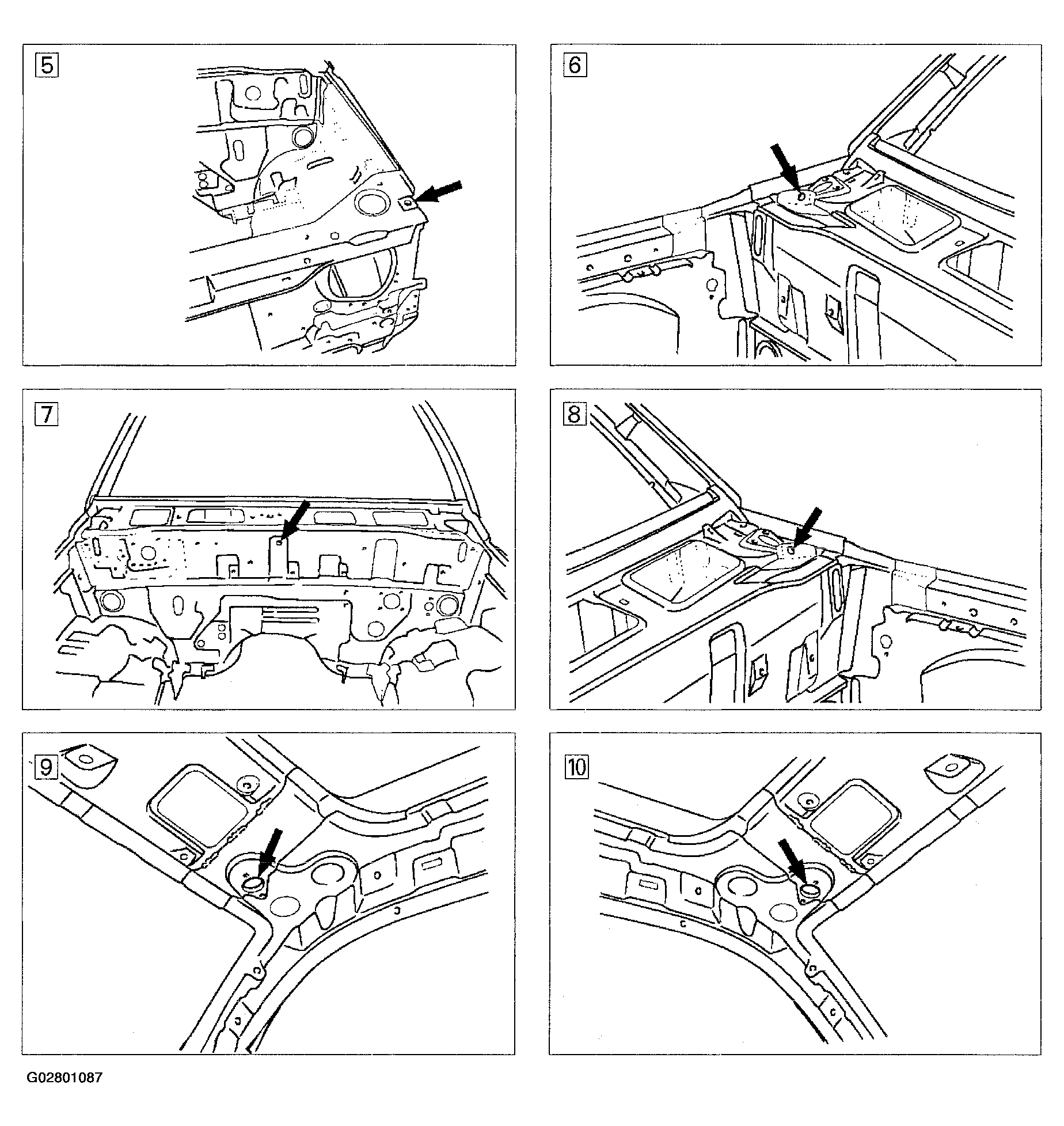

Fig 2: Identifying Front Section Dimensions (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
