Body Dimension
›
Upper Body
Upper Body

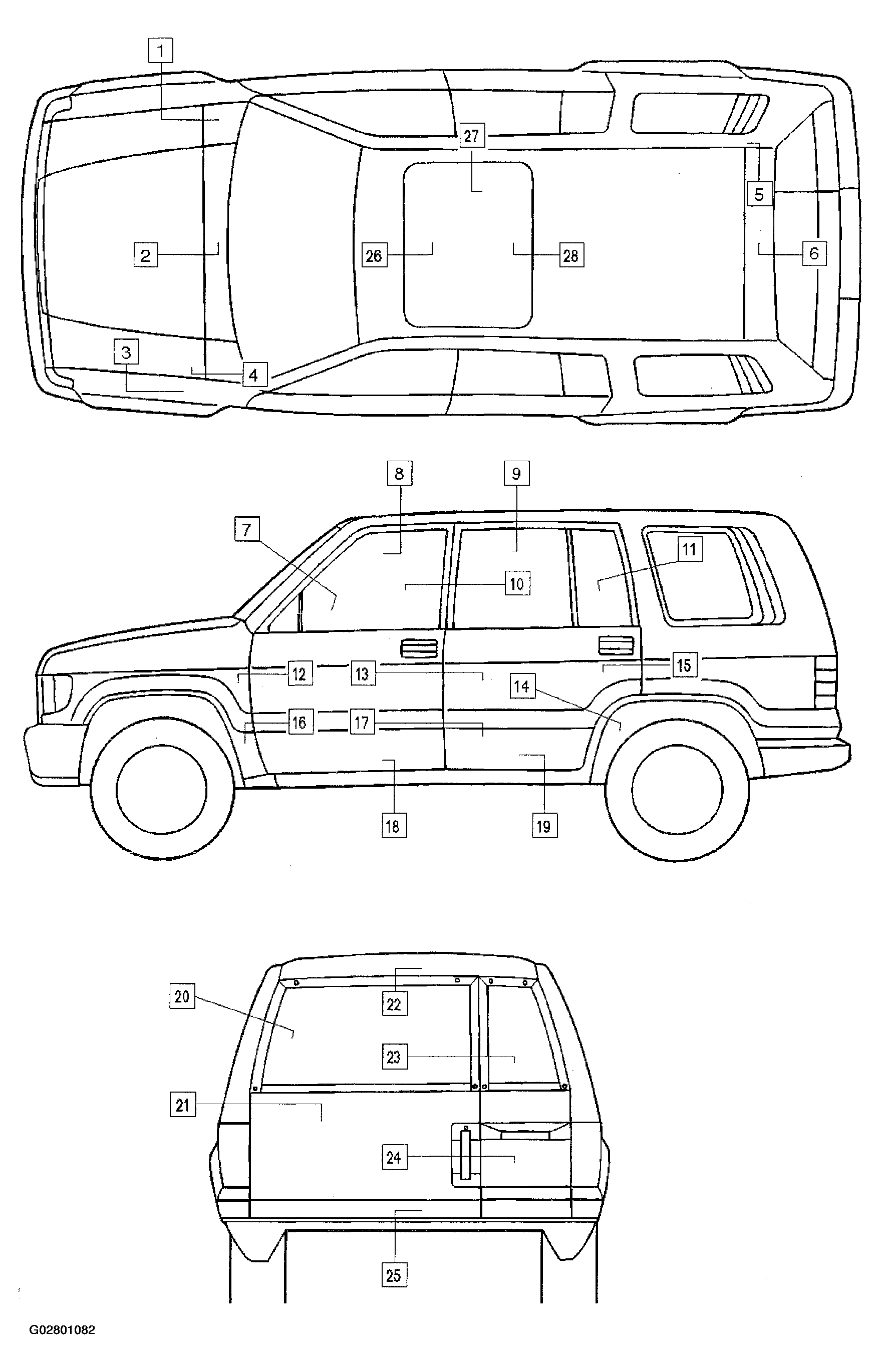

Fig 1: Identifying Upper Body Dimensions (1 Of 4)
Courtesy of ISUZU MOTOR CO.

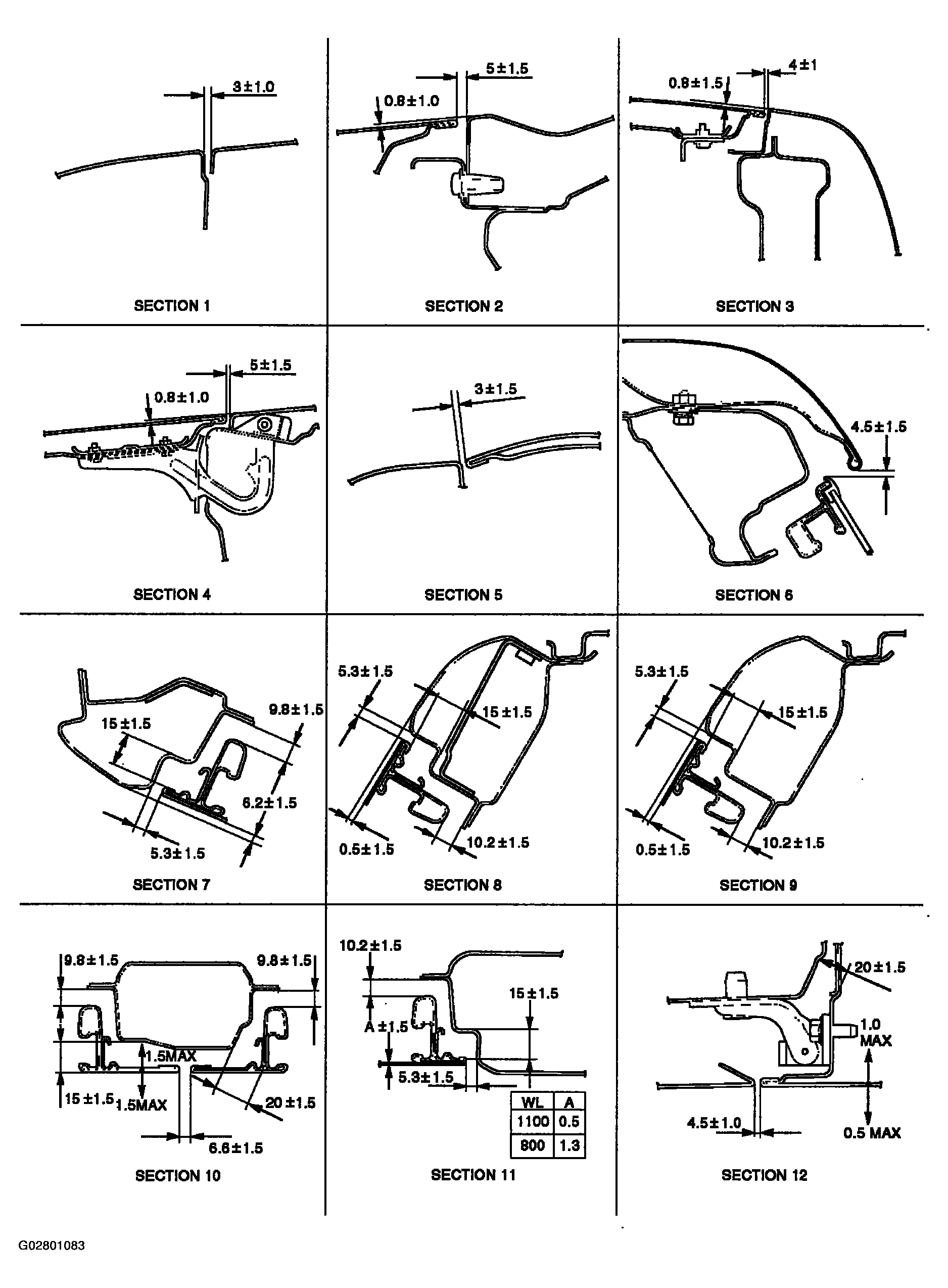

Fig 2: Identifying Upper Body Dimensions (2 Of 4)
Courtesy of ISUZU MOTOR CO.

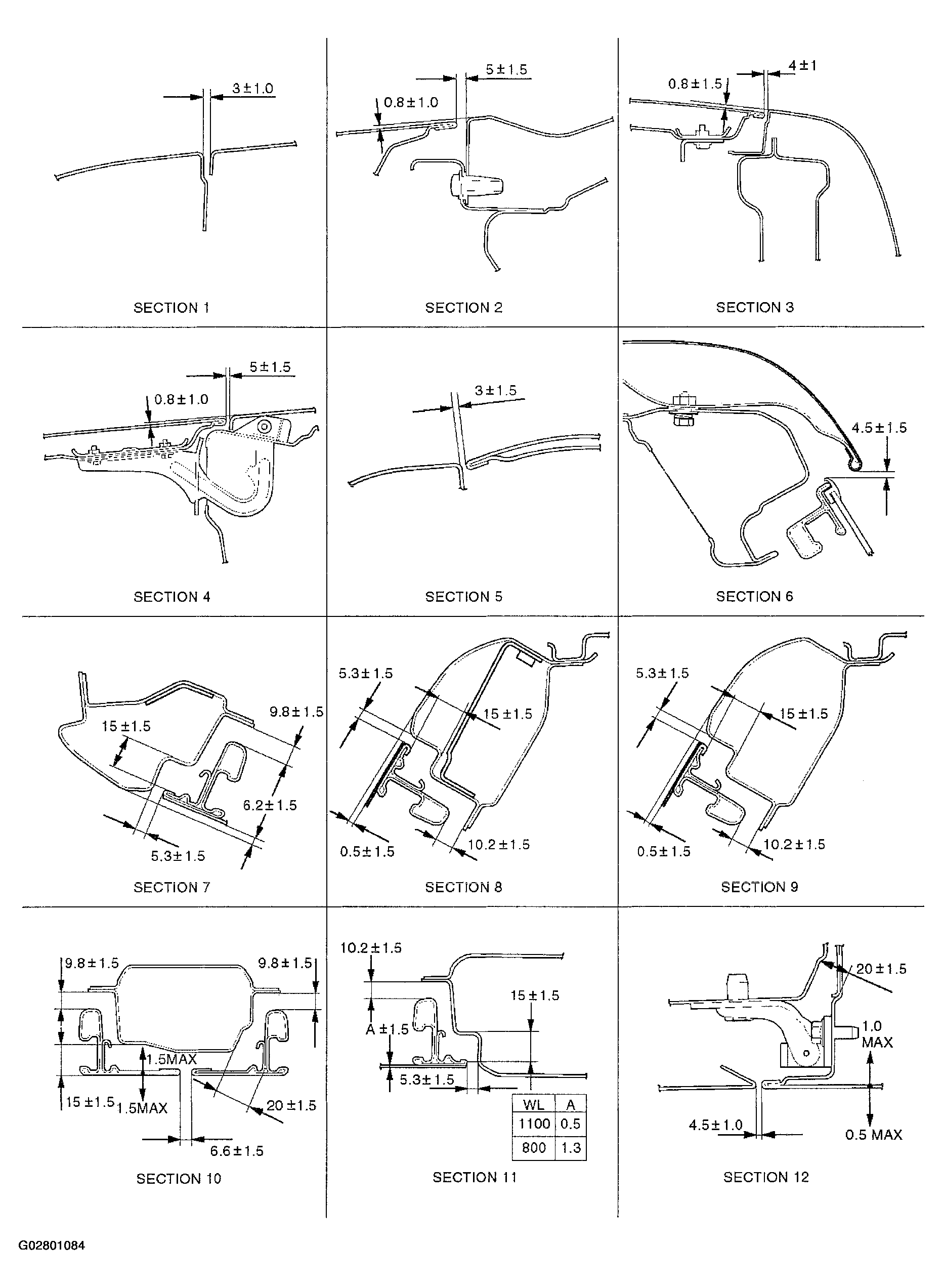

Fig 3: Identifying Upper Body Dimensions (3 Of 4)
Courtesy of ISUZU MOTOR CO.

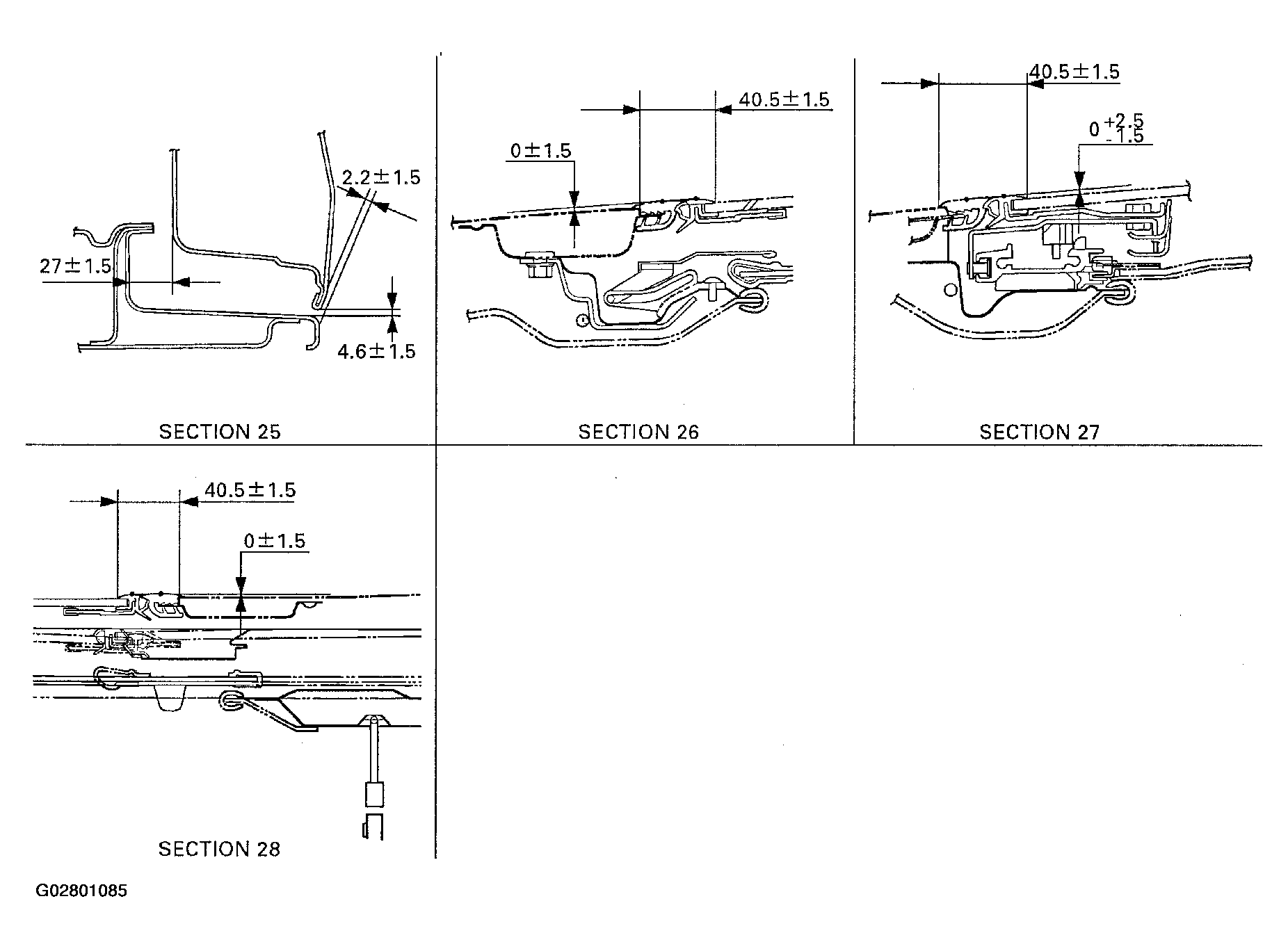

Fig 4: Identifying Upper Body Dimensions (4 Of 4)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
