Cross Beam Assembly
›
Parts Location
Parts Location

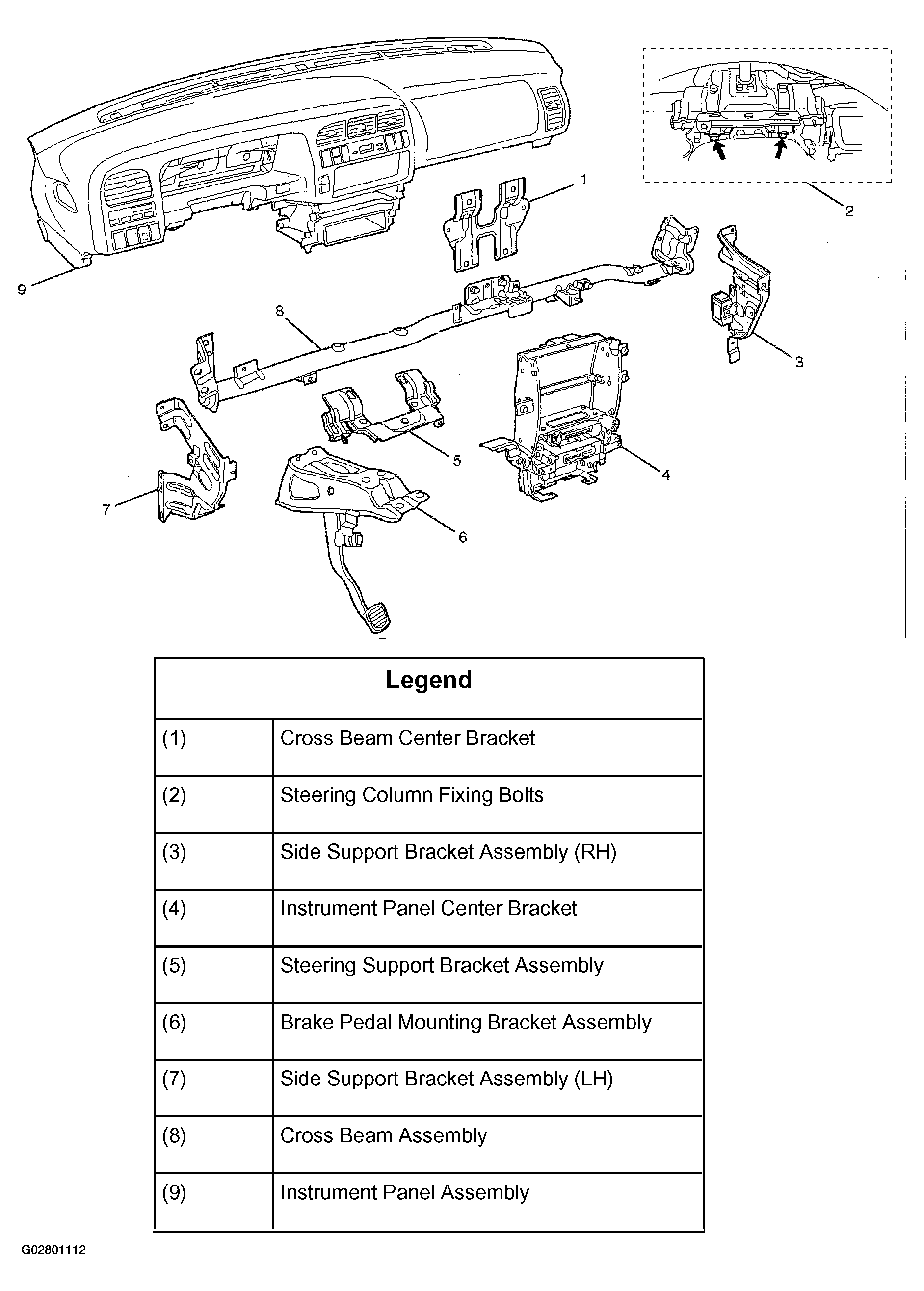

Fig 1: Locating Cross Beam And Related Components
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
