Front Bumper Slider Bracket: Removal

1. Remove the Front bumper.
   • Refer to FRONT BUMPER  .
2. Remove the three nuts (1) and draw out the slider bracket (2).

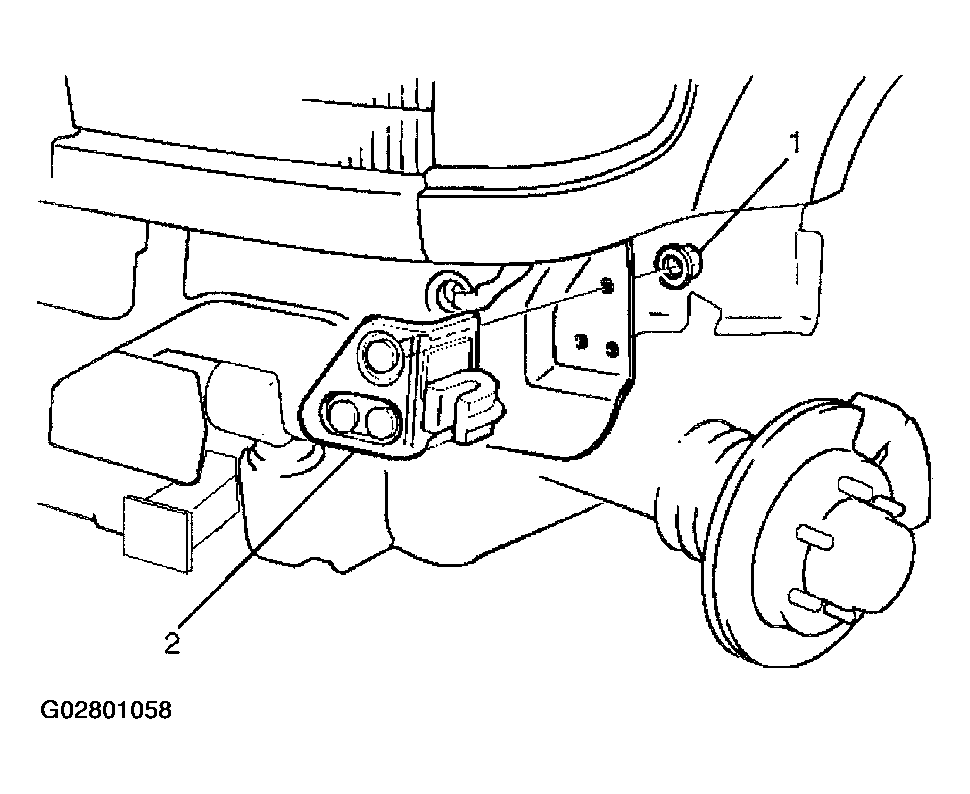

Fig 1: Removing Three Nuts And Slider Bracket

Courtesy of ISUZU MOTOR CO.
