Front Door Weatherstrip: Removal

  1. Remove check arm pin.
  2. Remove front door weatherstrip.
    • Pull the weatherstrip (1) out from the door frame.

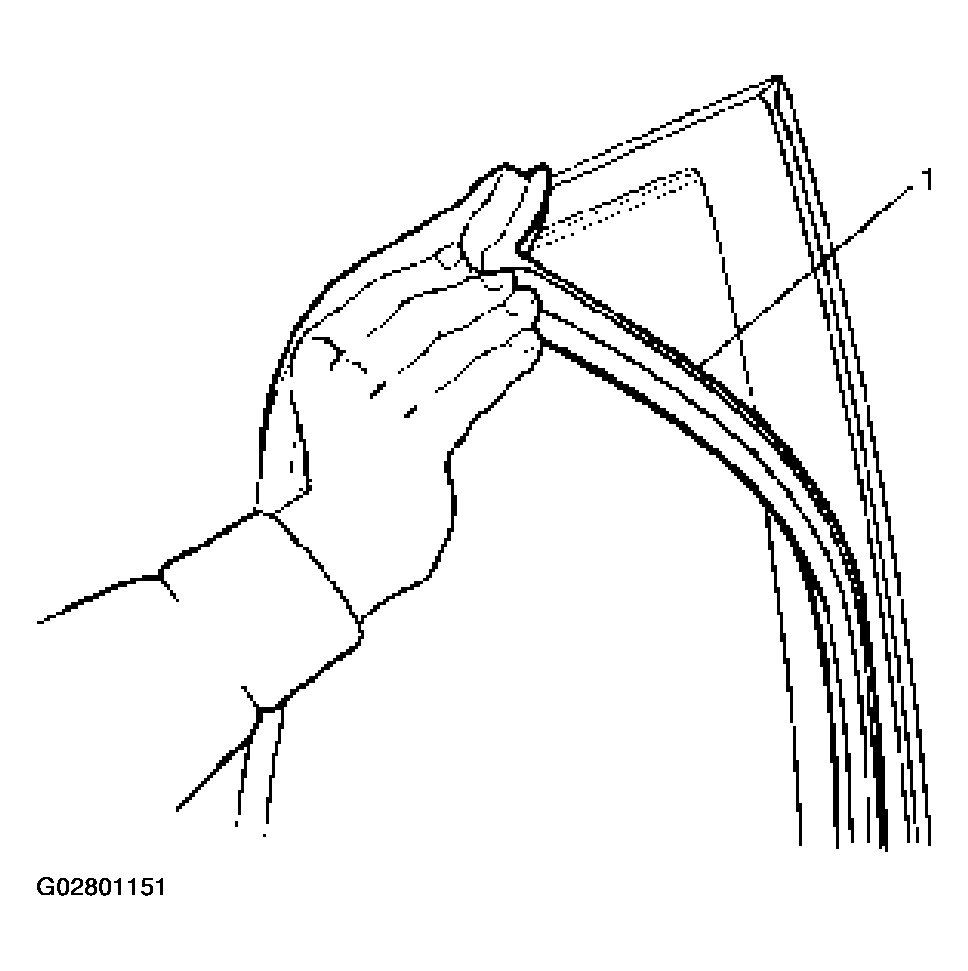

      Fig 1: Pulling Weatherstrip Out From Door Frame
      G02801151Courtesy of ISUZU MOTOR CO.
    • Carefully remove the weatherstrip (2) from the door panel.

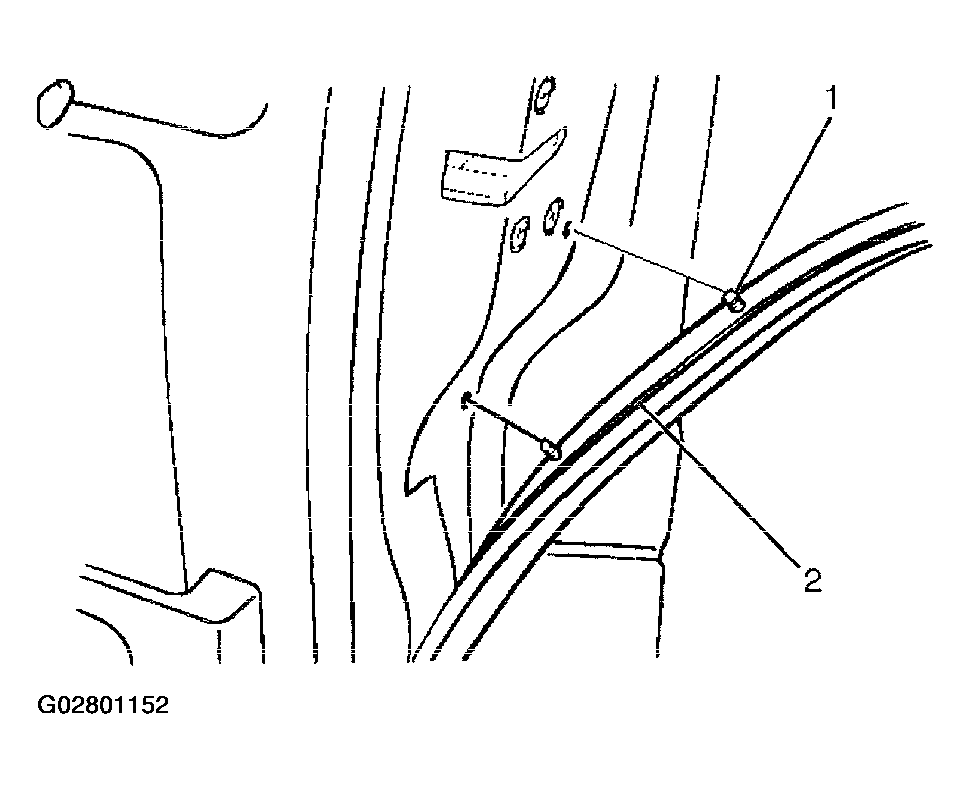

    Fig 2: Removing Weatherstrip From Door Panel
    G02801152Courtesy of ISUZU MOTOR CO.
