FixVault
Home
›
Isuzu
›
2000
›
Trooper S, 4WD, Part Time
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Body Structure
›
Tailgate Assembly (LH)
›
Parts Location
Parts Location

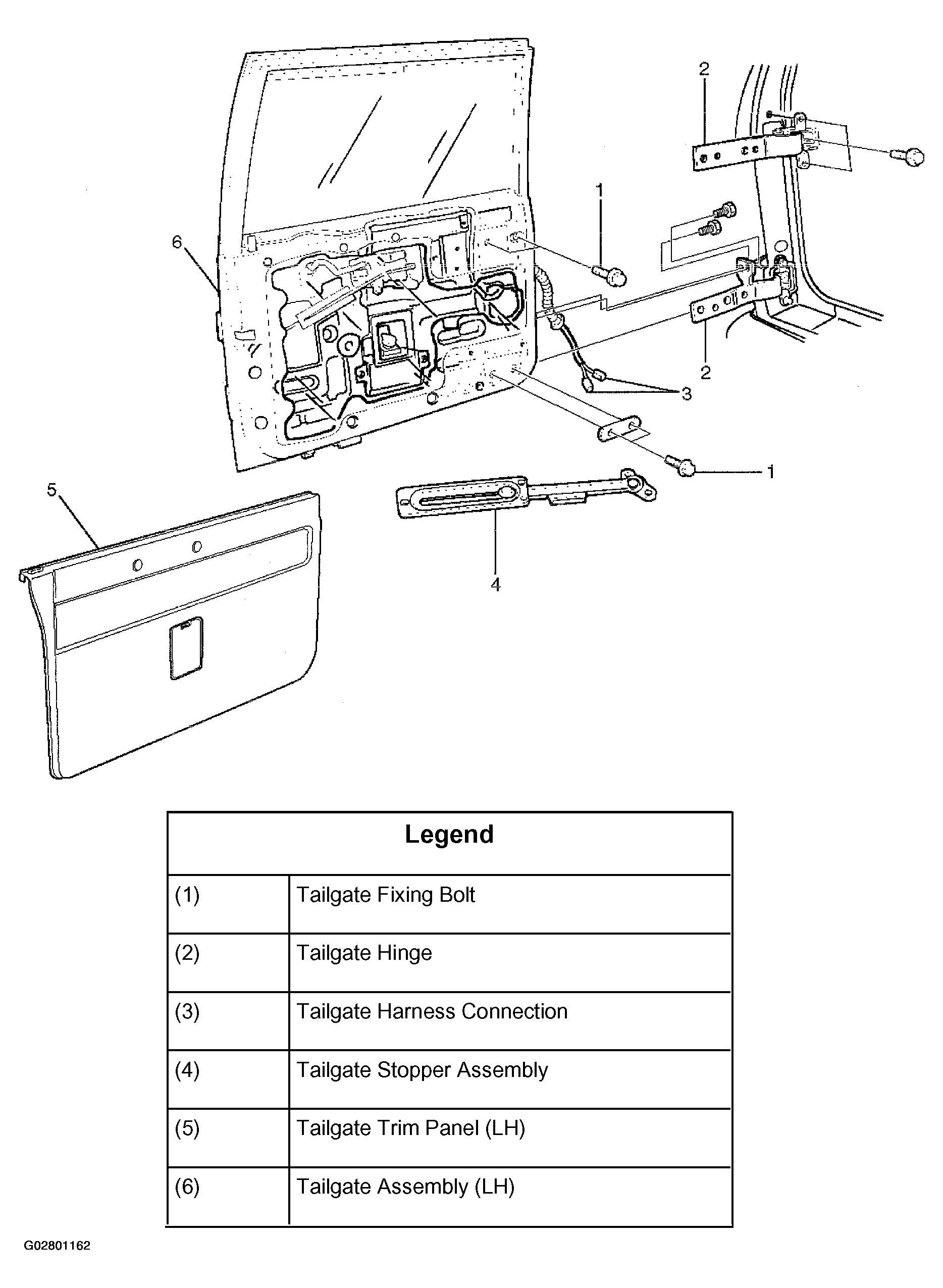

Fig 1: Locating Tailgate Assembly Components (LH)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
