Tailgate Assembly (RH)
›
Parts Location
Parts Location

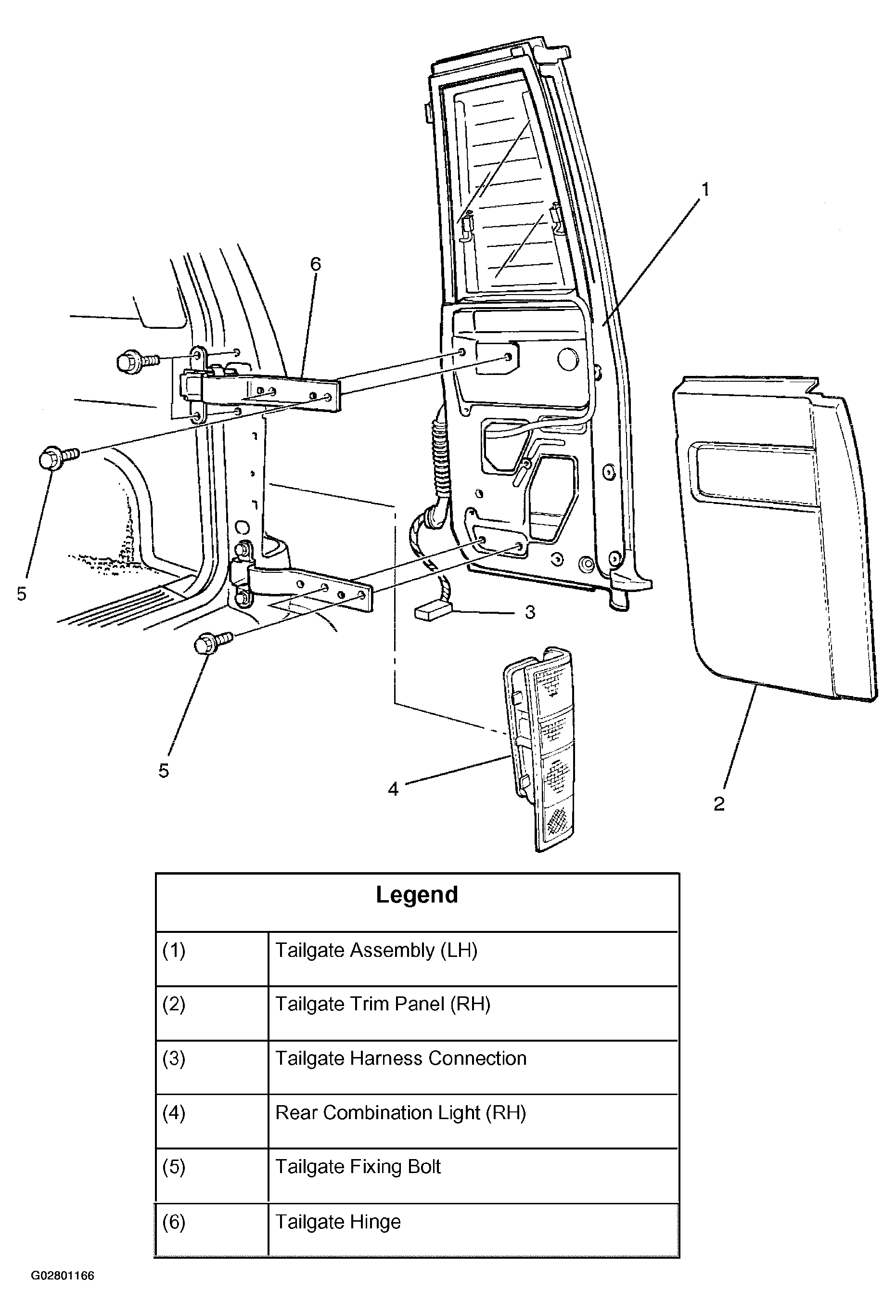

Fig 1: Locating Tailgate Assembly Components (RH)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
