Fuse Box Component Identification
Fuse Box Component Identification
See
Fig 1
for relay layout.

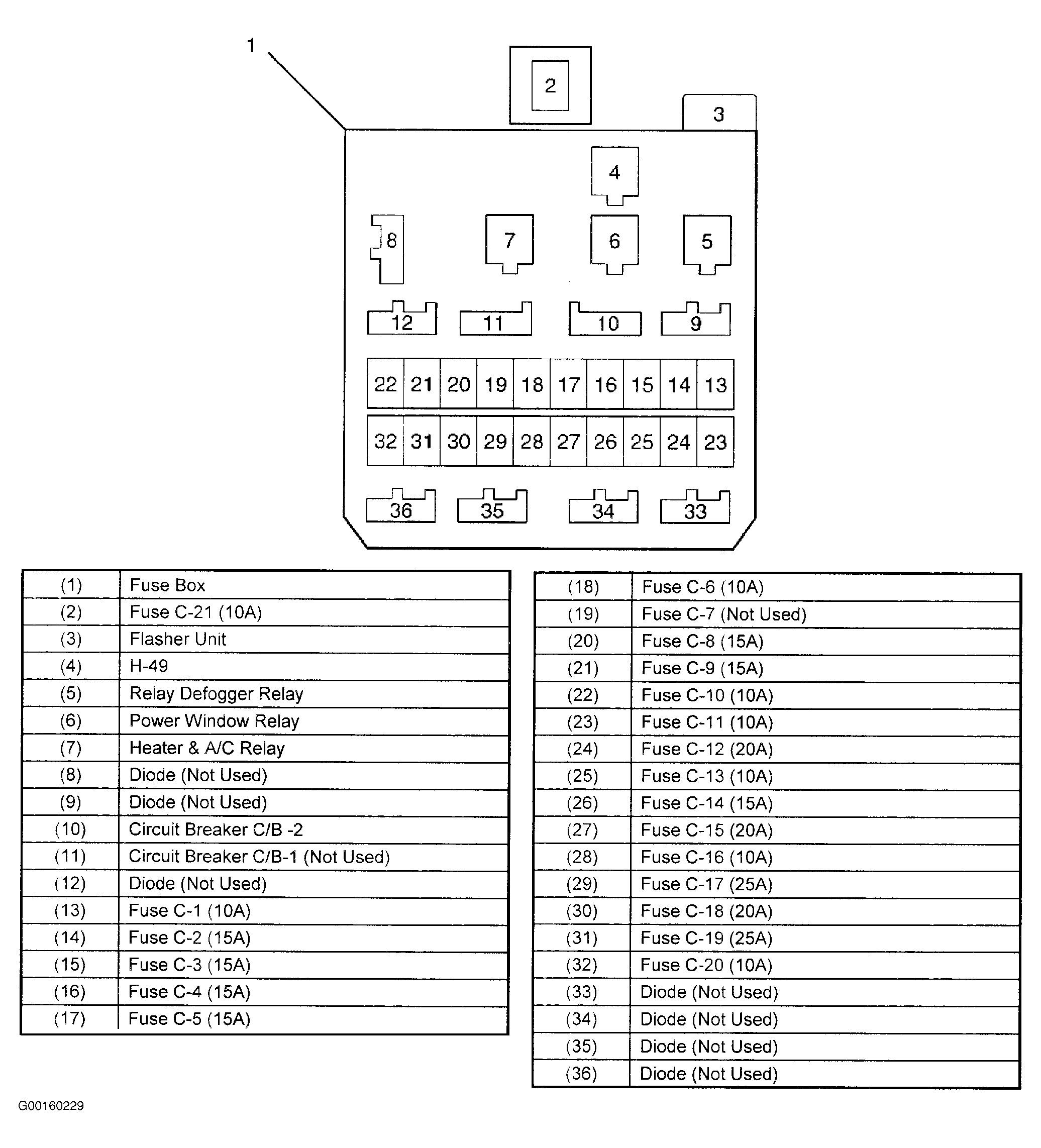

Fig 1: Identifying Fuse Box Component Identification
Courtesy of ISUZU MOTOR CO.
