Valve Guide Replacement

  1. Using Valve guide replacer: J-42899, drive out the valve guide from the combustion chamber side.

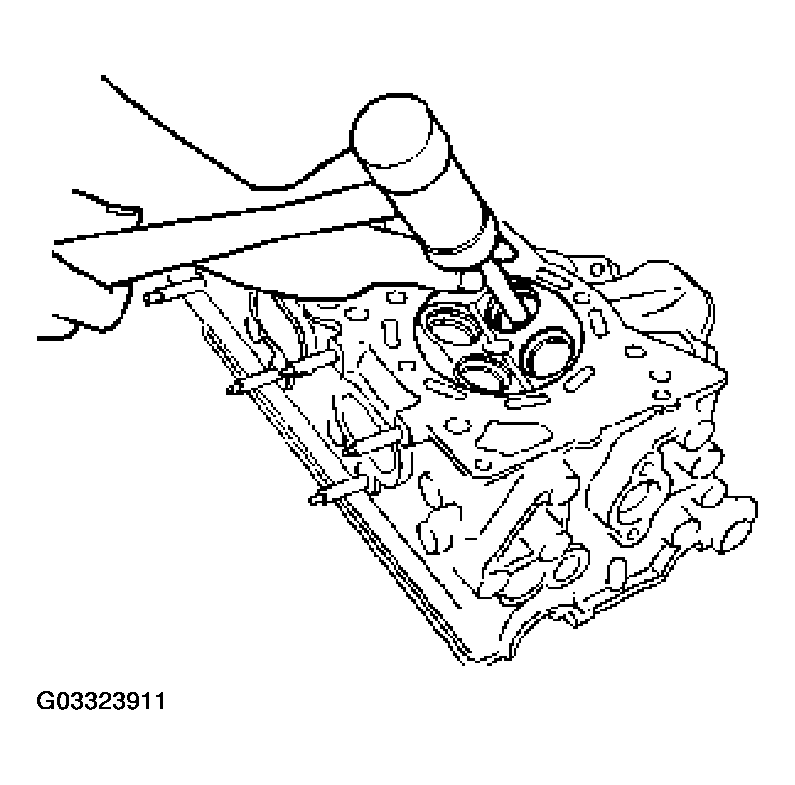

    Fig 1: Driving Out Valve Guide From Combustion Chamber Side
    G03323911Courtesy of ISUZU MOTOR CO.
  2. Apply engine oil to the outside of the valve guide. Using valve guide replacer J-42899, drive in a new valve guide from the camshaft side, and check the valve guide height.

    Valve guide upper end height: 13.0 mm (0.5118 in) (Measured from the cylinder head upper face)

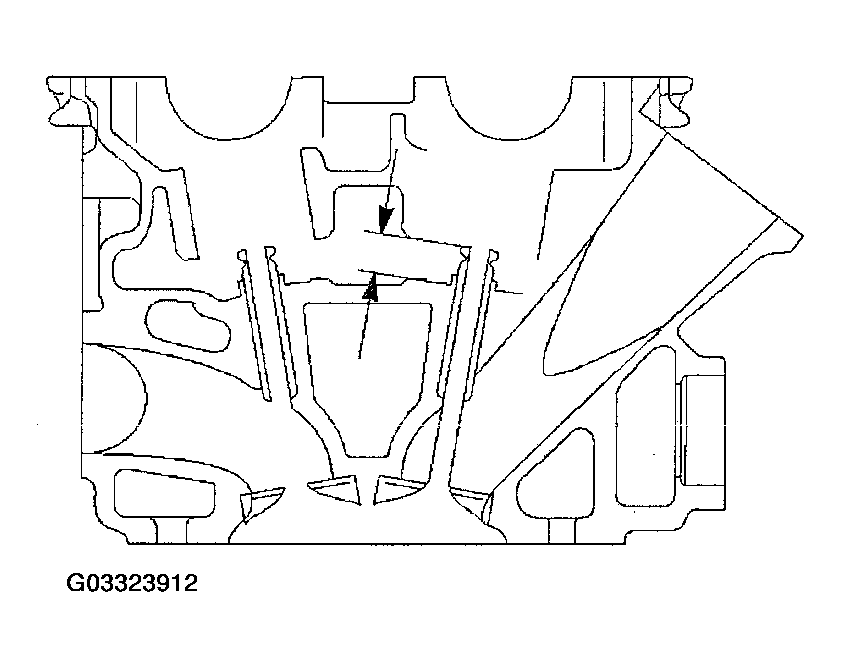

    Fig 2: Identifying Valve Guide Height
    G03323912Courtesy of ISUZU MOTOR CO.
  3. Check the clearance. If the clearance is less than the specified value, ream the inside diameter of valve guide. Using a sharp 6 mm reamer, ream the valve guide to obtain the specified clearance.
