Connector List

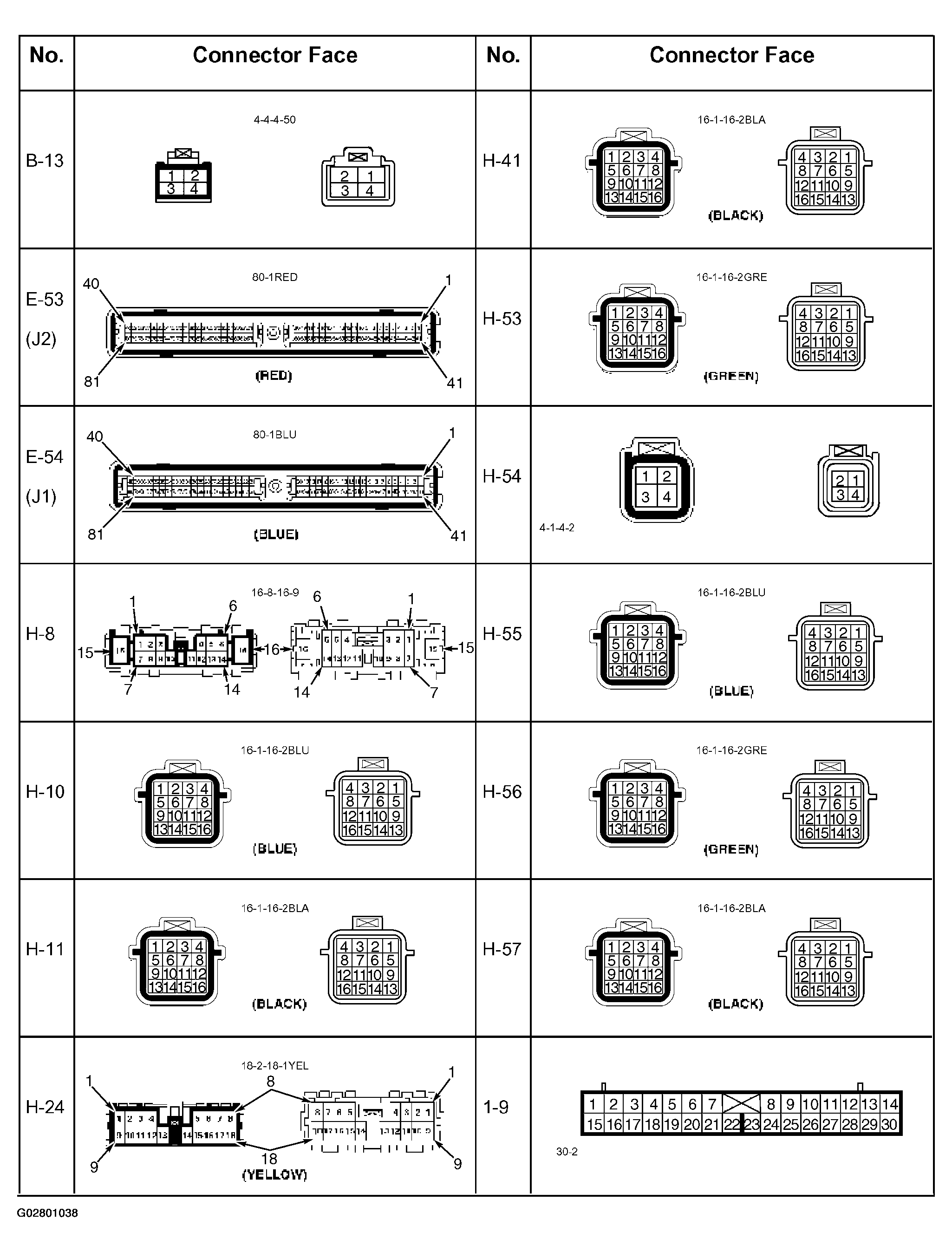

Fig 1: Identifying Harness Connector Terminals (1 Of 2)
G02801038Courtesy of ISUZU MOTOR CO.

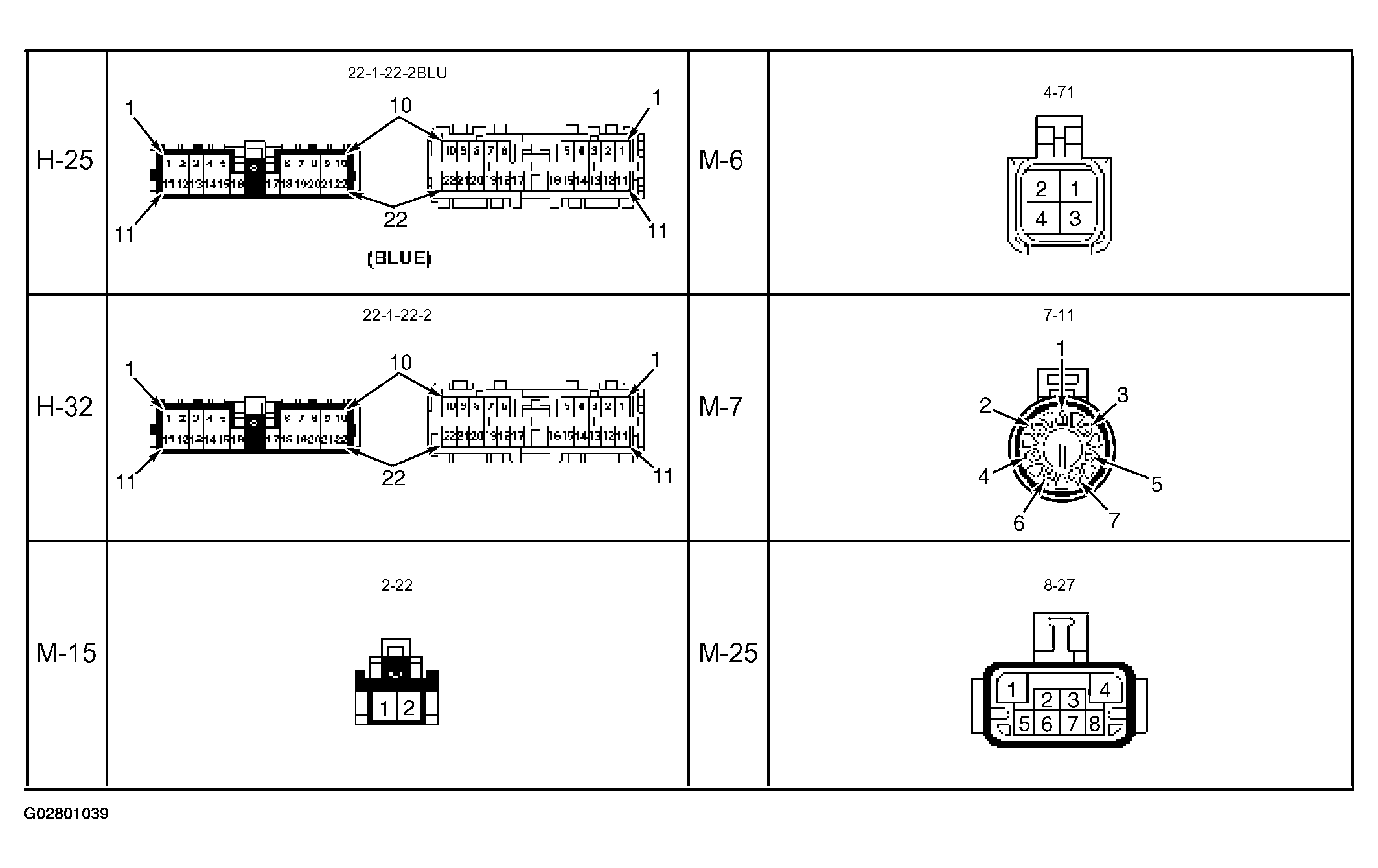

Fig 2: Identifying Harness Connector Terminals (2 Of 2)
G02801039Courtesy of ISUZU MOTOR CO.
