Component Locations

NOTE: For power seat component locations, See Fig 1-Fig 2 .

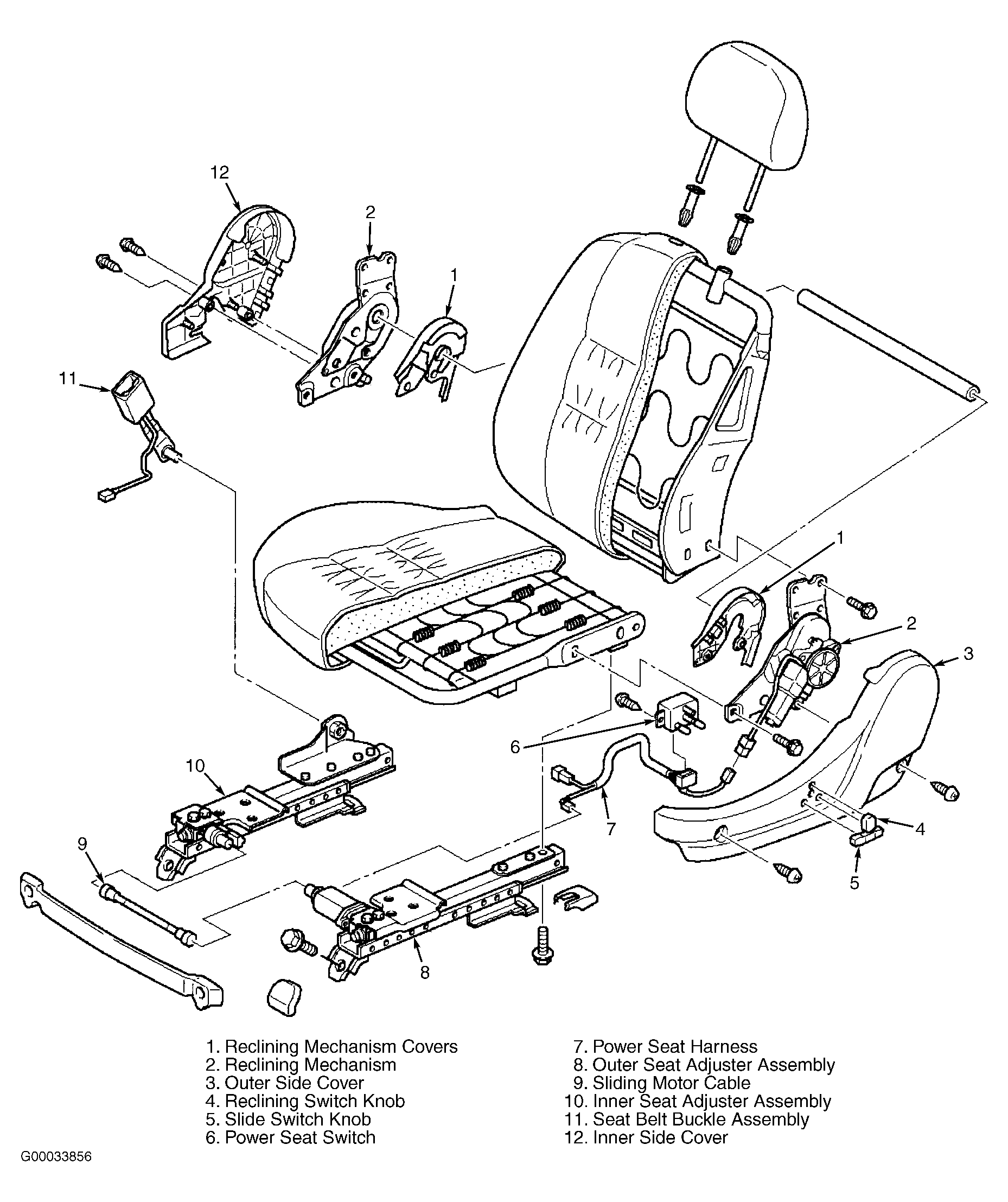

Fig 1: Exploded View Of Power Seat Components (Passport & Rodeo)
G00033856Courtesy of ISUZU MOTOR CO.

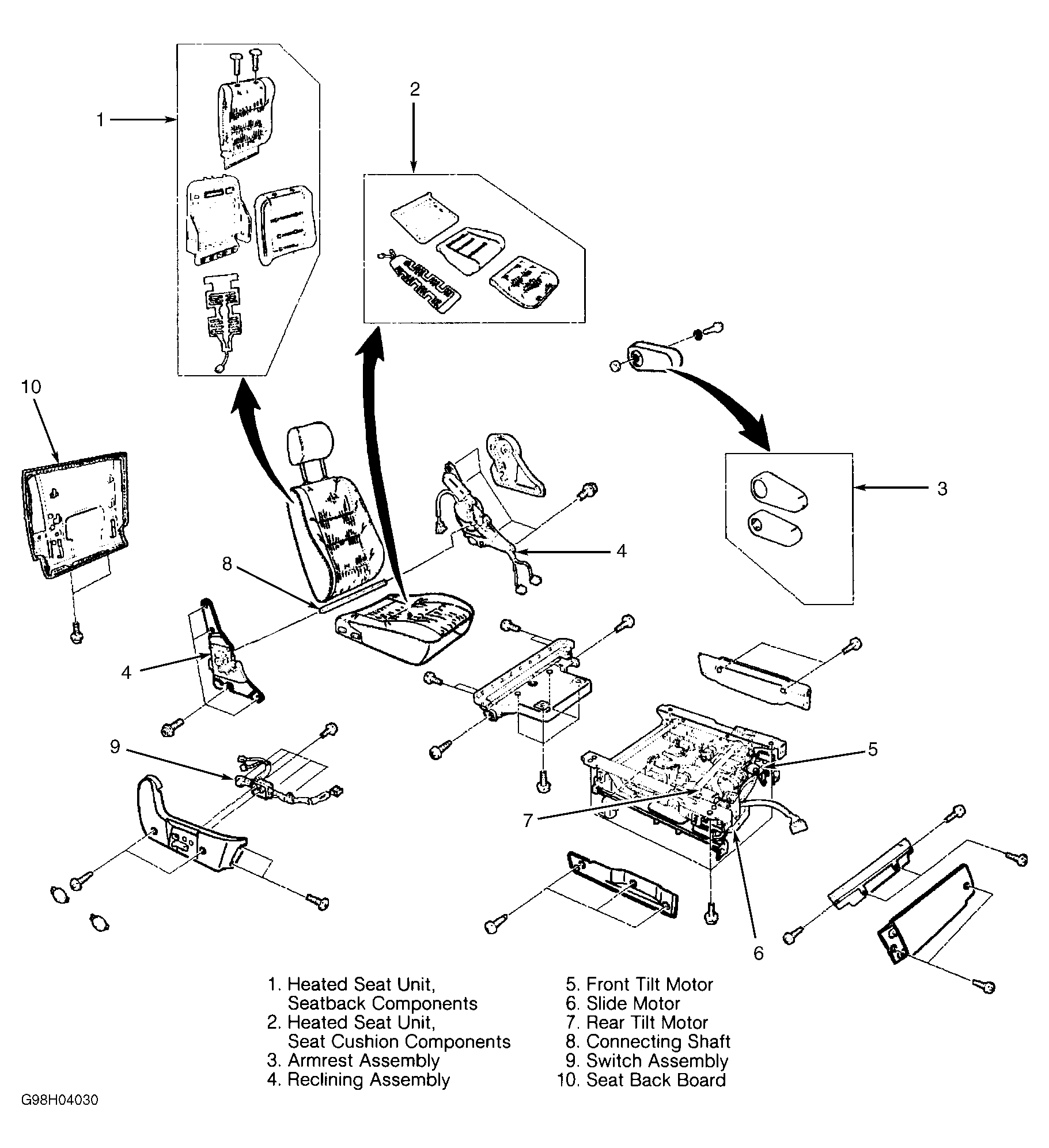

Fig 2: Exploded View Of Power Seat Components (Trooper)
G98H04030Courtesy of ISUZU MOTOR CO.
