Pressure Plate Assembly

The pressure plate assembly consists of the clutch cover, the pressure plate with diaphragm spring. Operating the clutch pedal causes the pressure plate to move in an axial direction to engage and disengage the clutch.

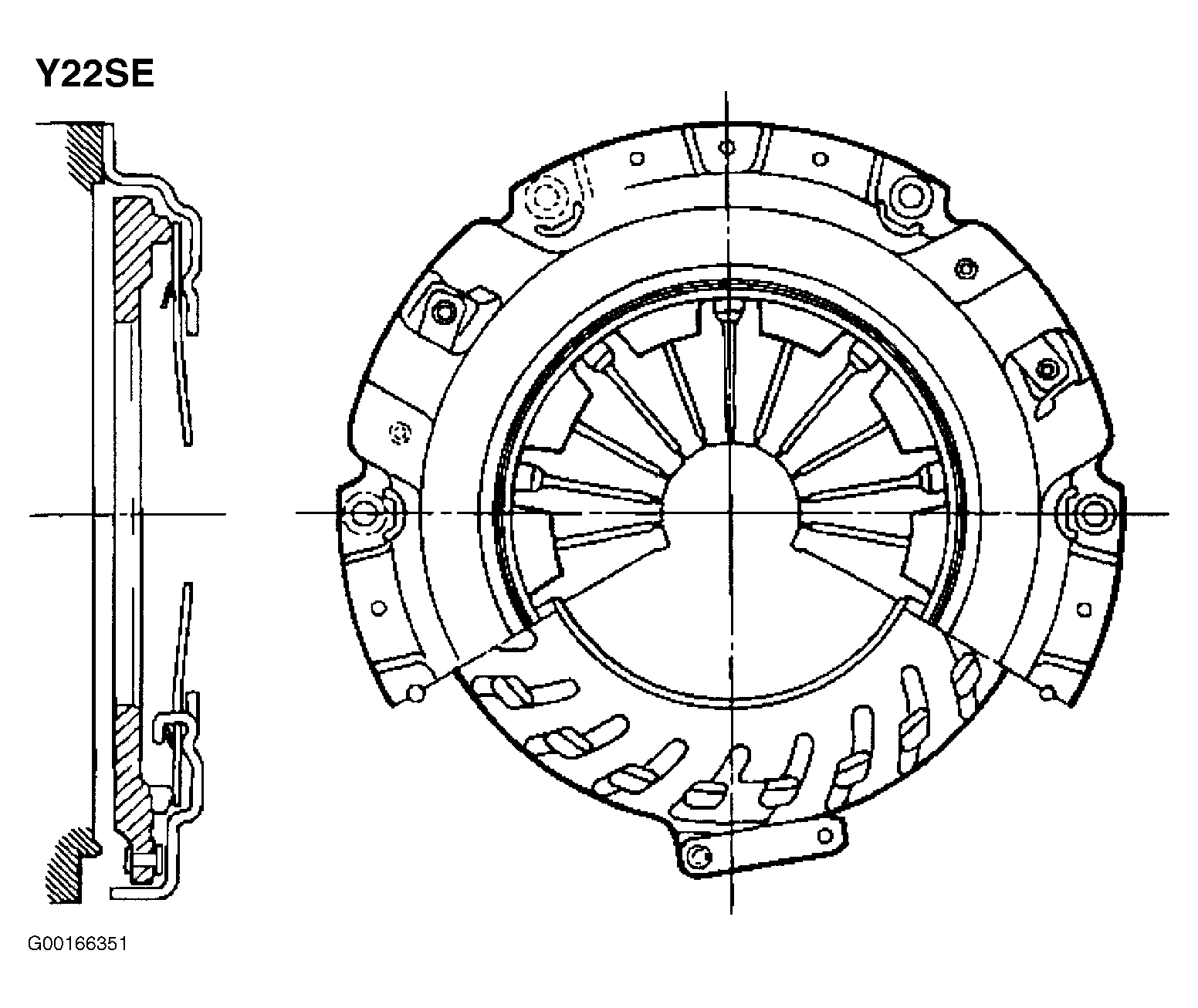

Fig 1: Identifying Pressure Plate Assembly (4-Cylinder)

Courtesy of ISUZU MOTOR CO.

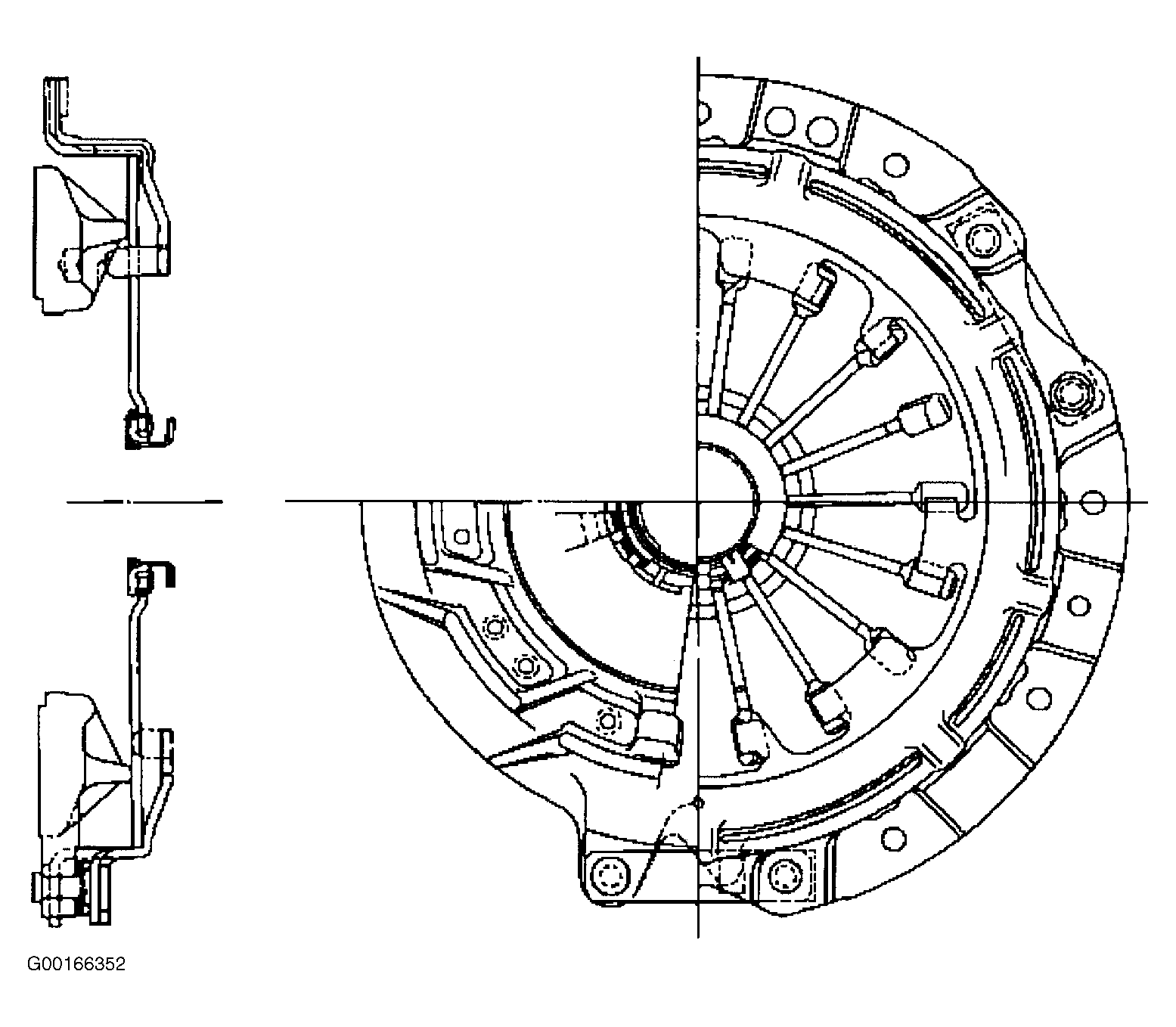

Fig 2: Identifying Pressure Plate Assembly (V6)

Courtesy of ISUZU MOTOR CO.
