Checking Fluid Level

Remove fill plug. See Fig 1 . Check that fluid is full to the bottom of the fill plug hole. Fill as needed if fluid does not meet the bottom of the fill plug hole. Install fill plug. See Fig 1 . Tighten to specification. See TORQUE SPECIFICATIONS  .

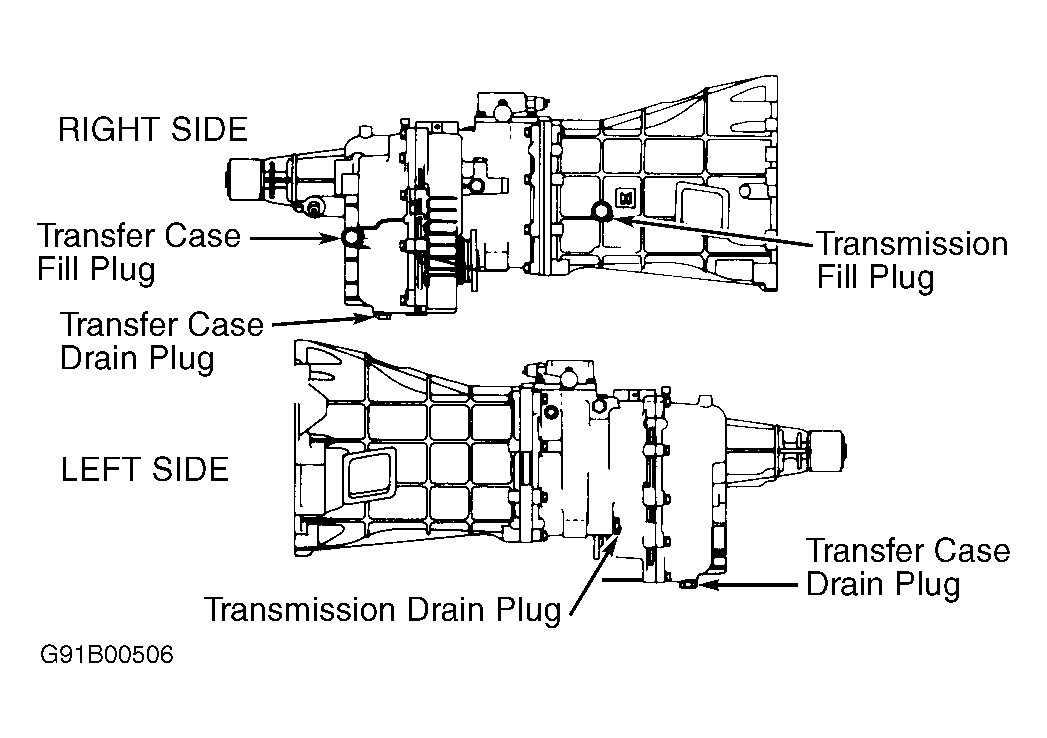

Fig 1: Identifying Manual Transmission Drain & Fill Plugs

Courtesy of ISUZU MOTOR CO.
