Parts Location: Removal

Open the hood.
Support the hood.
Remove the windshield washer nozzle tube.

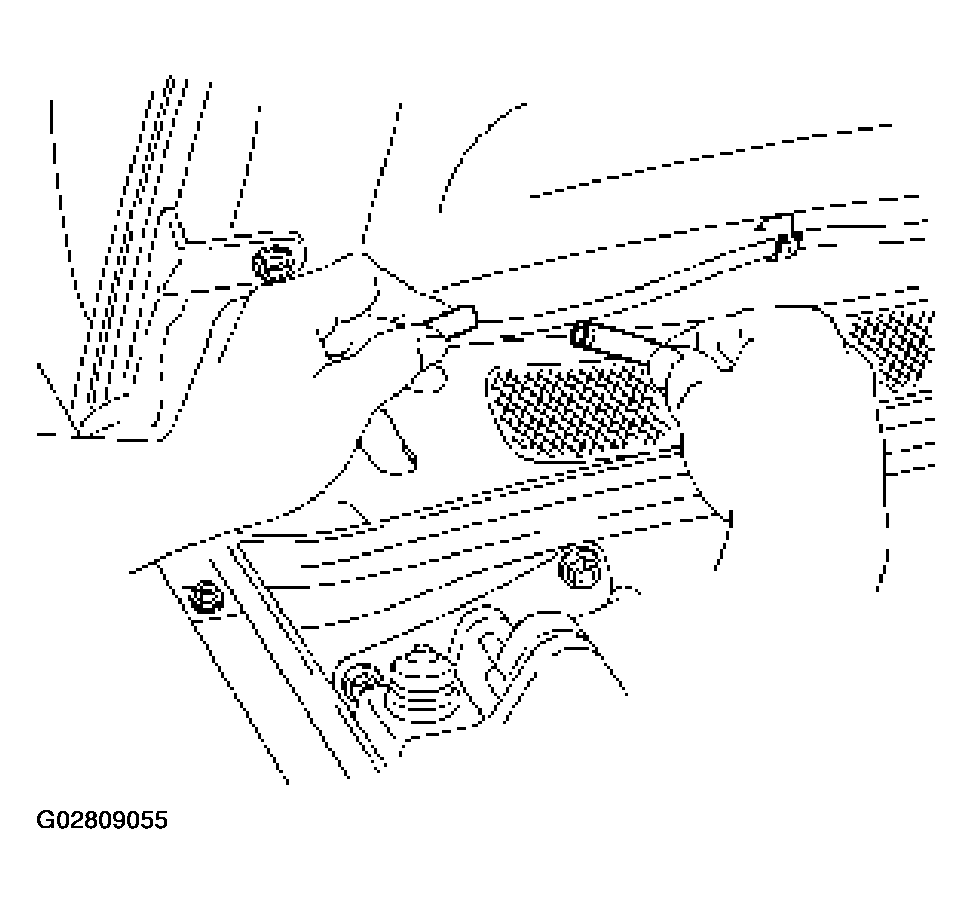

Fig 1: Removing Windshield Washer Nozzle Tube
Courtesy of ISUZU MOTOR CO.
Remove the hood hinge bolts.
- Before removing the hinges from the engine hood, scribe a mark showing location of the hinges to facilitate installation in the original position.

  Fig 2: Marking Hinge Location Before Removing Hood
  Courtesy of ISUZU MOTOR CO.
Remove the engine hood.
