Spare Tire Hanger
›
Parts Location
›
Notes
Parts Location: Notes

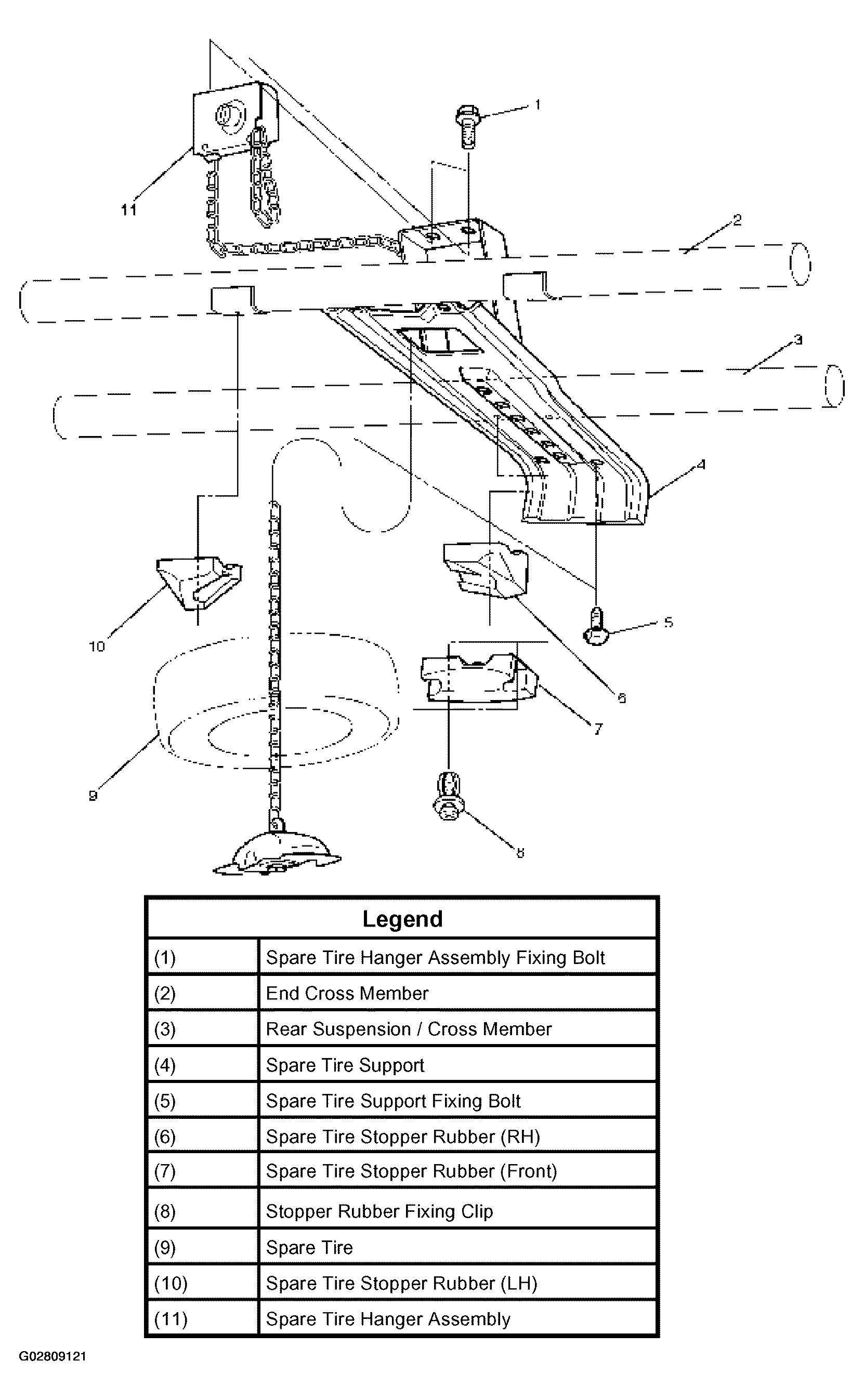

Fig 1: Identifying Parts Location Of Spare Tire Hanger
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
