Rear Accessory Socket: Removal

1. Disconnect the battery ground cable.
2. Remove the quarter trim lower cover.
3. Remove the rear accessory socket (1).
   • Disconnect the connectors (3).
   • Pull out the rear accessory socket from the socket cover (2).

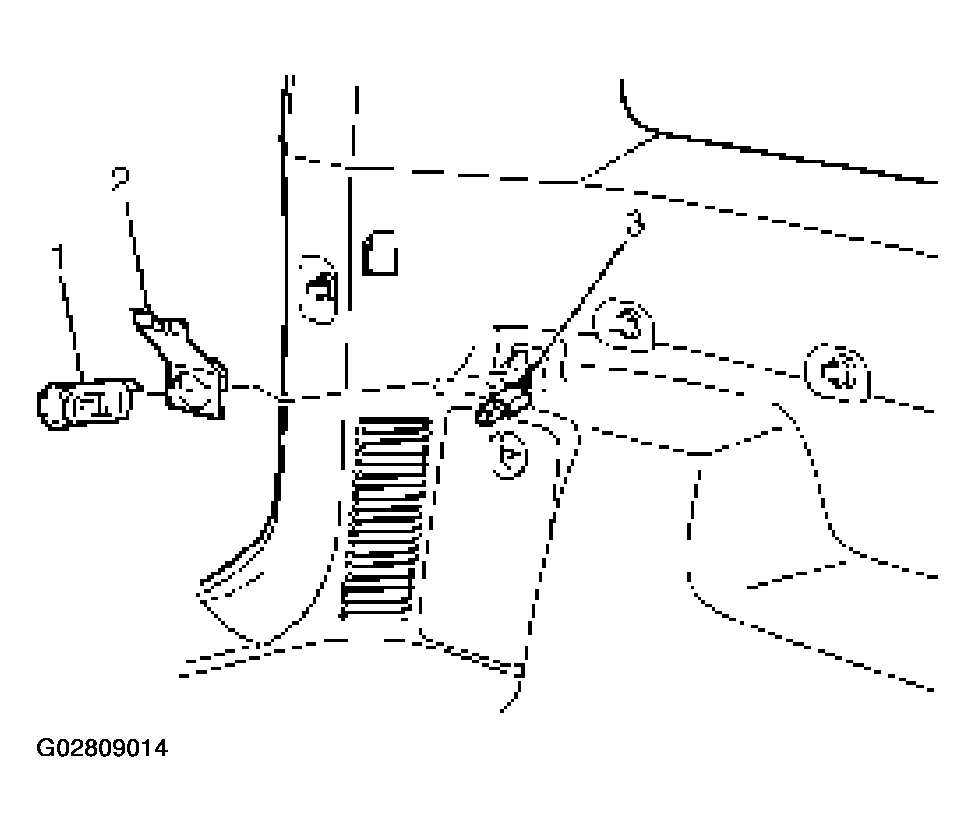

Fig 1: Removing Rear Accessory Socket

Courtesy of ISUZU MOTOR CO.
