Cigarette Lighter: General Description: Removal

Disconnect the battery ground cable.
Remove the center cluster assembly (1).
- Refer to INSTRUMENT PANEL ASSEMBLY .
Remove the cigarette lighter assembly (2).
- Disconnect the connectors.
- Remove the socket (3) and nut (4).

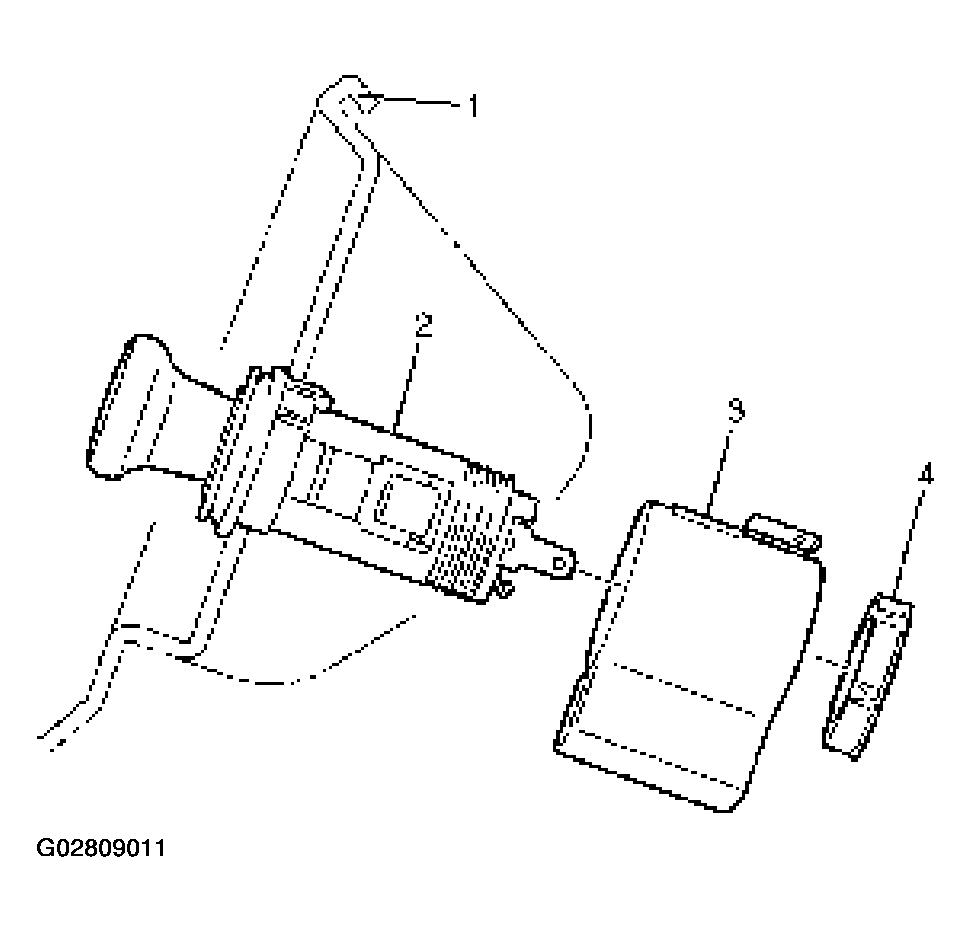

  Fig 1: Removing Cigarette Lighter Assembly
  Courtesy of ISUZU MOTOR CO.
