4L30-E Parts List
›
Center Support Assembly
Center Support Assembly

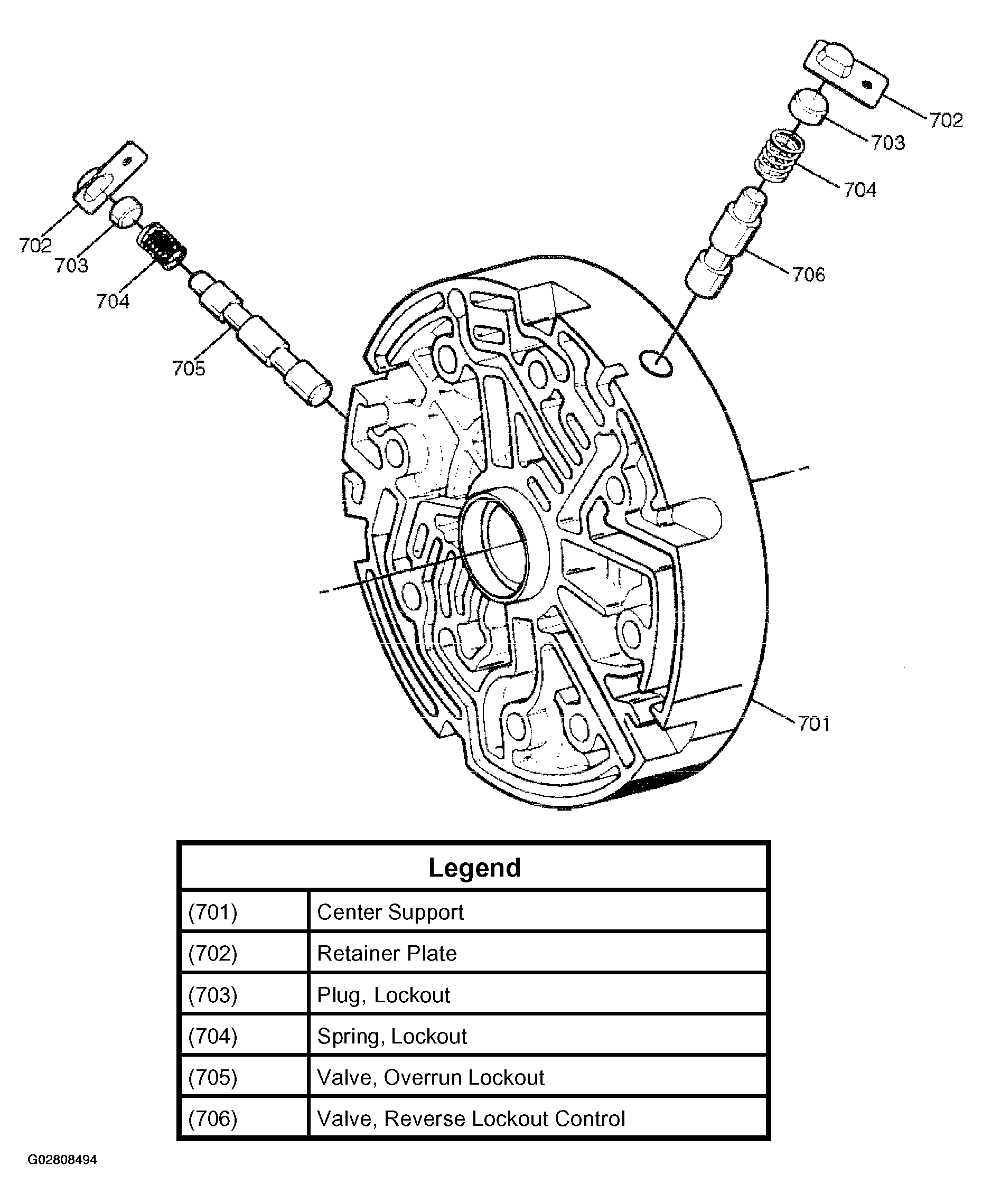

Fig 1: Exploded View Of Center Support Assembly
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
