Internal Components

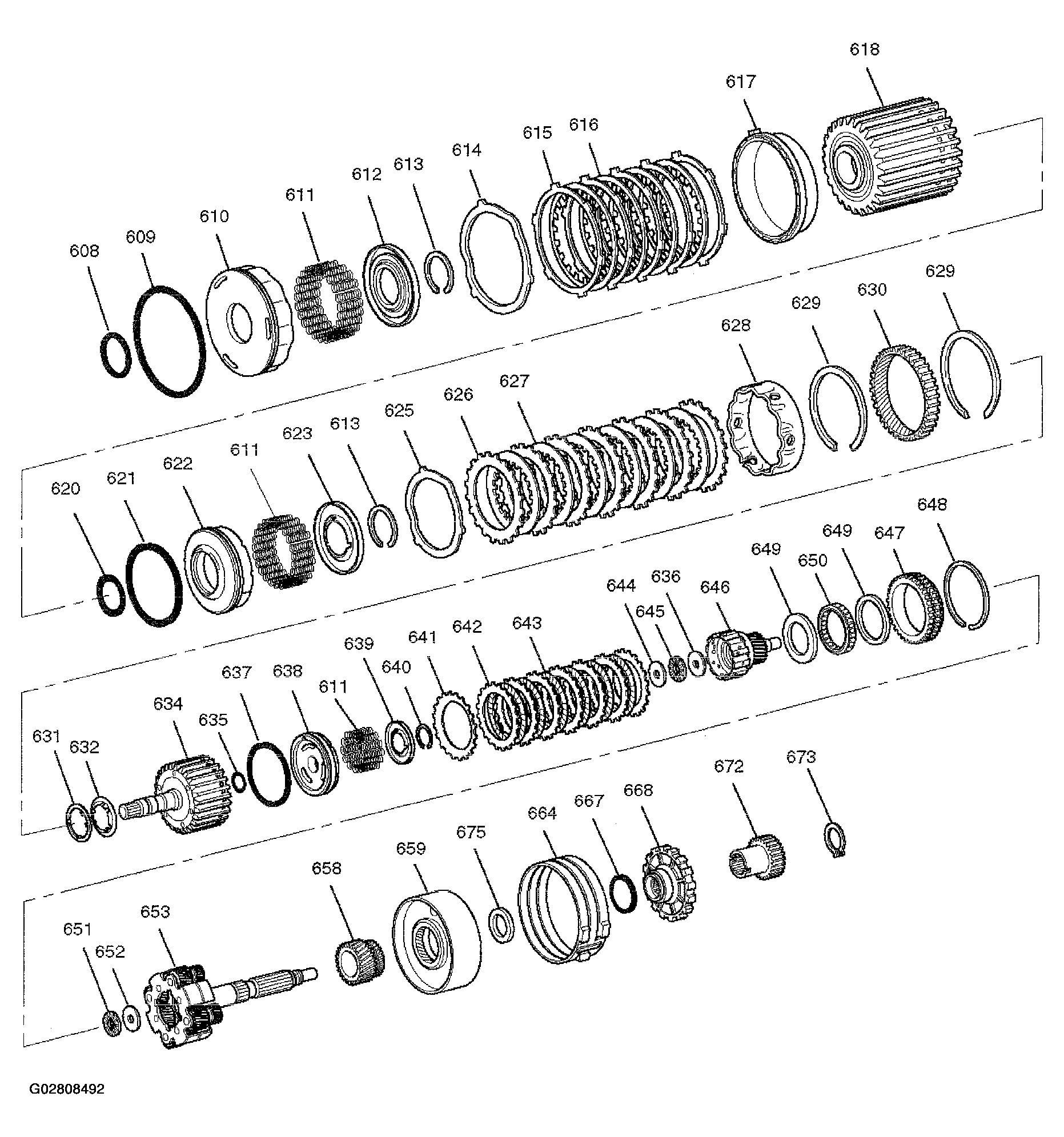

Fig 1: Exploded View Of Overdrive Internal Components
G02808492Courtesy of ISUZU MOTOR CO.

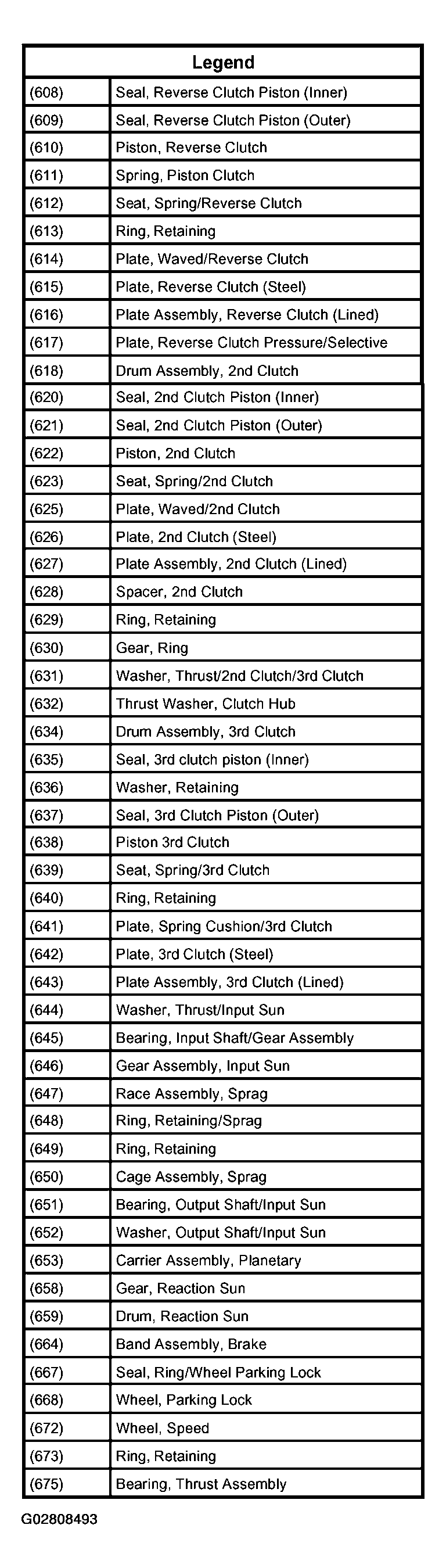

Fig 2: Overdrive Internal Components List
G02808493Courtesy of ISUZU MOTOR CO.
