Disassembled View: Disassembly

  1. Install the J-23327 compressor tool on spring seat, then compress the spring seat.
    • Remove retaining ring (1).
      NOTE: Do not over-stress the springs and seat, as this will cause damage to the spring seat.
    • Remove the compressor tool.

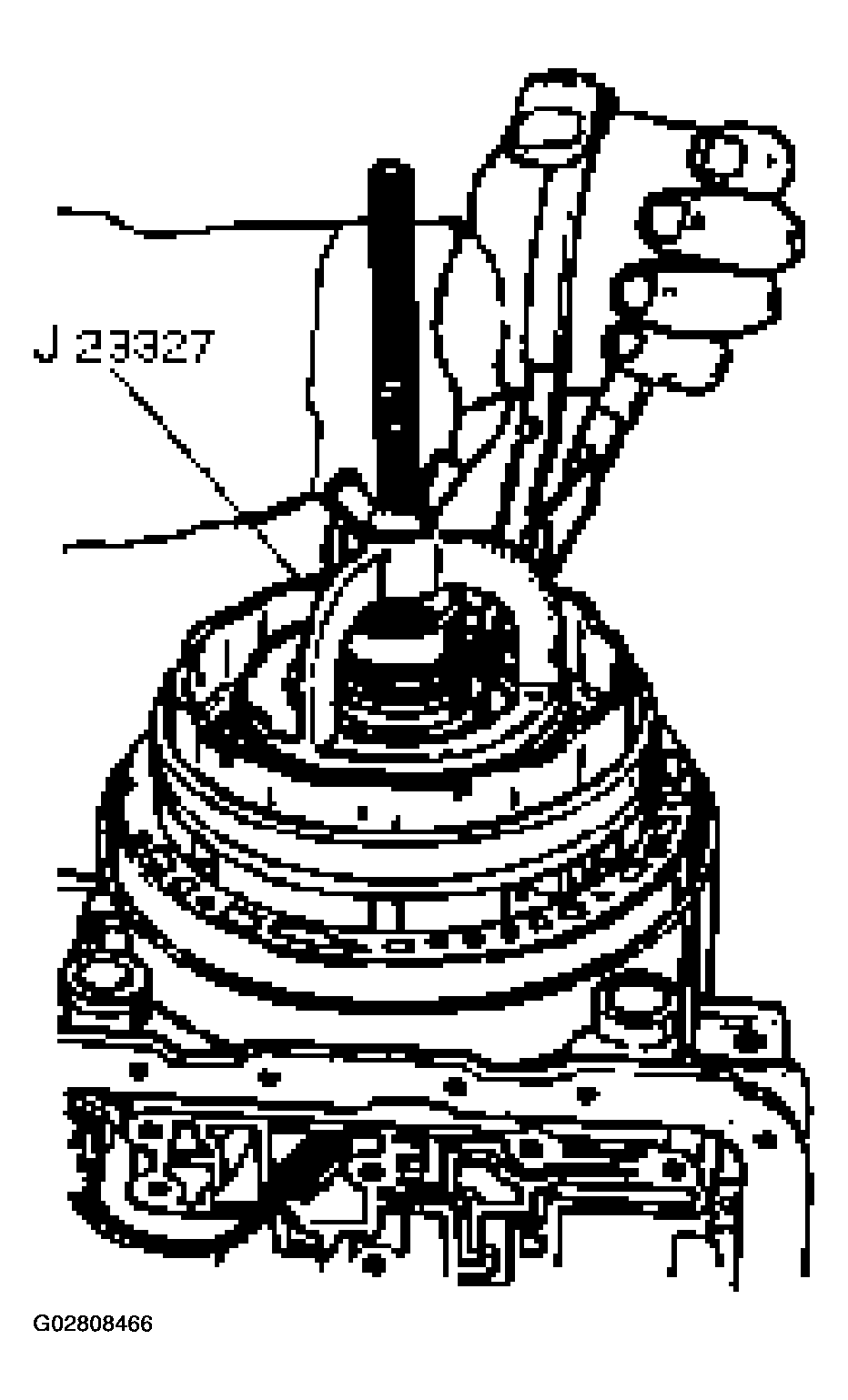

      Fig 1: Removing Retaining Ring
      G02808466Courtesy of ISUZU MOTOR CO.
  2. Remove spring seat (2) and springs (3).
  3. Remove piston assembly (4).
  4. Remove 8 bolts from center support (5), then remove center support (5) from adapter case.
  5. Remove gasket transfer plate/outer support (6), center support transfer plate (7), and gasket transfer plate/adapter case (8).
  6. Remove restrictor (9) from adapter case housing.
  7. Remove retainer plate (10), plug (11), spring (12), and overrun lock out valve (13) from center support (5).
  8. Remove retainer plate (14), plug (15), spring (16) and reverse lock out valve (17) from center support (5).
