Disassembled View: Reassembly

  1. Install reverse lock out valve (17) and spring (16) to center support.
    NOTE: Ensure correct assembly of valve. The spring should be located over the long small diameter end.
  2. Install plug (15) and retainer plate (14).
  3. Install overrun lock out valve (13) and spring (12) to center support.
    NOTE: Ensure correct assembly of valve. The spring should be located over the long small diameter end.
  4. Install plug (11) and retainer plate (10).
  5. Place restrictor (9) in the lube overdrive channel in the adapter case housing.

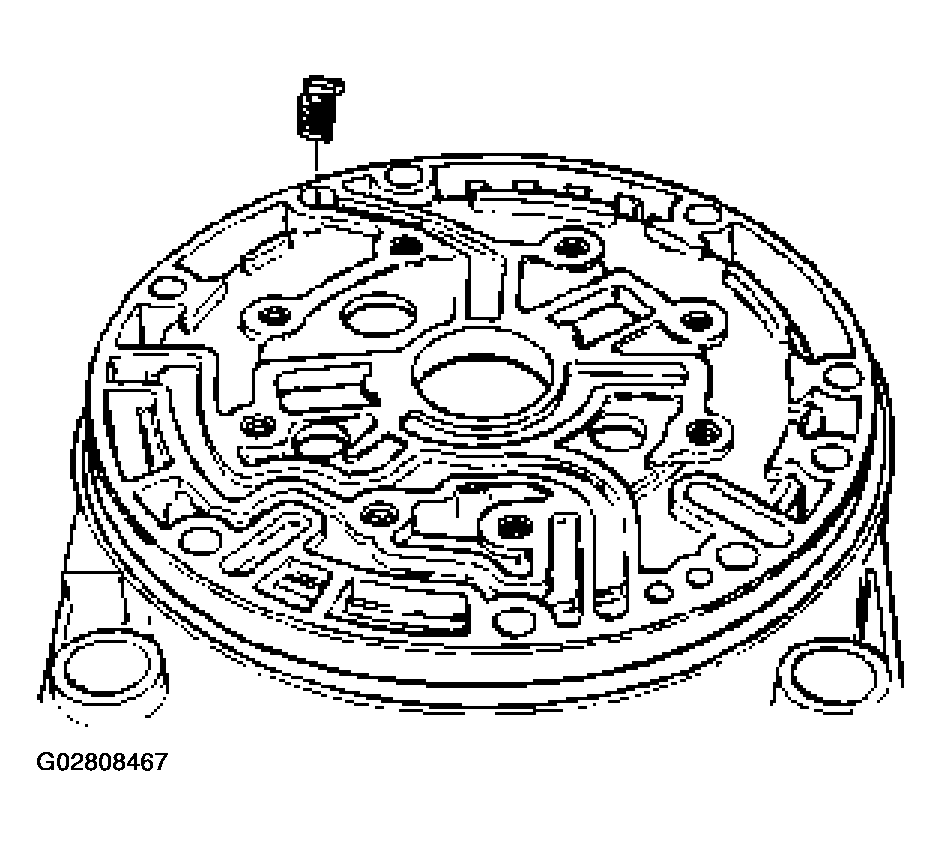

    Fig 1: Placing Restrictor In Lube Overdrive Channel In Adapter Case Housing
    G02808467Courtesy of ISUZU MOTOR CO.
  6. Install gasket transfer plate/adapter case (8), center support transfer plate (7), and gasket transfer plate/center support (6).
  7. Install center support (5) with 8 bolts.

    Torque:  25 N.m (18 lb ft)

  8. Install piston assembly (4) into center support (5).
  9. Install twenty four springs (3), spring seat (2), and retaining ring (1).
    • Install the J-23327 compressor and compress spring seat (2) and springs (3), then seat snap ring (1) in groove.
    • Remove the tool.
