DTC P1870 Transmission Component Slipping (TCC Stuck Off)
›
Range Switch Logic Table
Range Switch Logic Table

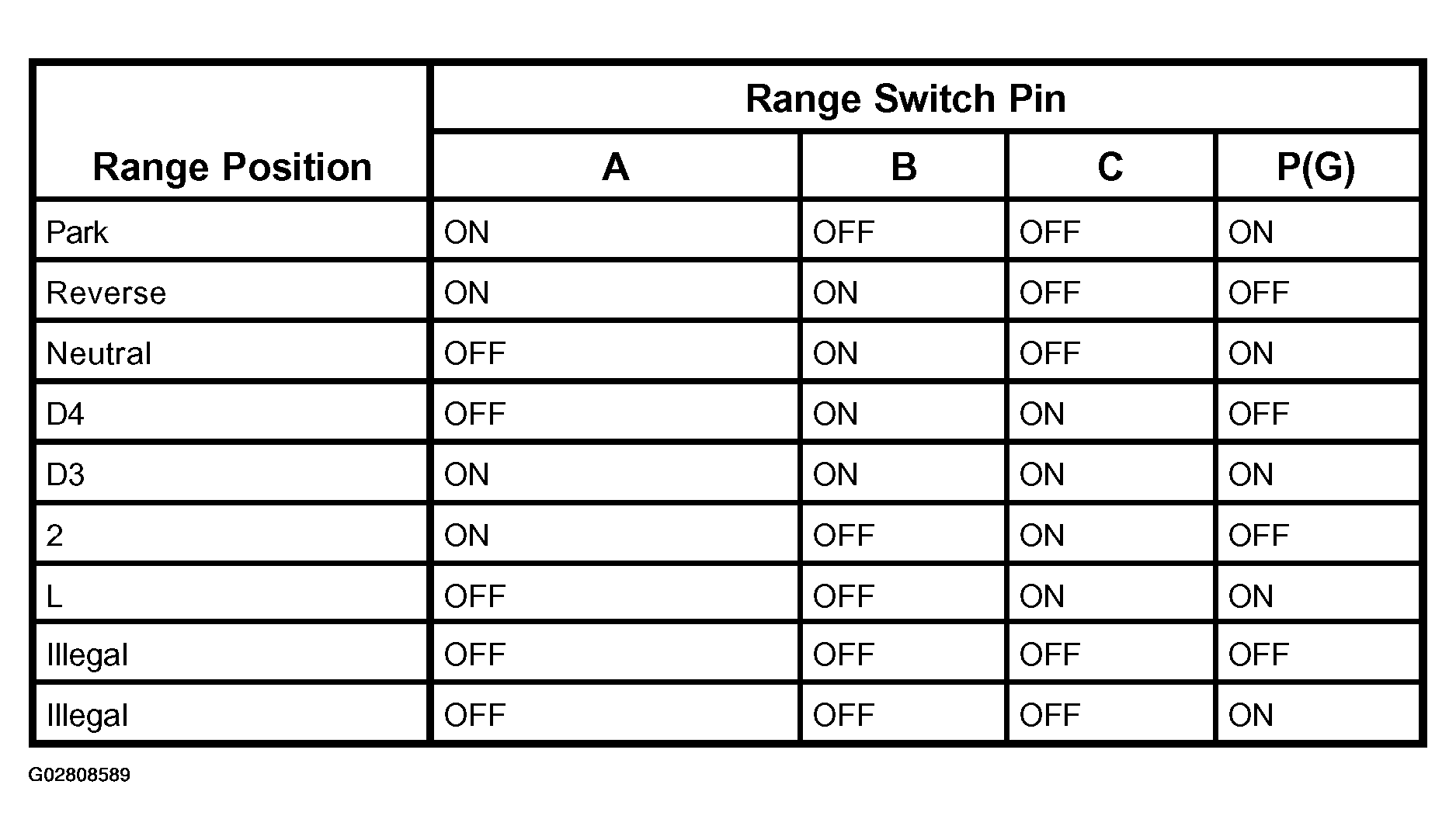

Fig 1: Range Switch Logic Table
Courtesy of ISUZU MOTOR CO.
