Body Dimension
›
Front Section
Front Section

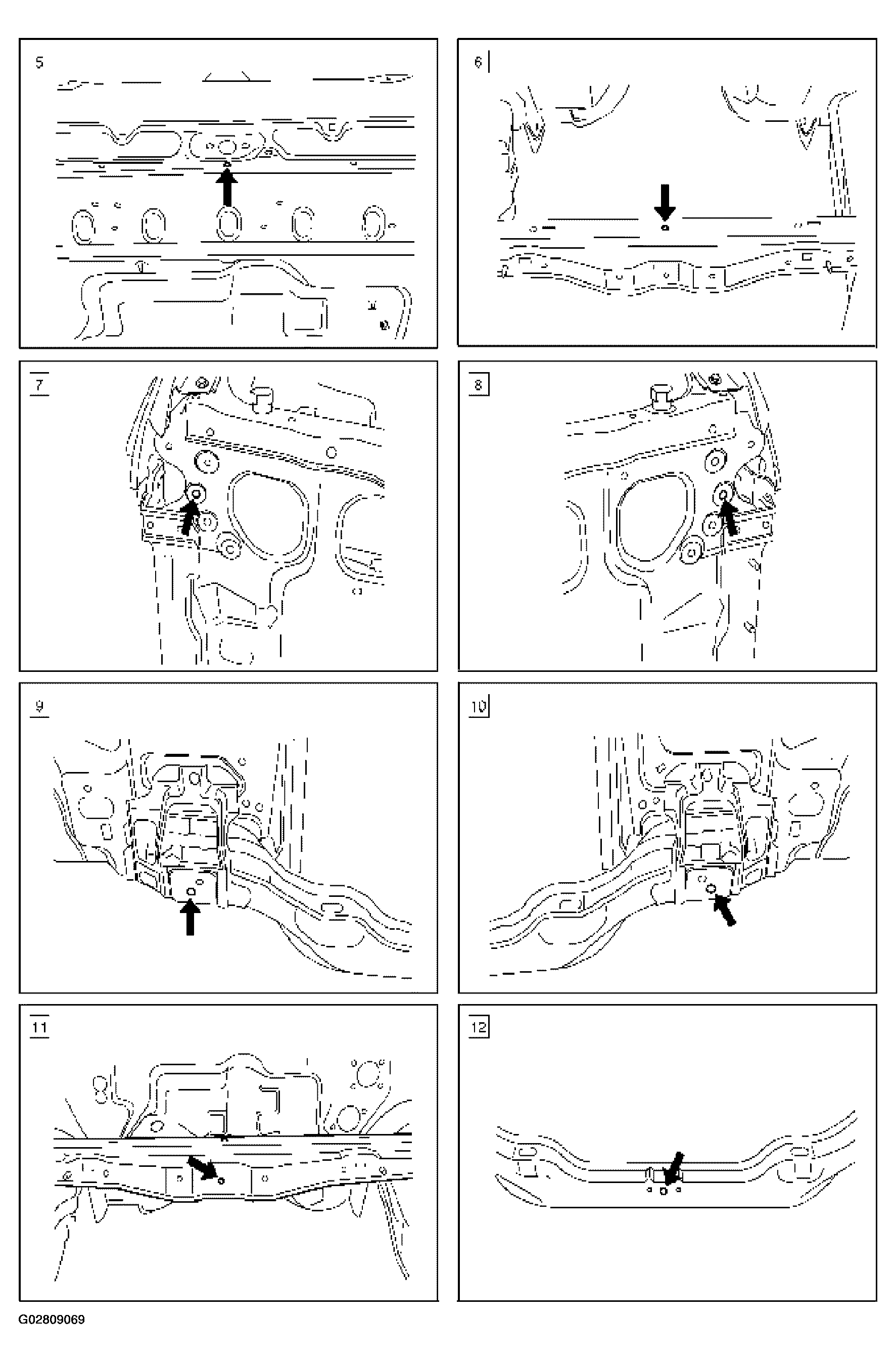

Fig 1: Identifying Body Dimension Of Front Section (1 Of 3)
Courtesy of ISUZU MOTOR CO.

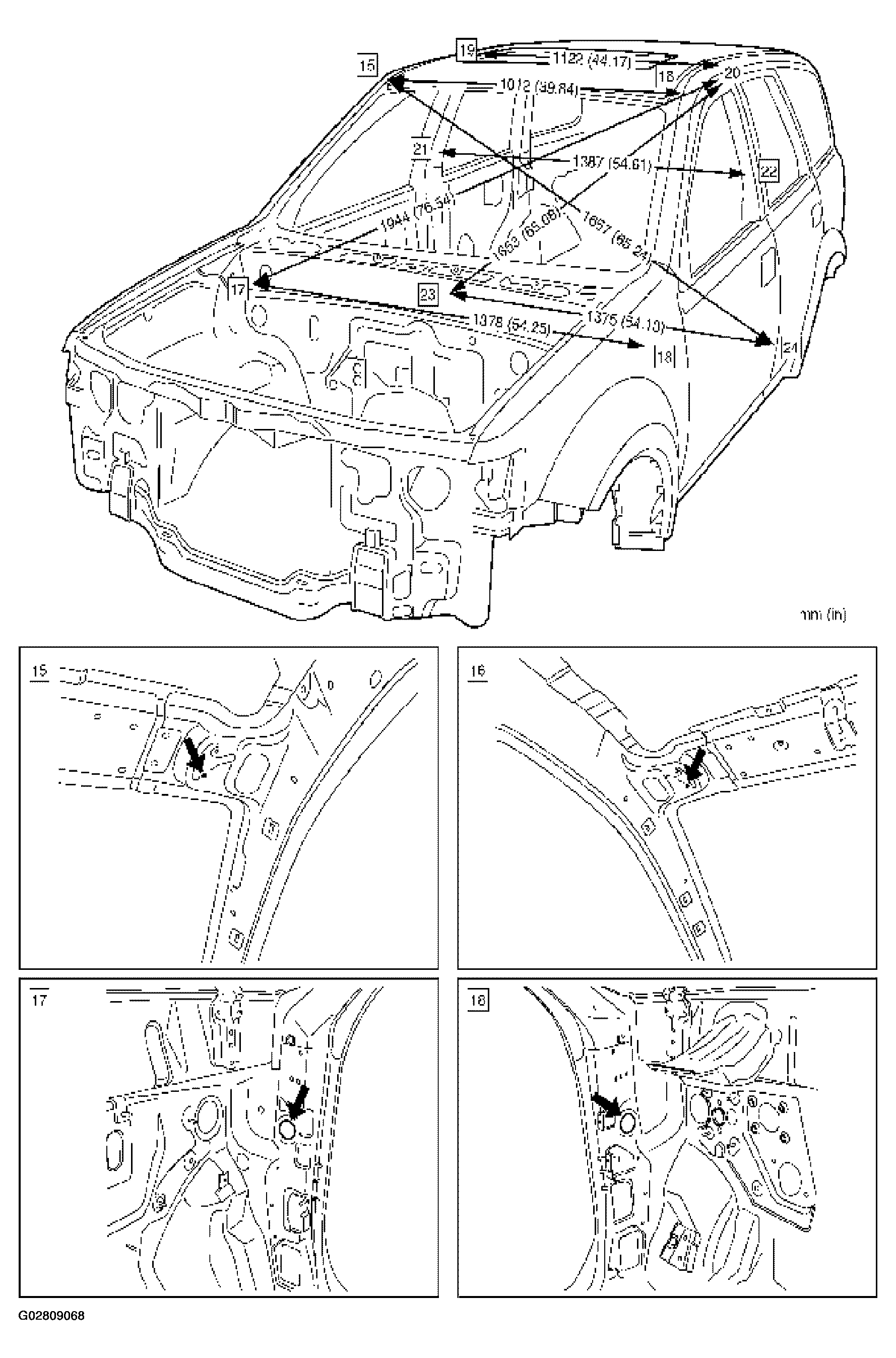

Fig 2: Identifying Body Dimension Of Front Section (2 Of 3)
Courtesy of ISUZU MOTOR CO.

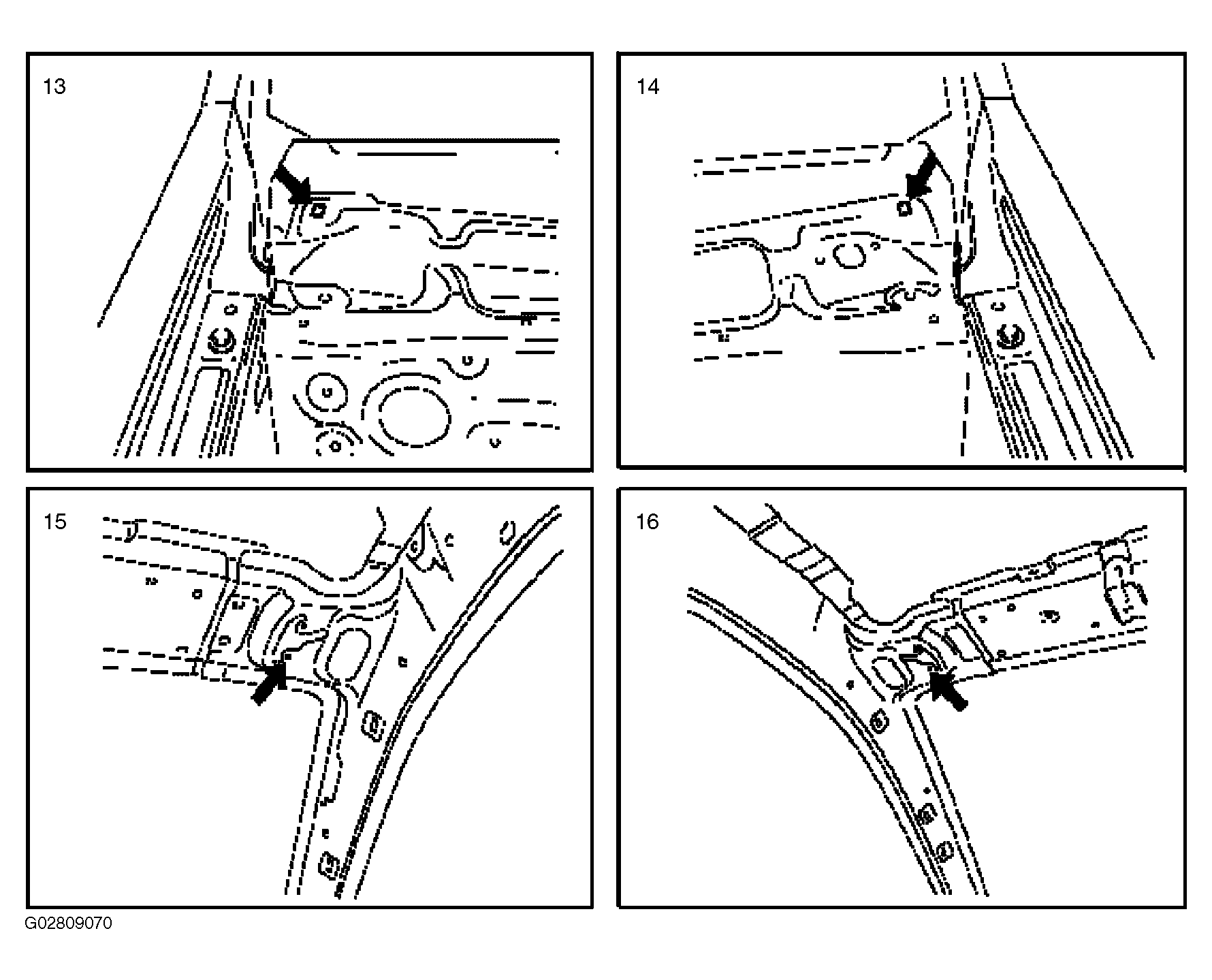

Fig 3: Identifying Body Dimension Of Front Section (3 Of 3)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
