Parts Location

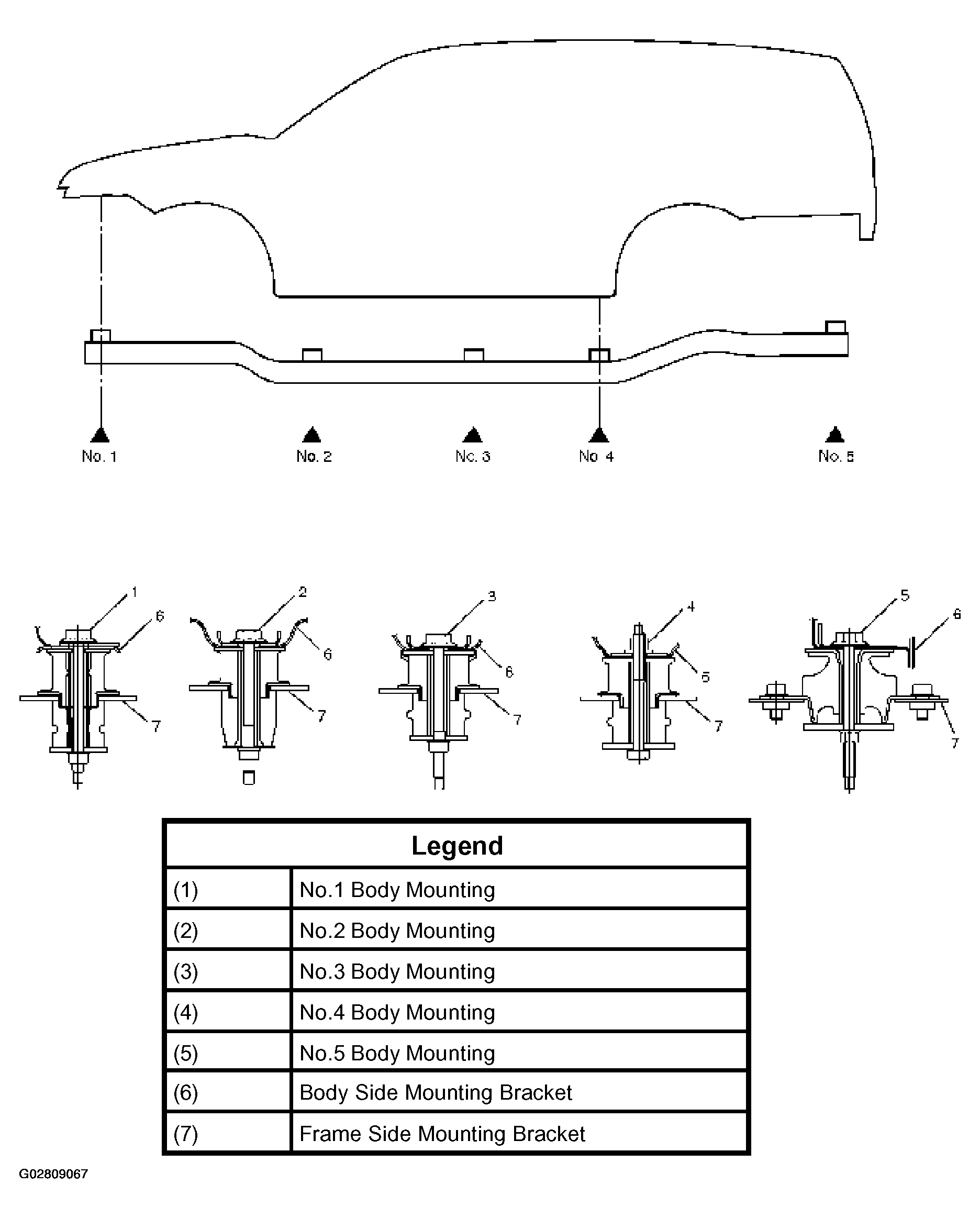

Fig 1: Identifying Parts Location Of Body Mounting

G02809067

Courtesy of ISUZU MOTOR CO.

Tighten the body mounting bolts to specified torque.
Torque: 50 N.m (41 lb ft)

See Figure under TORQUE SPECIFICATIONS.
