Home
›
Isuzu
›
2002
›
Axiom Base, RWD
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Body Structure
›
Rear Window Regulator, Glass And Glass Run
›
Parts Location
›
Notes
Parts Location: Notes

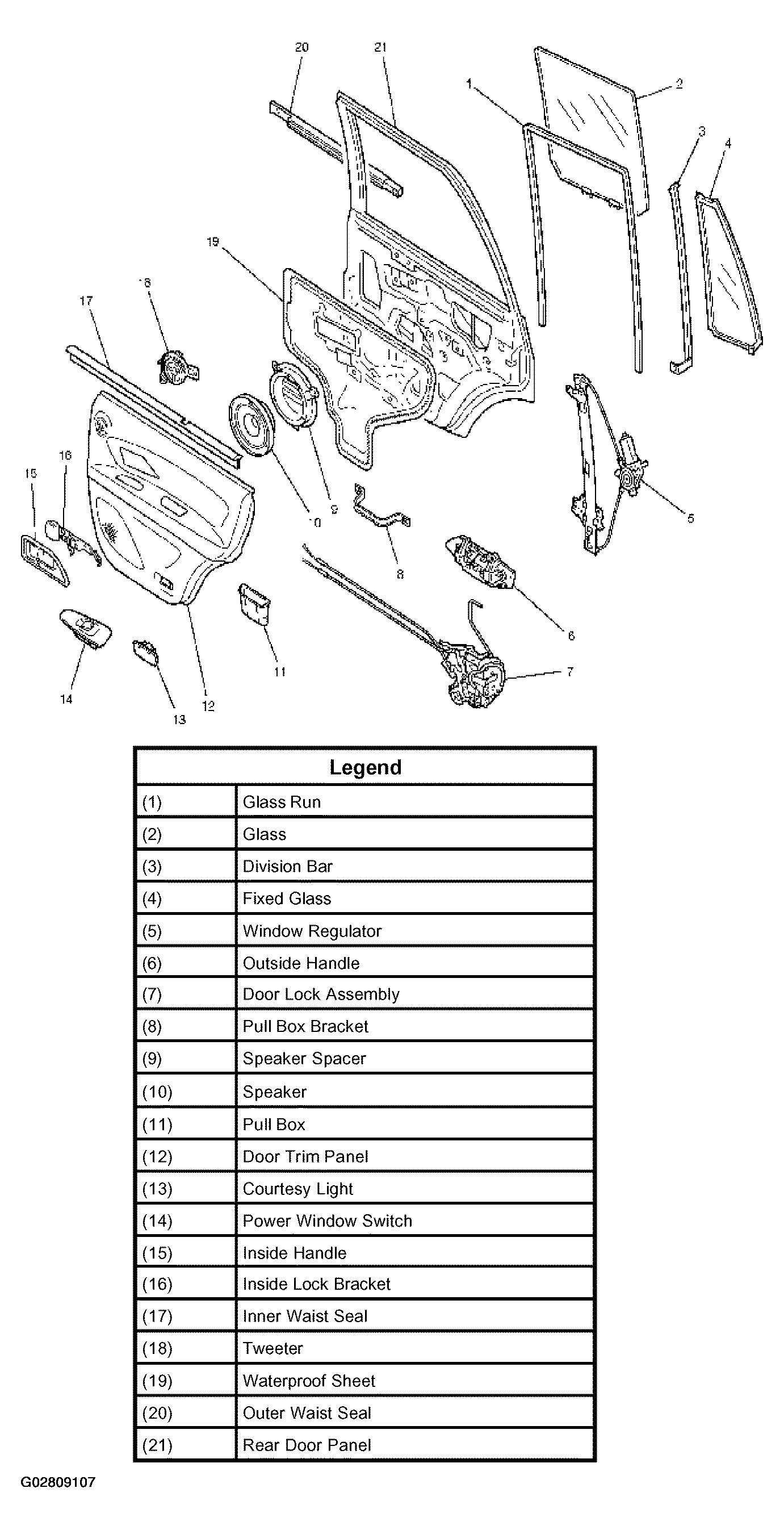

Fig 1: Identifying Parts Location Of Rear Window Regulator, Glass & Glass Run
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
