Parts Location: Notes

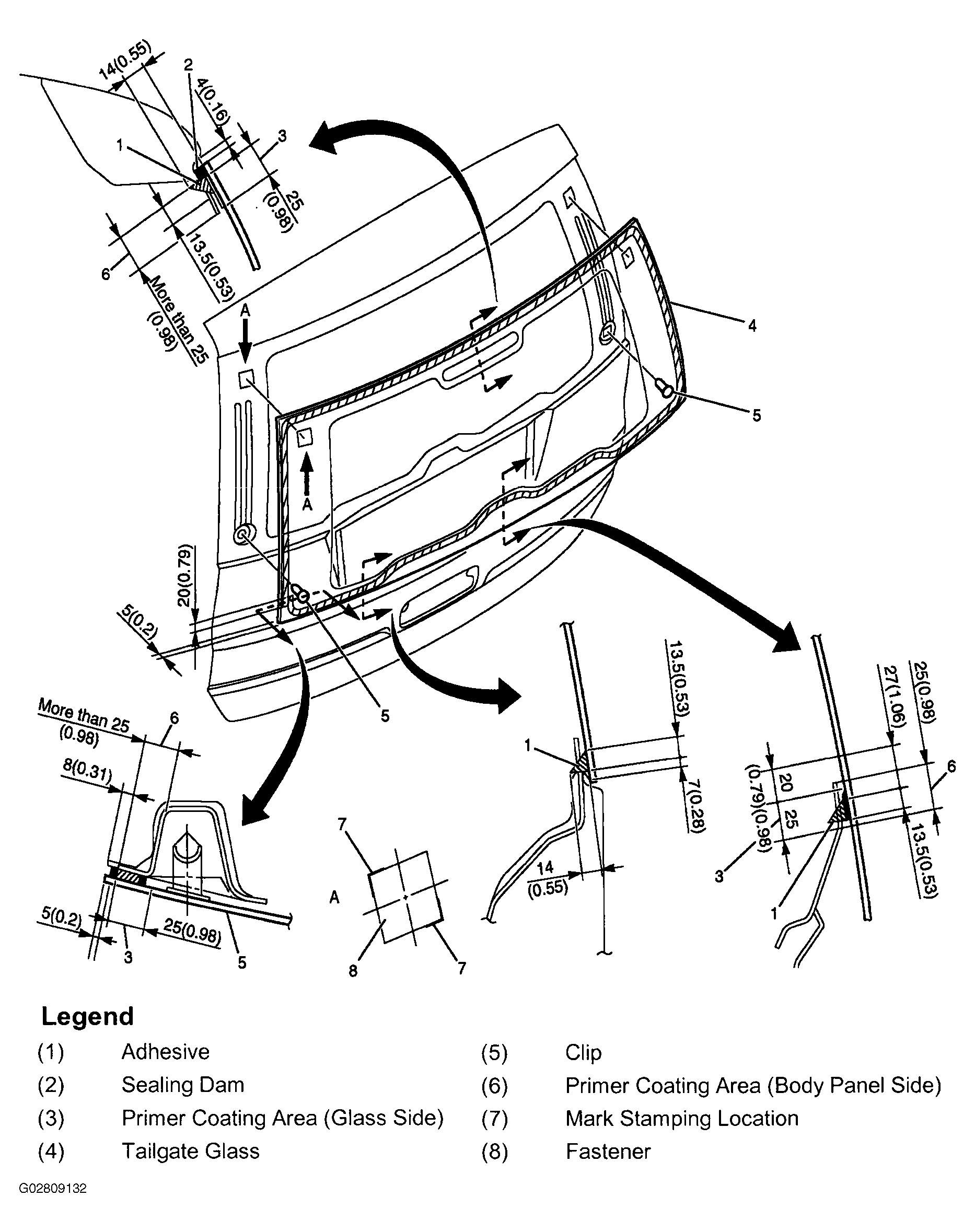

Fig 1: Identifying Parts Location Of Tailgate Glass & Given Dimension
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
