Chart C-1-1: Fl Sensor Output Inspection Procedure
Chart C-1-1: Fl Sensor Output Inspection Procedure

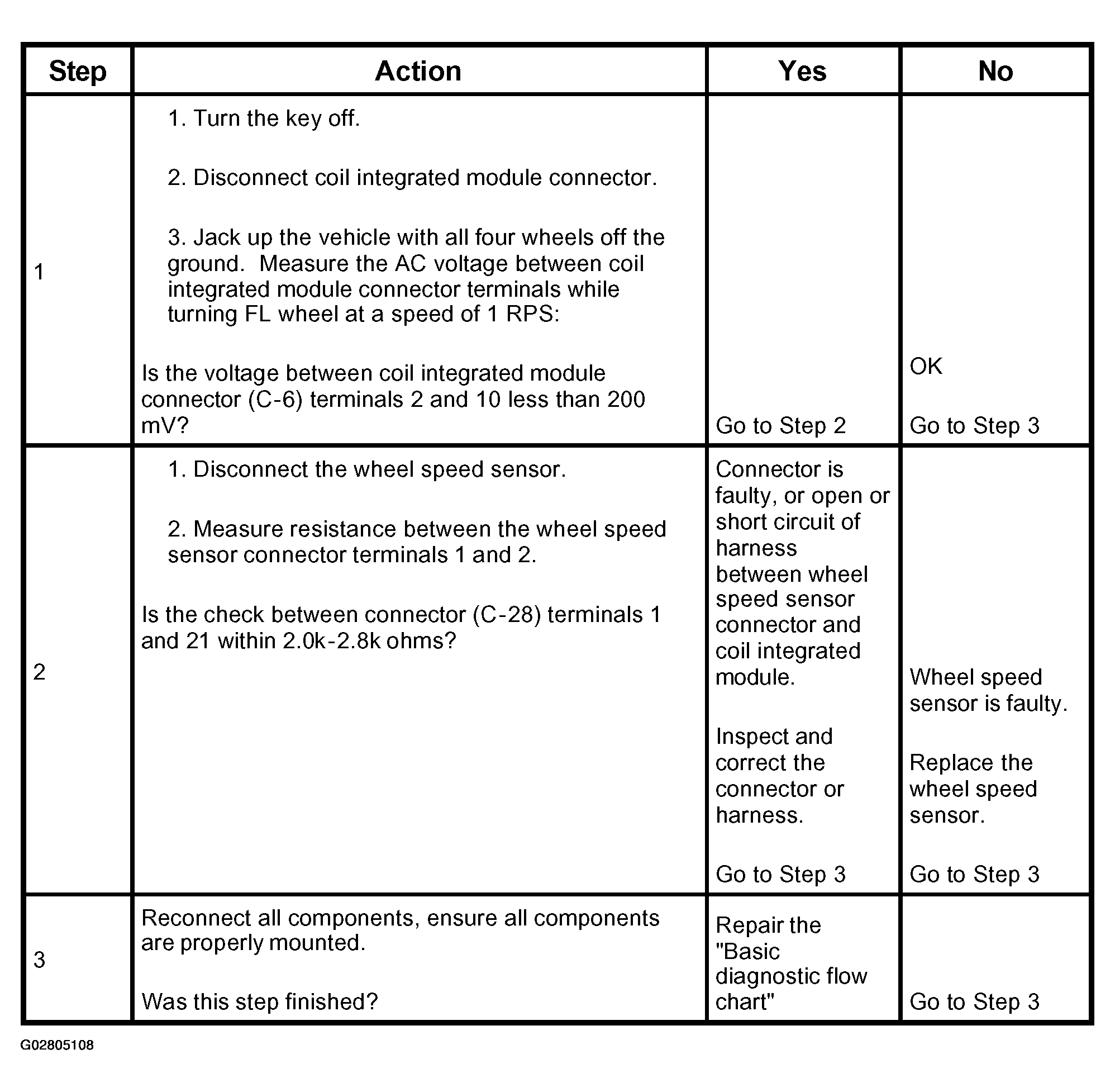

Fig 1: Diagnosis Procedure - C-1-1 FL Sensor Output Inspection
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
