Rear Wheel Speed Sensor: Installation

1. Install speed sensor (3).
2. Tighten the sensor fixing bolt (2) to the specified torque.

   Torque:  24 N.m (17 lb ft)

3. Connect harness connector (1).

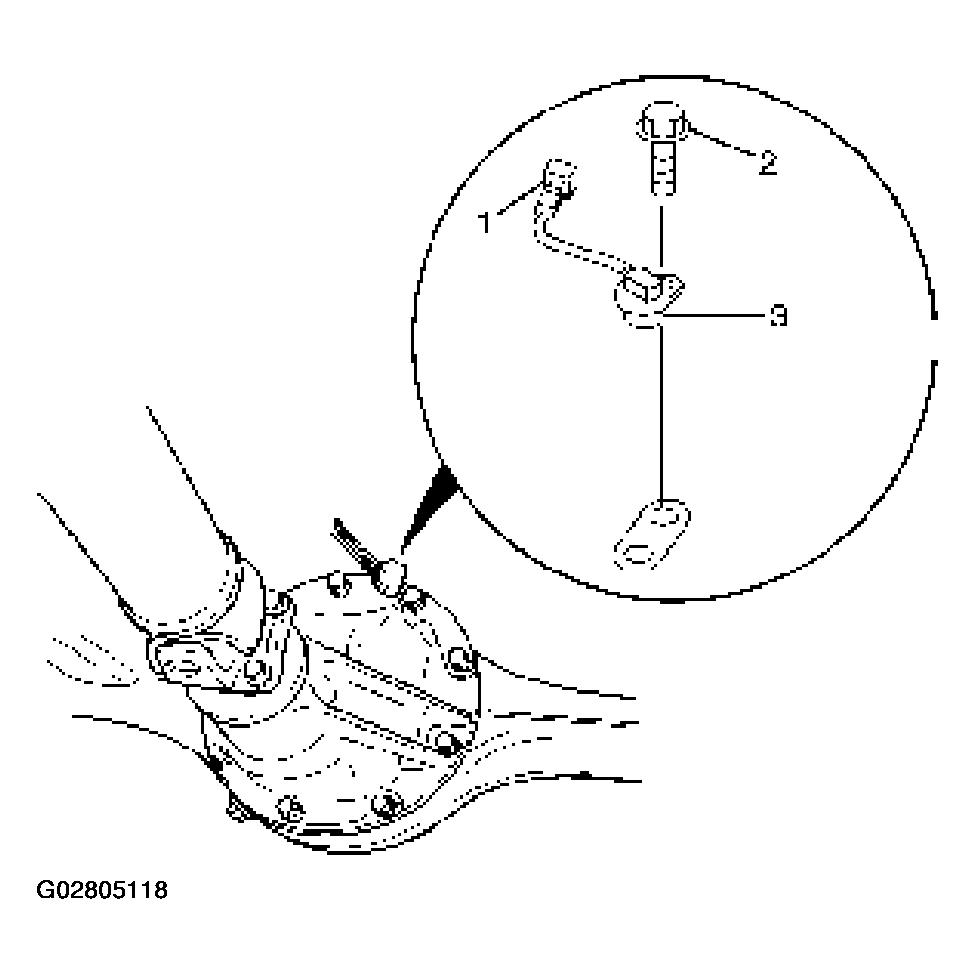

Fig 1: Installing Speed Sensor

Courtesy of ISUZU MOTOR CO.
