Diagnostic Trouble Codes

Choose and trace an appropriate flowchart by the numbers listed below to find fault and repair.

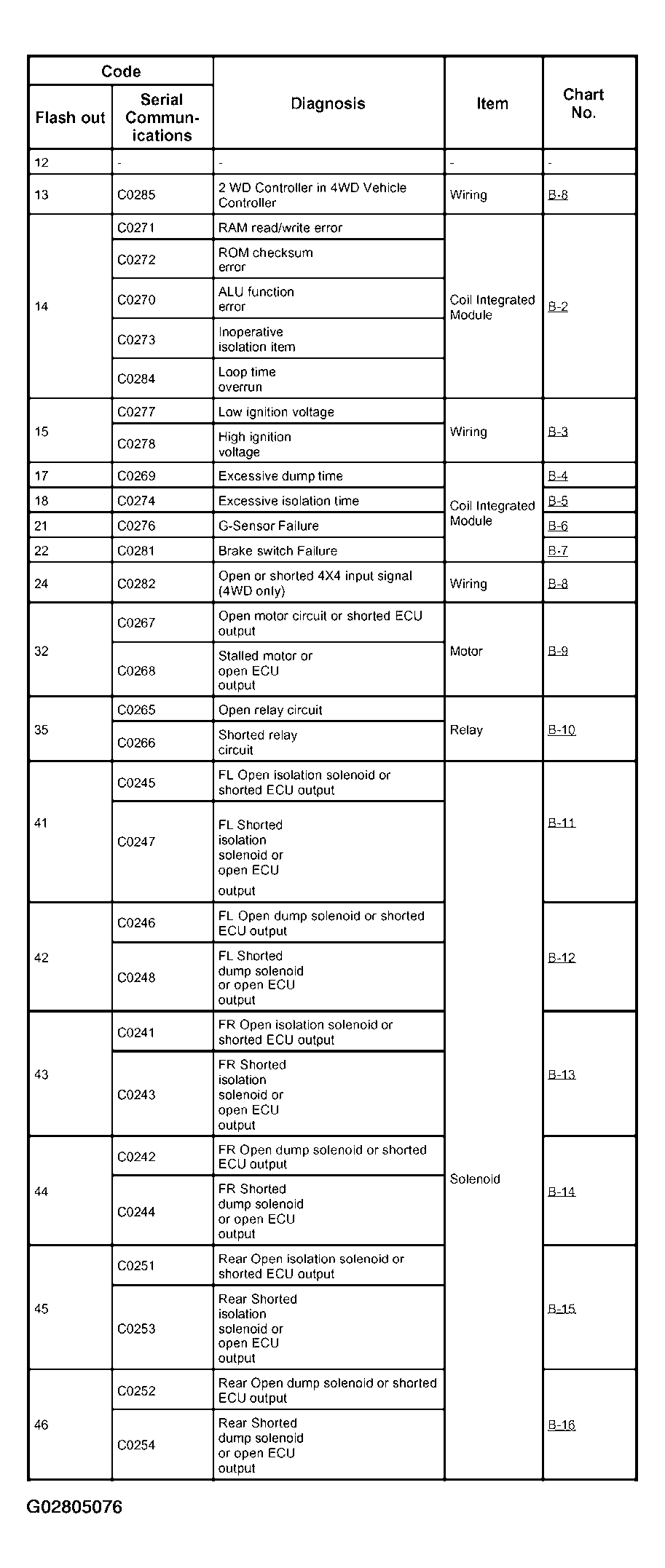

Fig 1: Diagnostic Trouble Codes Chart (1 Of 2)
G02805076Courtesy of ISUZU MOTOR CO.

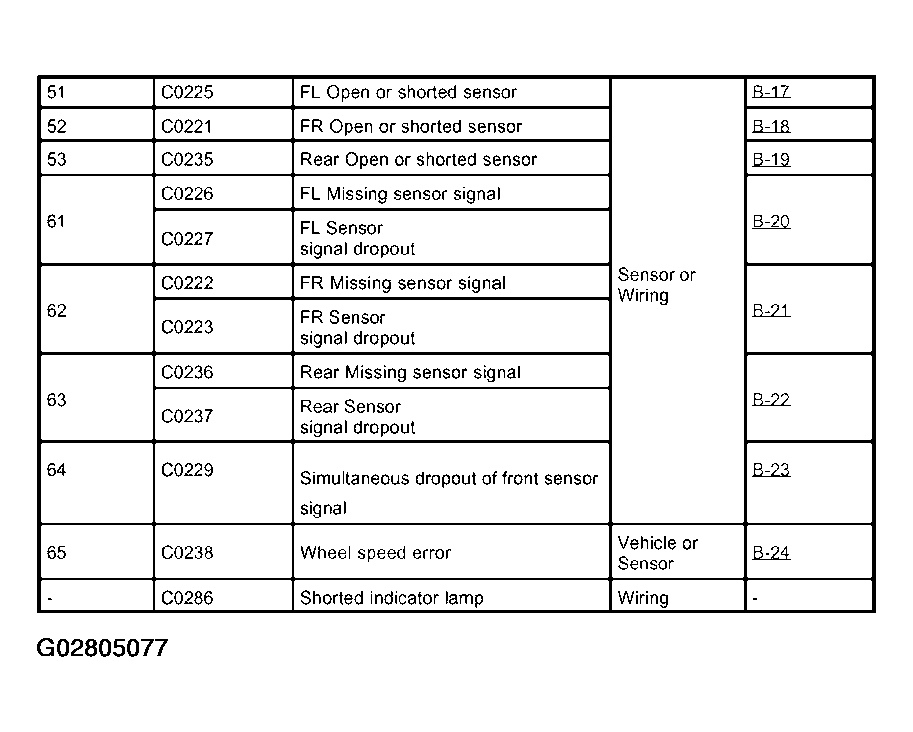

Fig 2: Diagnostic Trouble Codes Chart (2 Of 2)
G02805077Courtesy of ISUZU MOTOR CO.
