Tech 2 Service Bleed

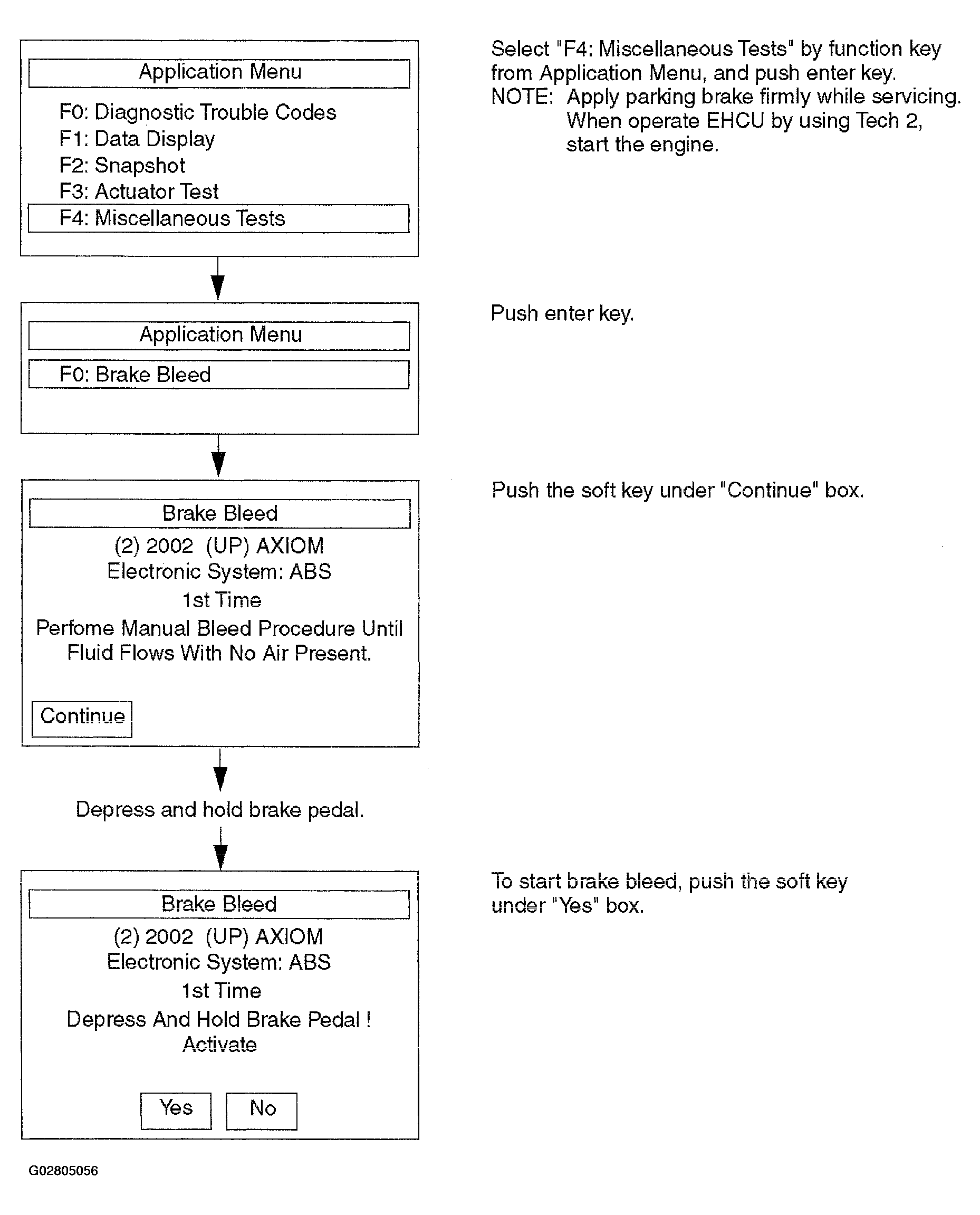

Fig 1: Actuator Test (5 Of 6)
G02805056Courtesy of ISUZU MOTOR CO.

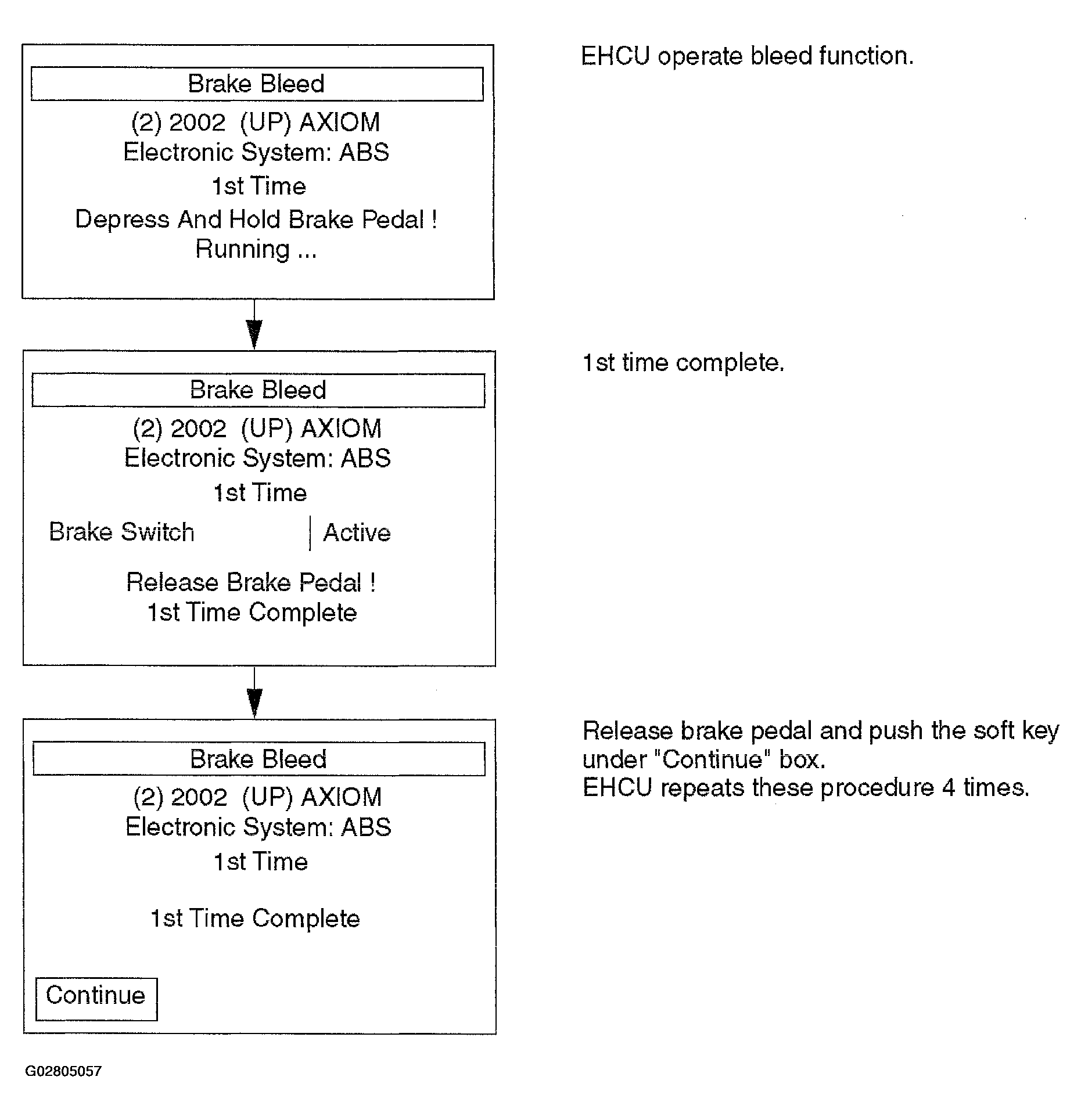

Fig 2: Actuator Test (6 Of 6)
G02805057Courtesy of ISUZU MOTOR CO.
