Display (Mid): Removal

Disconnect the battery ground cable.
Remove the cluster upper cover.
- Disconnect the sun sensor connector and the GPS control unit connector.
Remove the center cluster.
- Refer to INSTRUMENT PANEL ASSEMBLY .
Remove the Display (1).
- Remove the screws (2).
- Disconnect the Display connector and MID control unit connector.

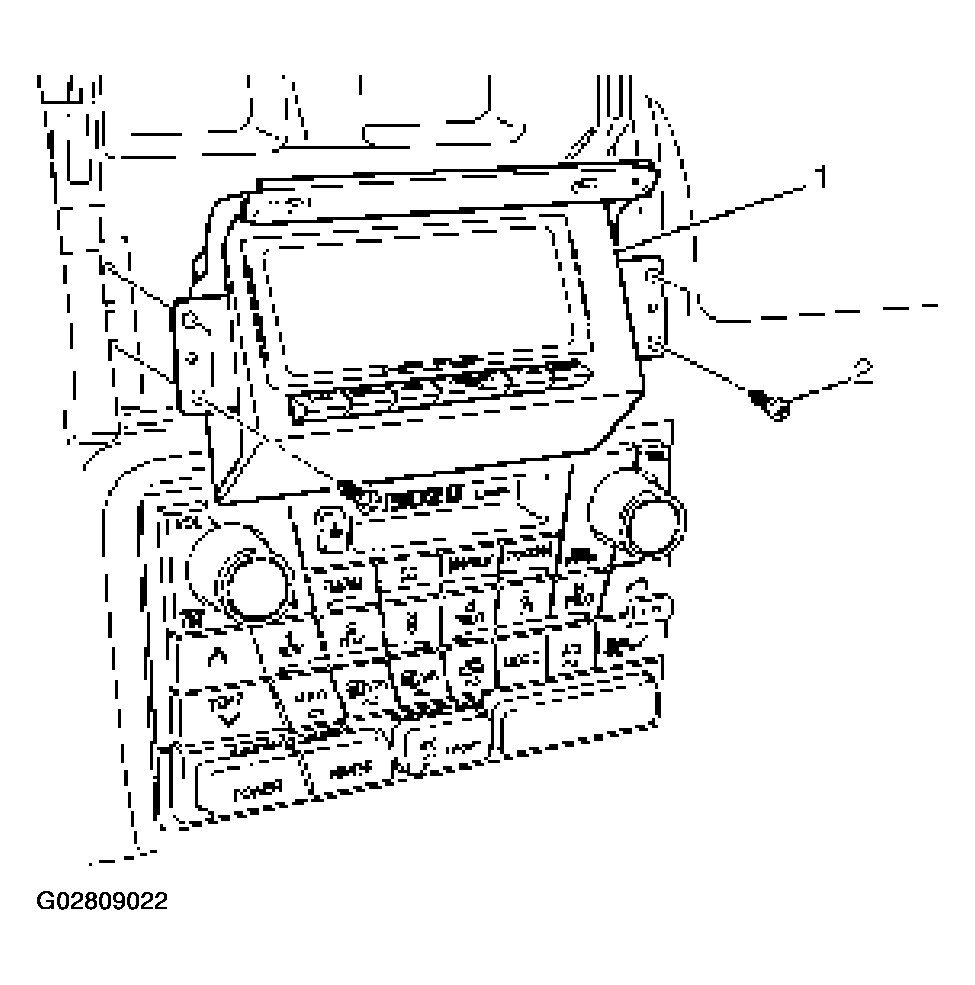

  Fig 1: Removing Center Cluster (MID)
  Courtesy of ISUZU MOTOR CO.
