Front Tweeter Assembly: Removal

1. Disconnect the battery ground cable.
2. Remove the front door trim pad (2).
   • Refer to FRONT DOOR ASSEMBLY .
3. Remove the tweeter (1).
   • Disconnect the connector.

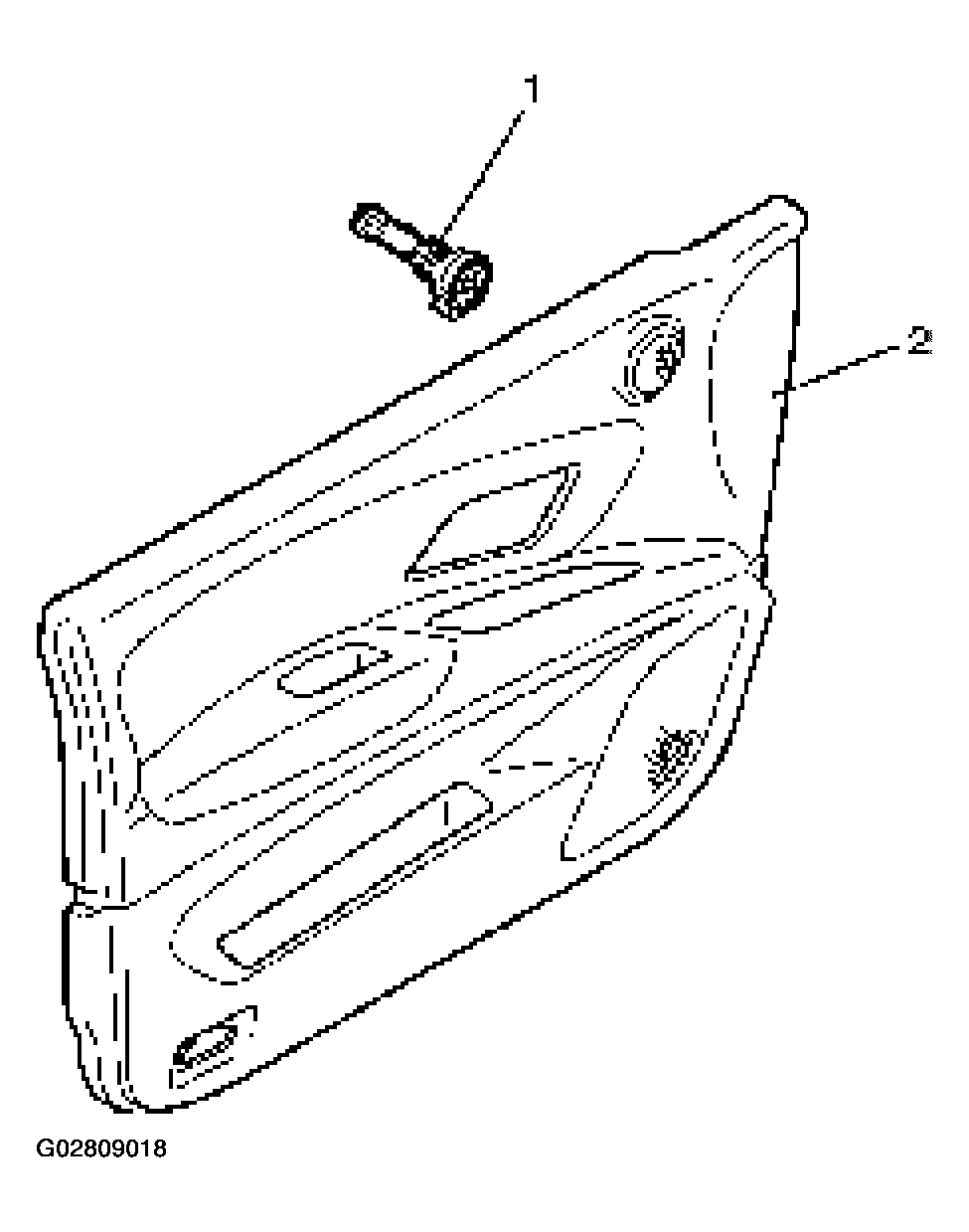

Fig 1: Identifying Tweeter

Courtesy of ISUZU MOTOR CO.
