Isuzu
›
2002
›
Axiom Base, RWD
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Exhaust
›
Main Data And Specifications
›
Torque Specifications
Torque Specifications

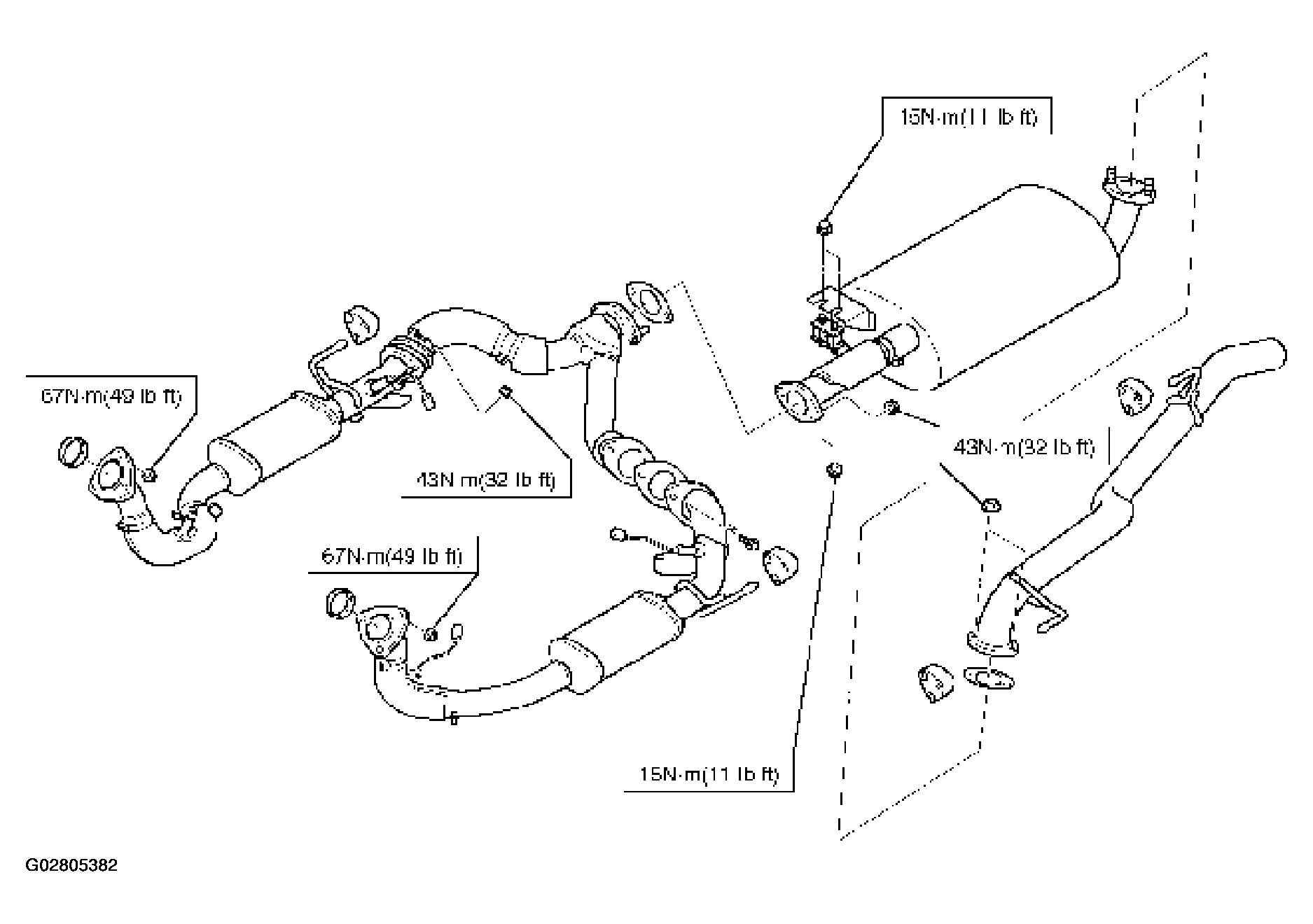

Fig 1: Exploded View Of Exhaust System Assembly With Torque Specifications
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
