Power Steering Unit Disassembled View

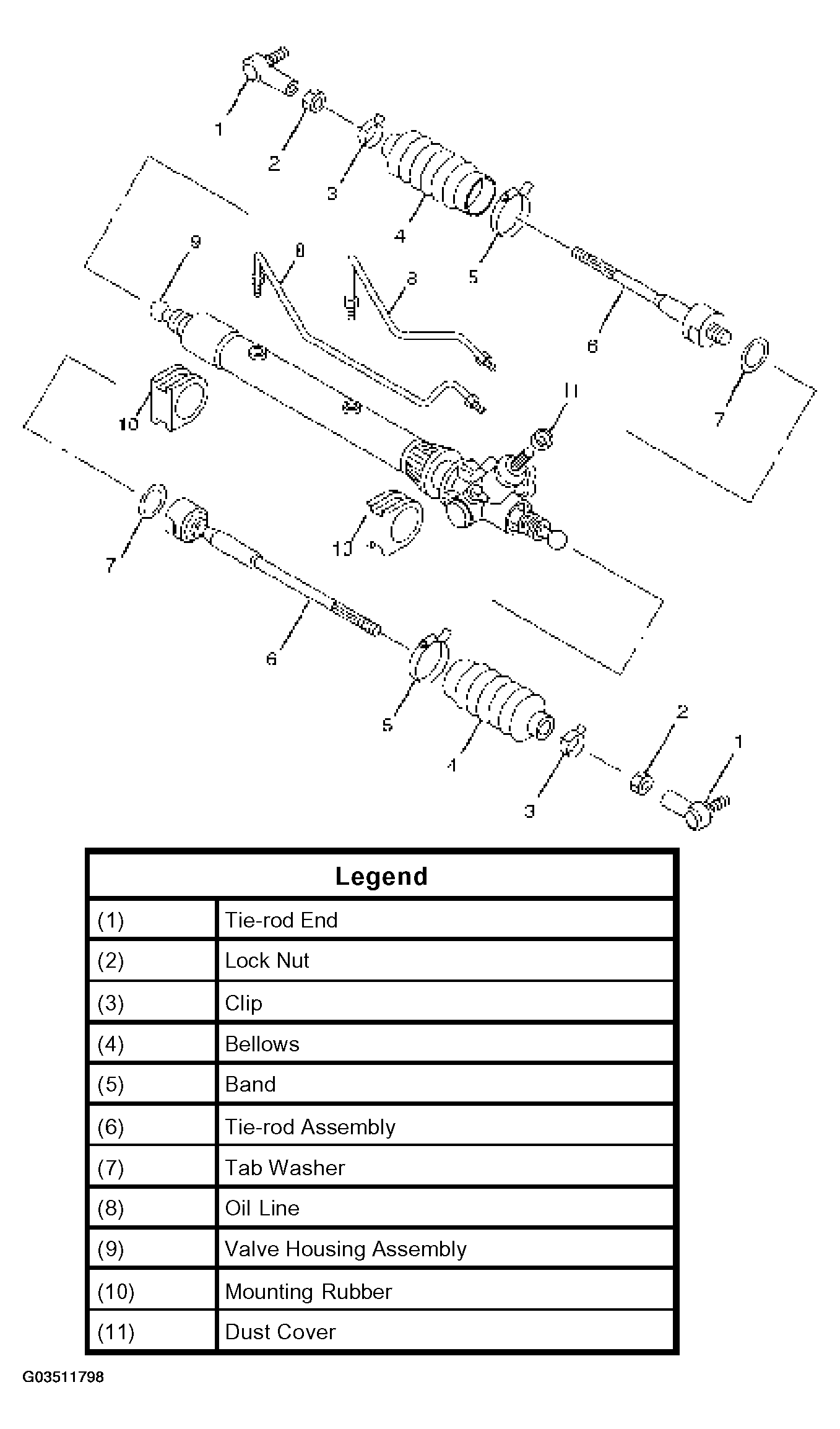

Fig 1: Identifying Power Steering Unit Components
G03511798Courtesy of ISUZU MOTOR CO.
