Isuzu
›
2002
›
Axiom Base, RWD
›
Repair and Diagnosis
›
Steering
›
Power Steering
›
Power-Assisted Steering System
›
Main Data and Specifications
›
Torque Specification
Torque Specification

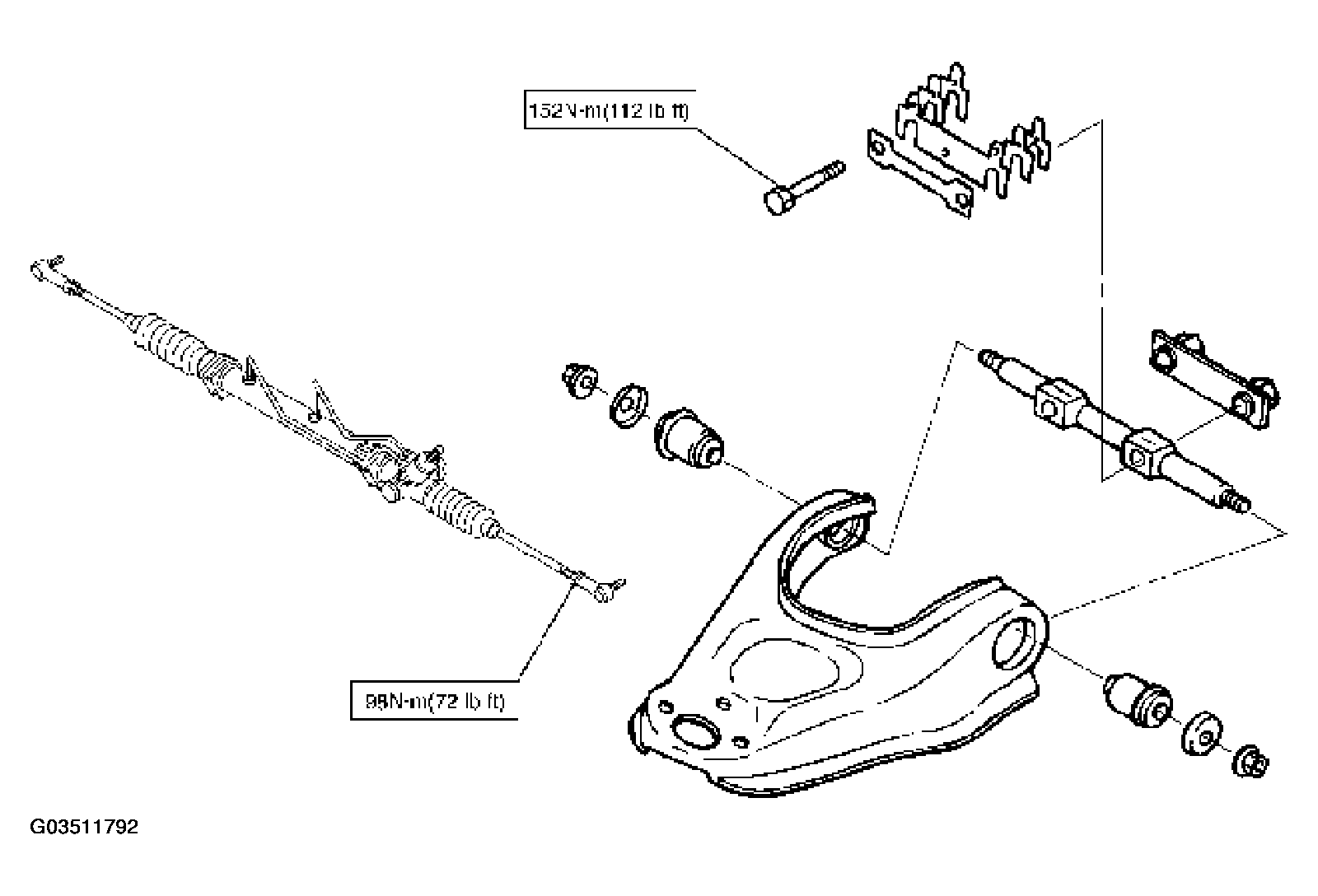

Fig 1: Torque Specification Of Steering Components
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
