Automatic Transmission: Construction

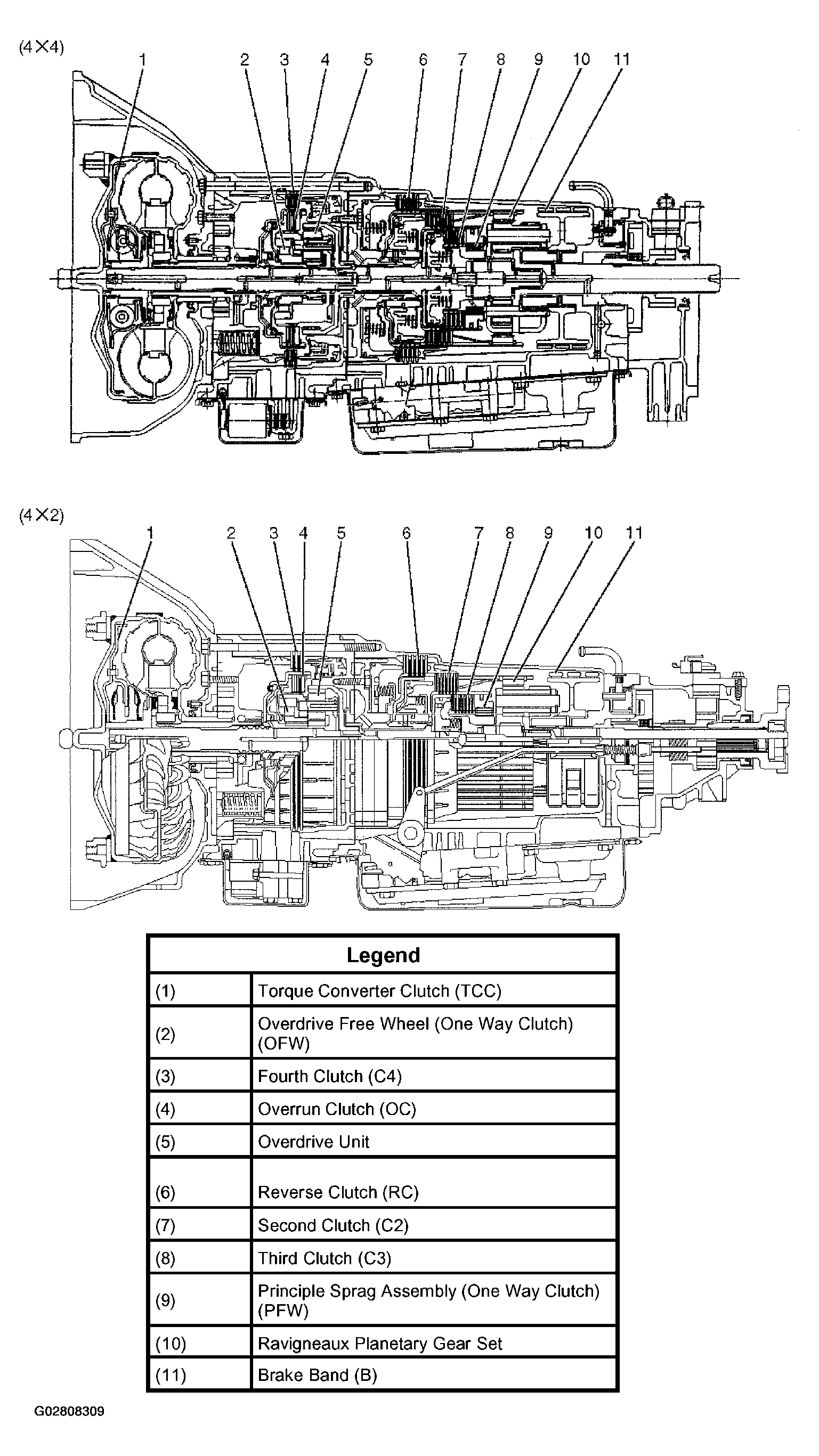

Fig 1: Sectional View Of Automatic Transmission (4L30-E)
G02808309Courtesy of ISUZU MOTOR CO.
