Automatic Transmission
›
Main Case Valve Body
›
Disassembled View
›
Notes
Disassembled View: Notes

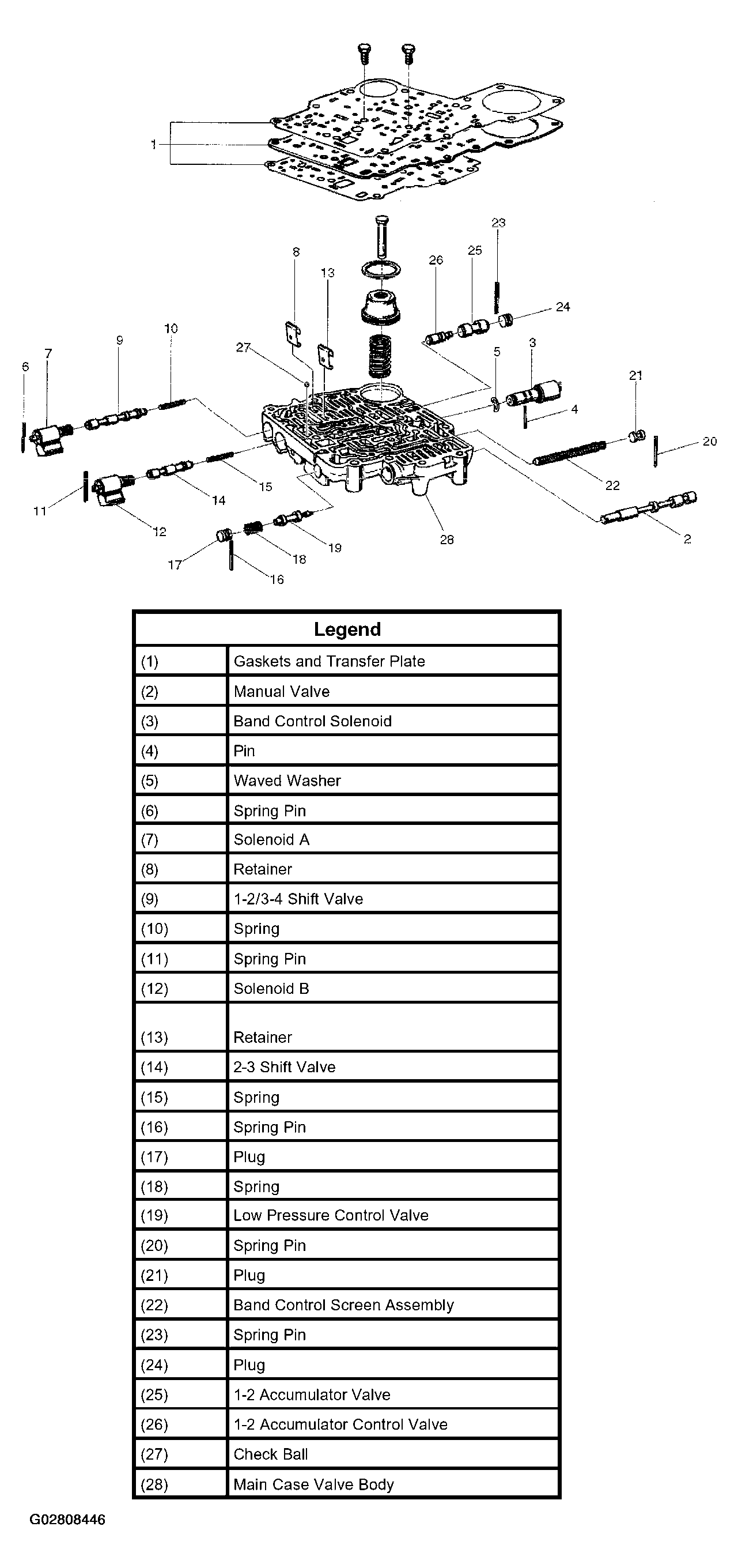

Fig 1: Disassembled View Of Main Case Valve Body
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
