Torque Specifications

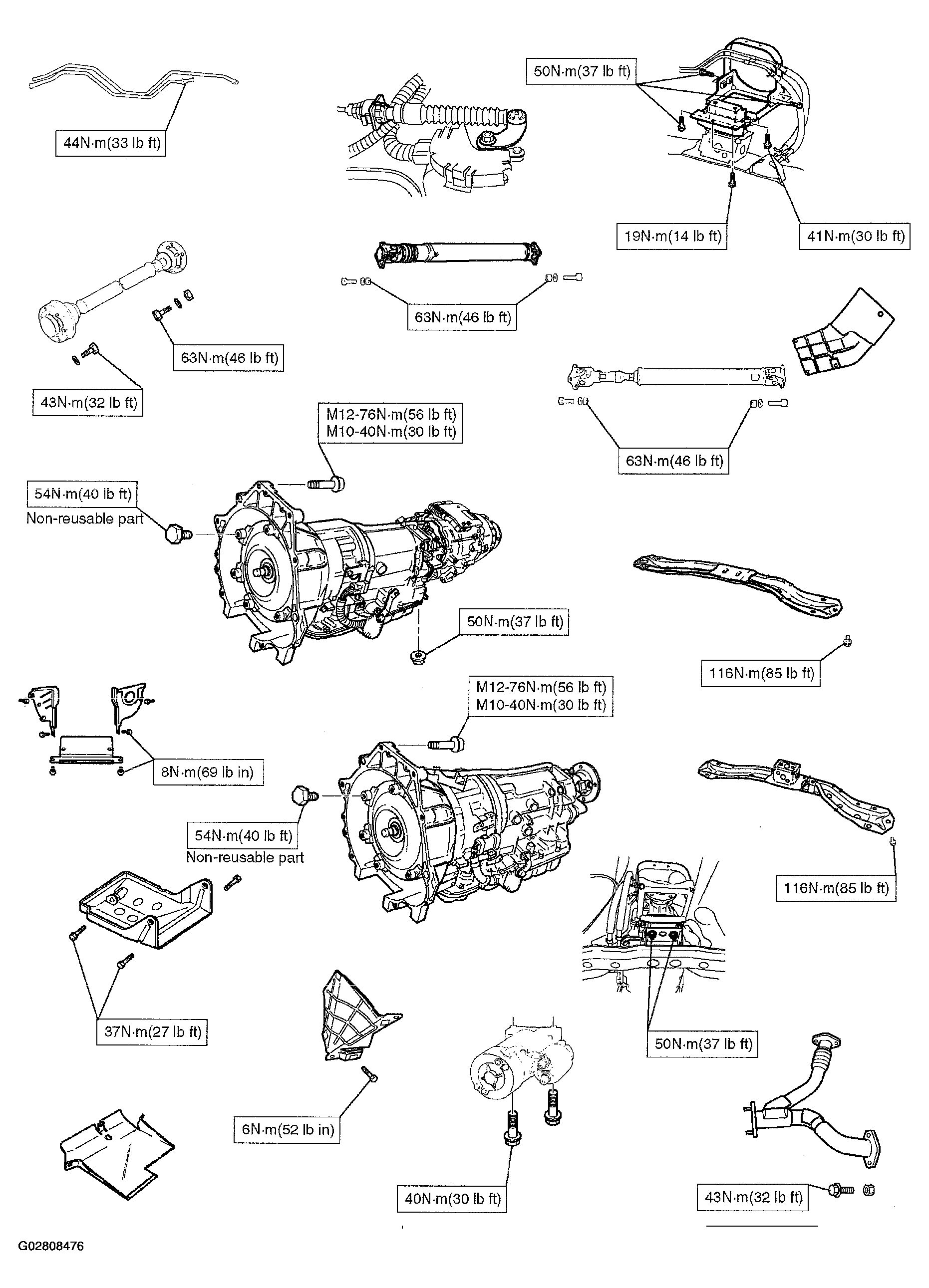

Fig 1: Torque Specifications Chart (1 Of 3)

G02808476

Courtesy of ISUZU MOTOR CO.

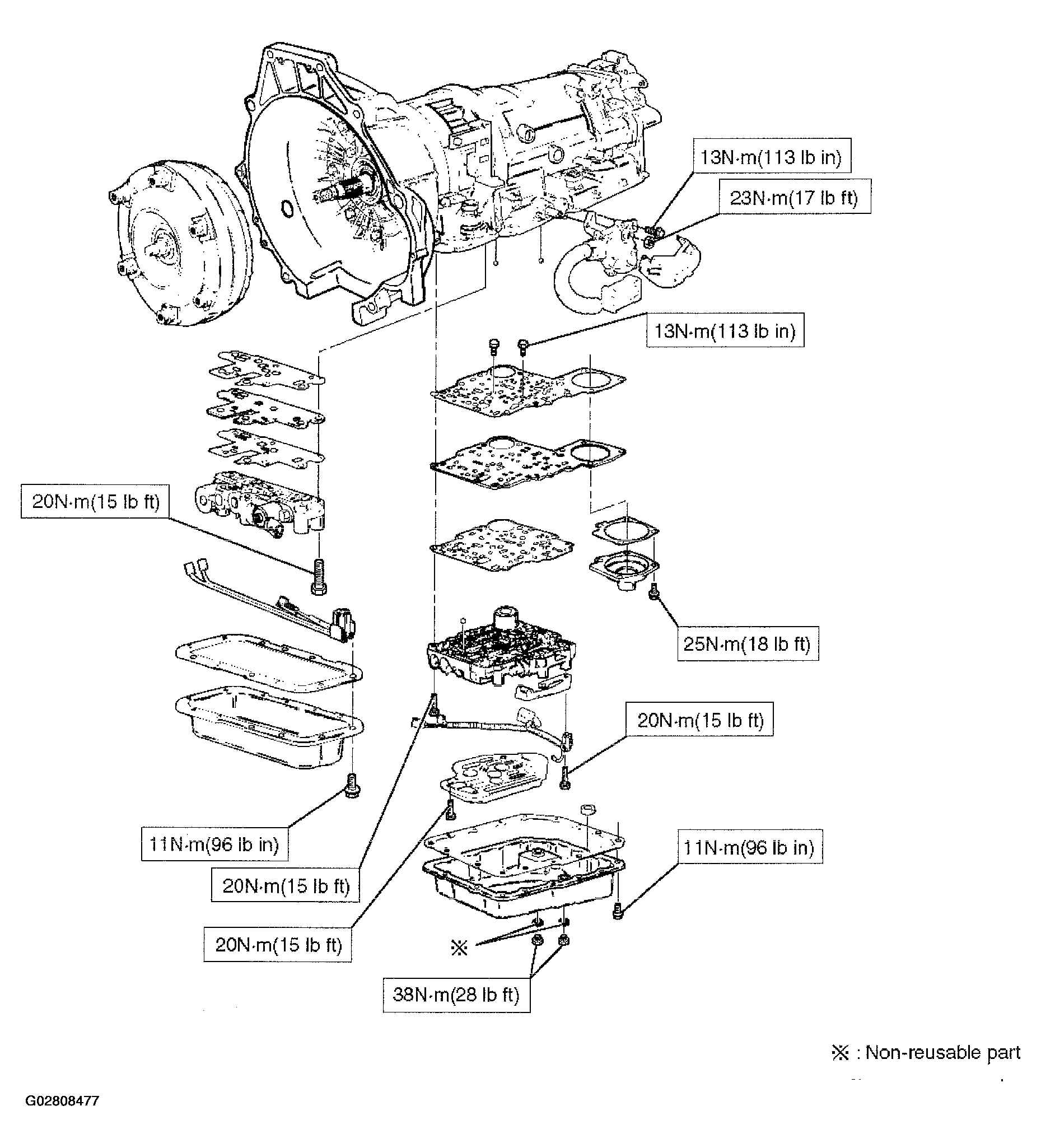

Fig 2: Torque Specifications Chart (2 Of 3)

G02808477

Courtesy of ISUZU MOTOR CO.

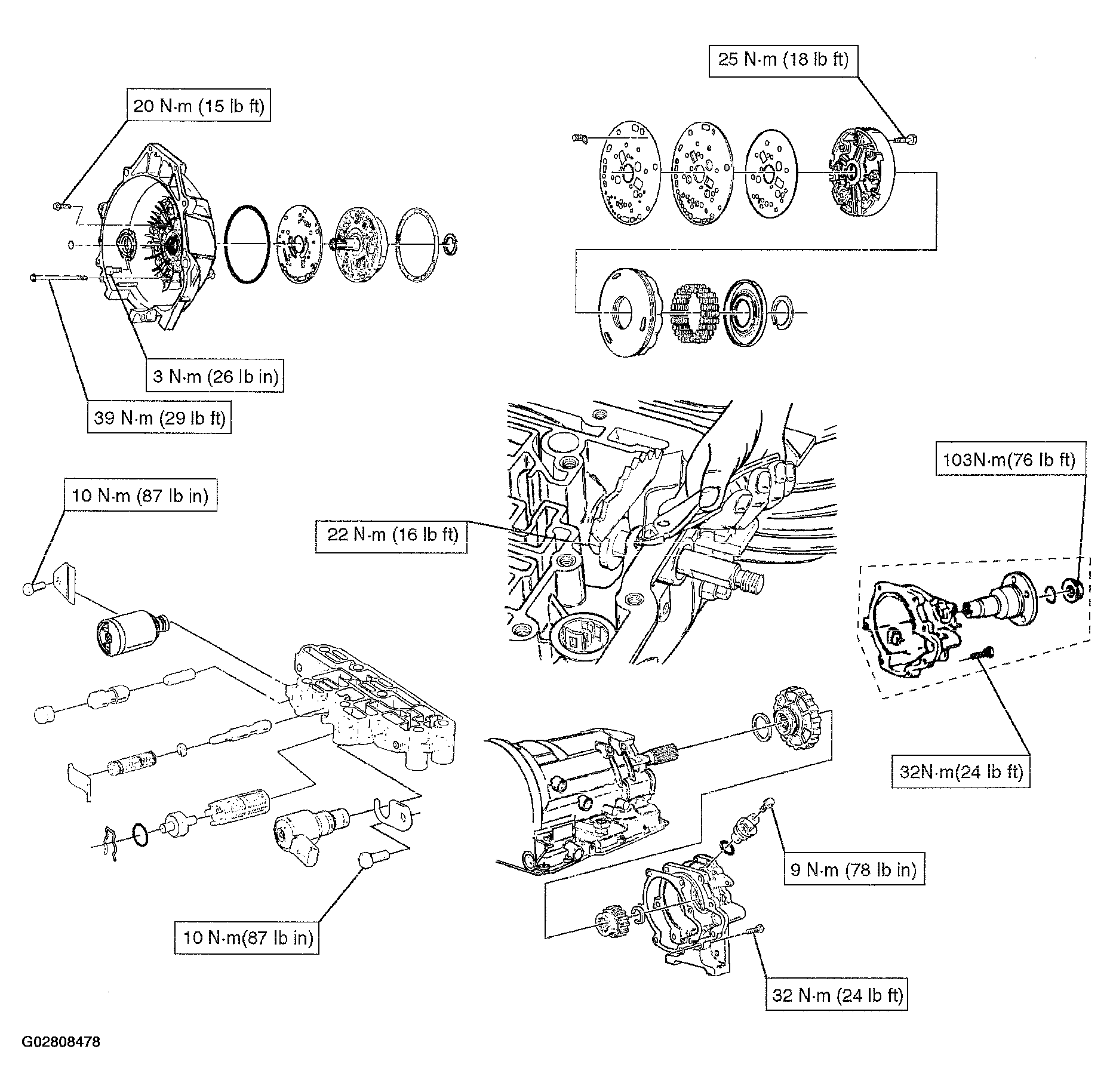

Fig 3: Torque Specifications Chart (3 Of 3)

G02808478

Courtesy of ISUZU MOTOR CO.
