Disassembled View: Disassembly

  1. Remove retaining ring (1) from second clutch drum (11).
  2. Remove ring gear (2), retaining ring (3), and spacer (4).
  3. Remove clutch plates (5) and waved washer (6).
  4. Remove retaining ring (7) using J-23327 compressor to compress the spring seat (8).
  5. Remove spring seat (8), springs (9) and piston assembly (10) from second clutch drum (11).

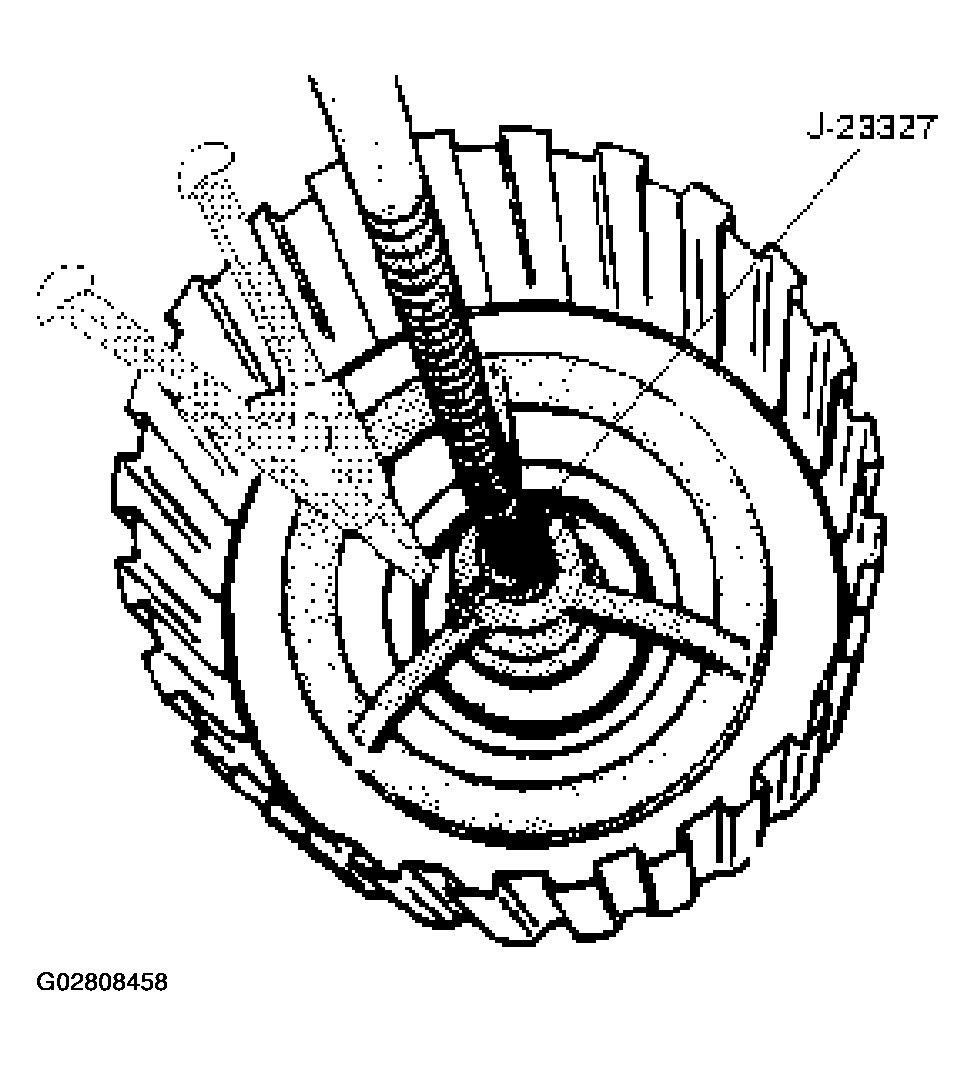

    Fig 1: Removing Spring Seat, Springs & Piston Assembly From Second Clutch Drum
    G02808458Courtesy of ISUZU MOTOR CO.
