"Normal Mode": Upshift

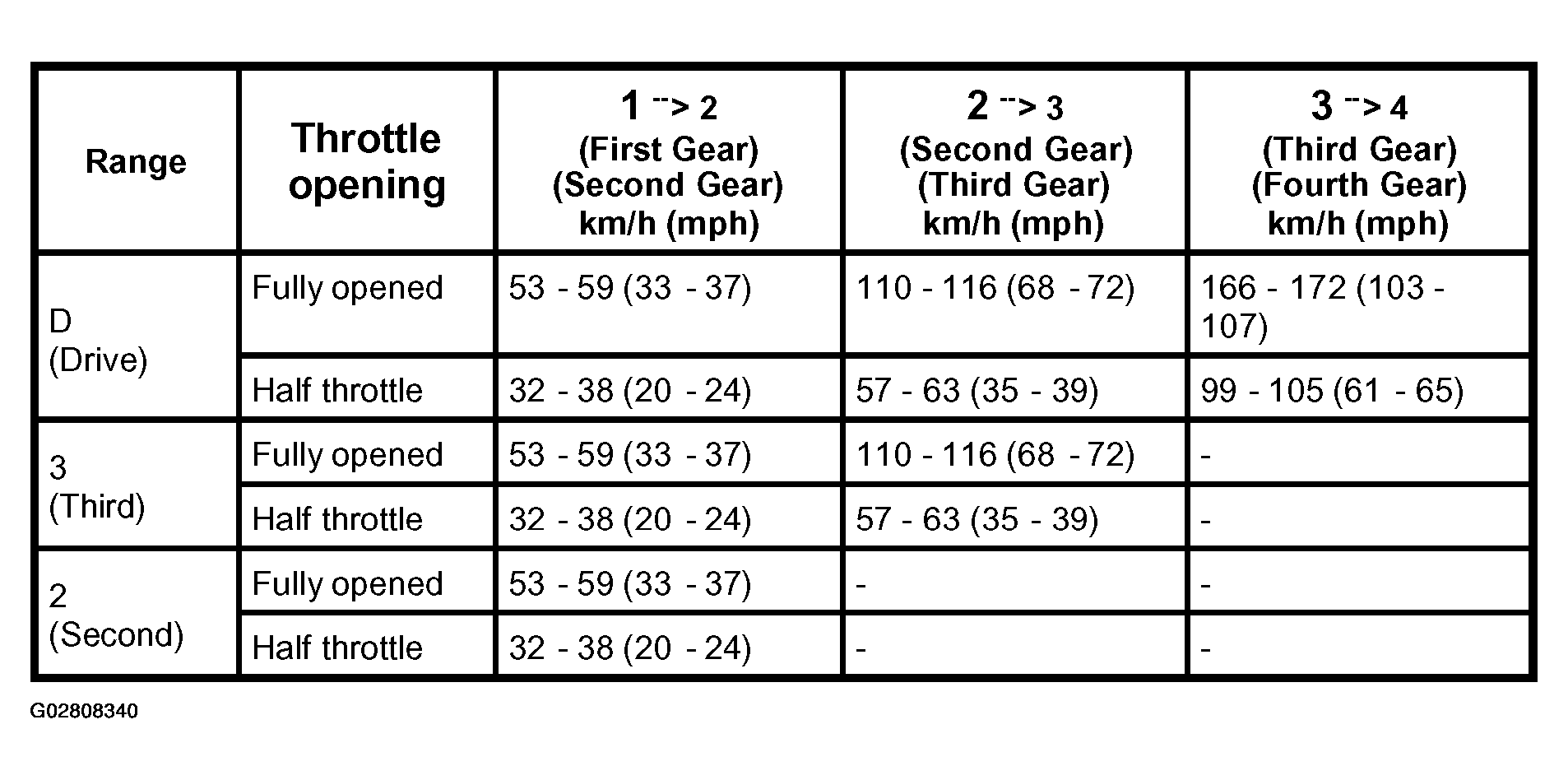

Fig 1: Upshift Speed Chart (Normal Mode)
G02808340Courtesy of ISUZU MOTOR CO.
