DTC P0711 Transmission Fluid Temperature (TFT) Sensor Performance: Notes

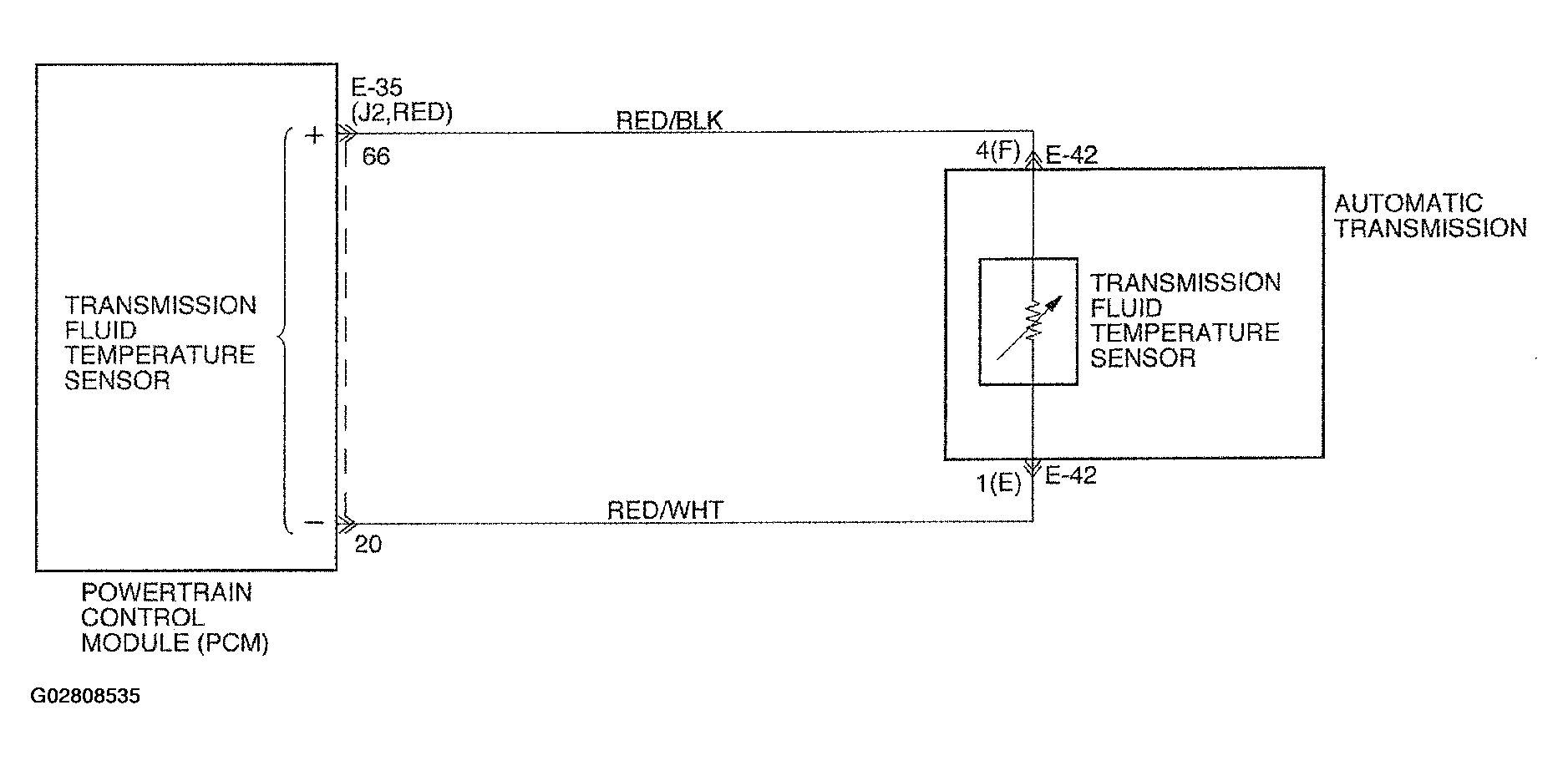

Fig 1: DTC P0711 Transmission Fluid Temperature (TFT) Sensor Performance Circuit Diagram
G02808535Courtesy of ISUZU MOTOR CO.
