Body Dimension
›
Rear Section
Rear Section

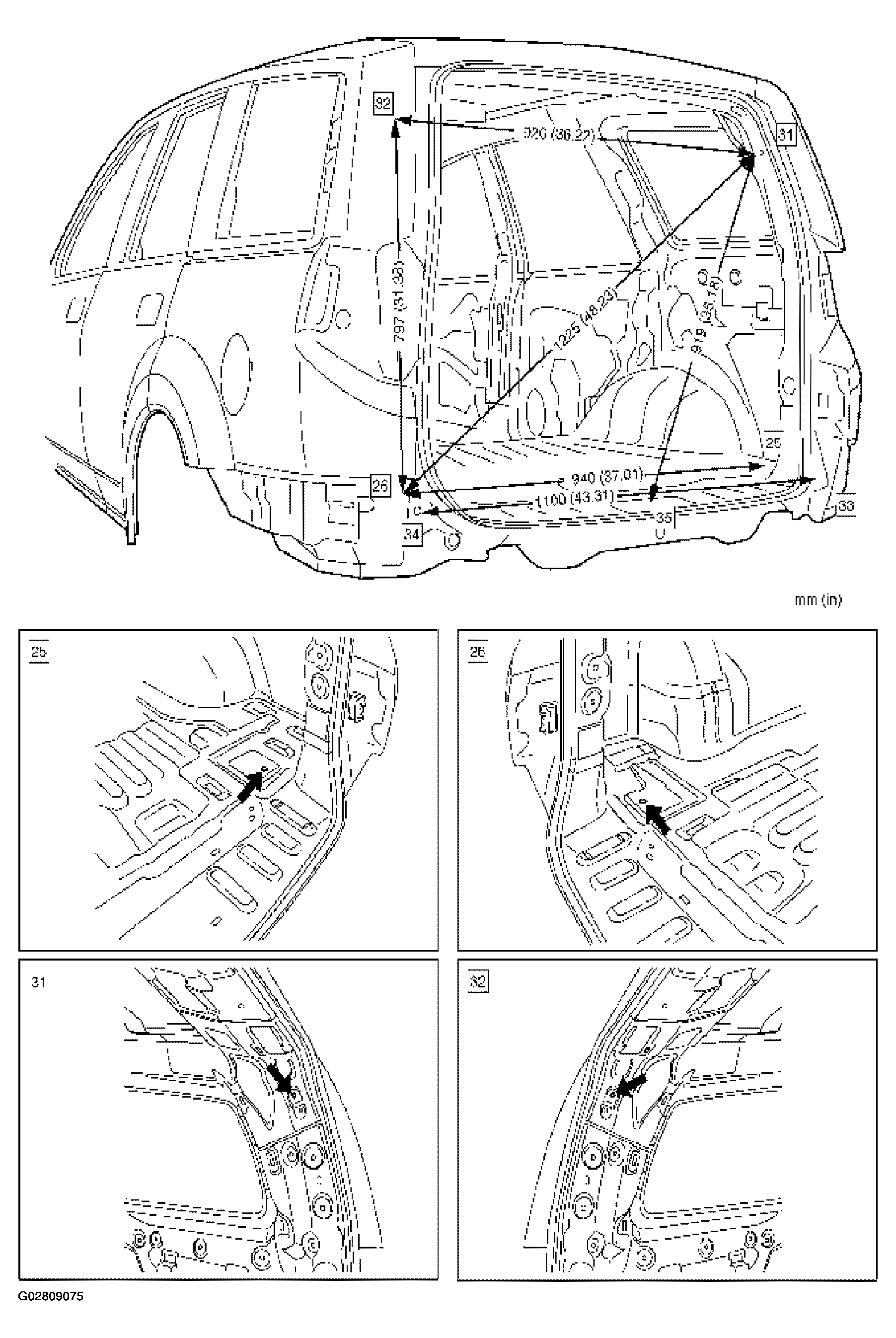

Fig 1: Identifying Body Dimension Rear Section (1 Of 2)
Courtesy of ISUZU MOTOR CO.

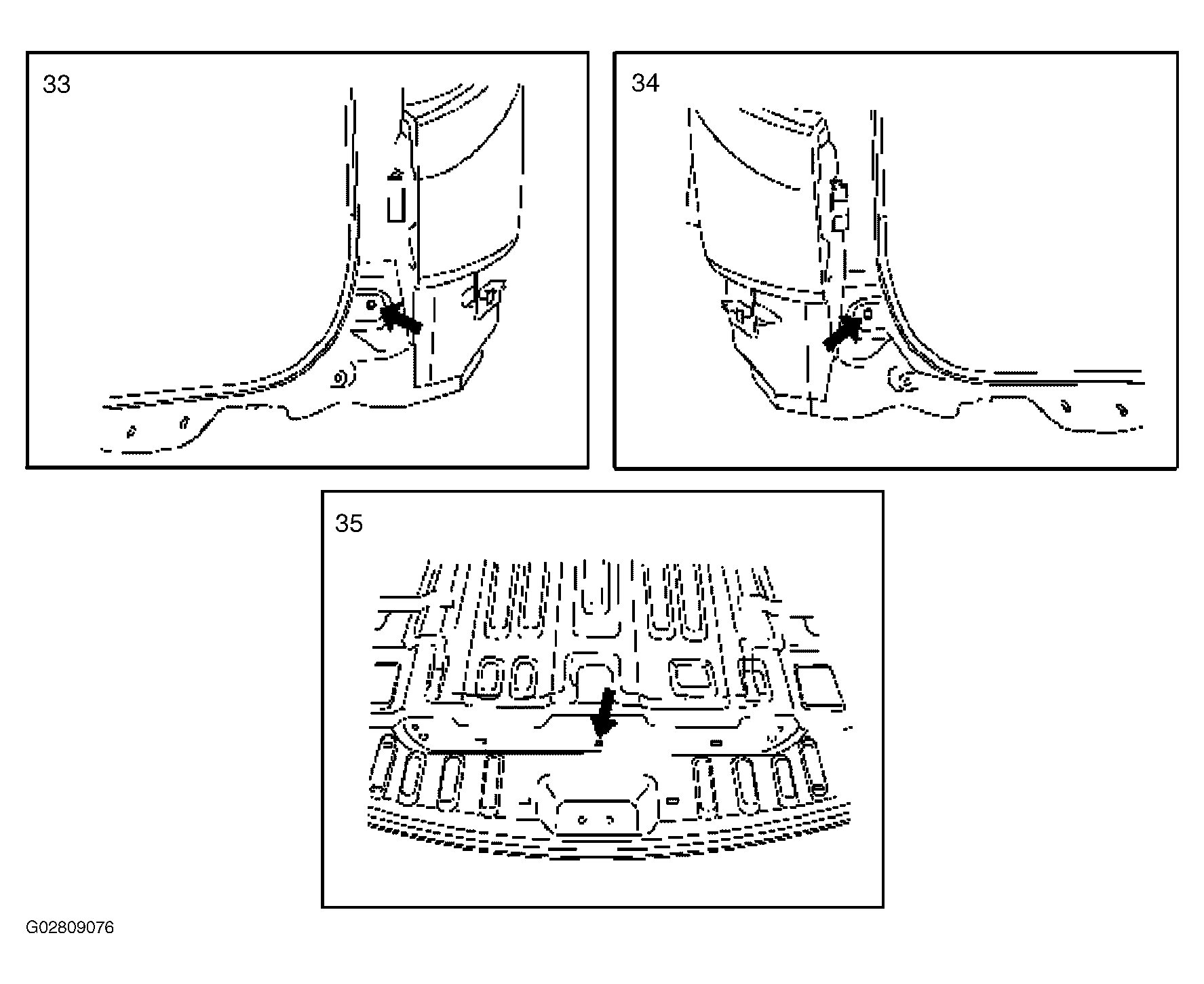

Fig 2: Identifying Body Dimension Rear Section (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
