Lifting Instructions
›
Lifting Points And Supportable Point Locations
›
Notes
Lifting Points And Supportable Point Locations: Notes

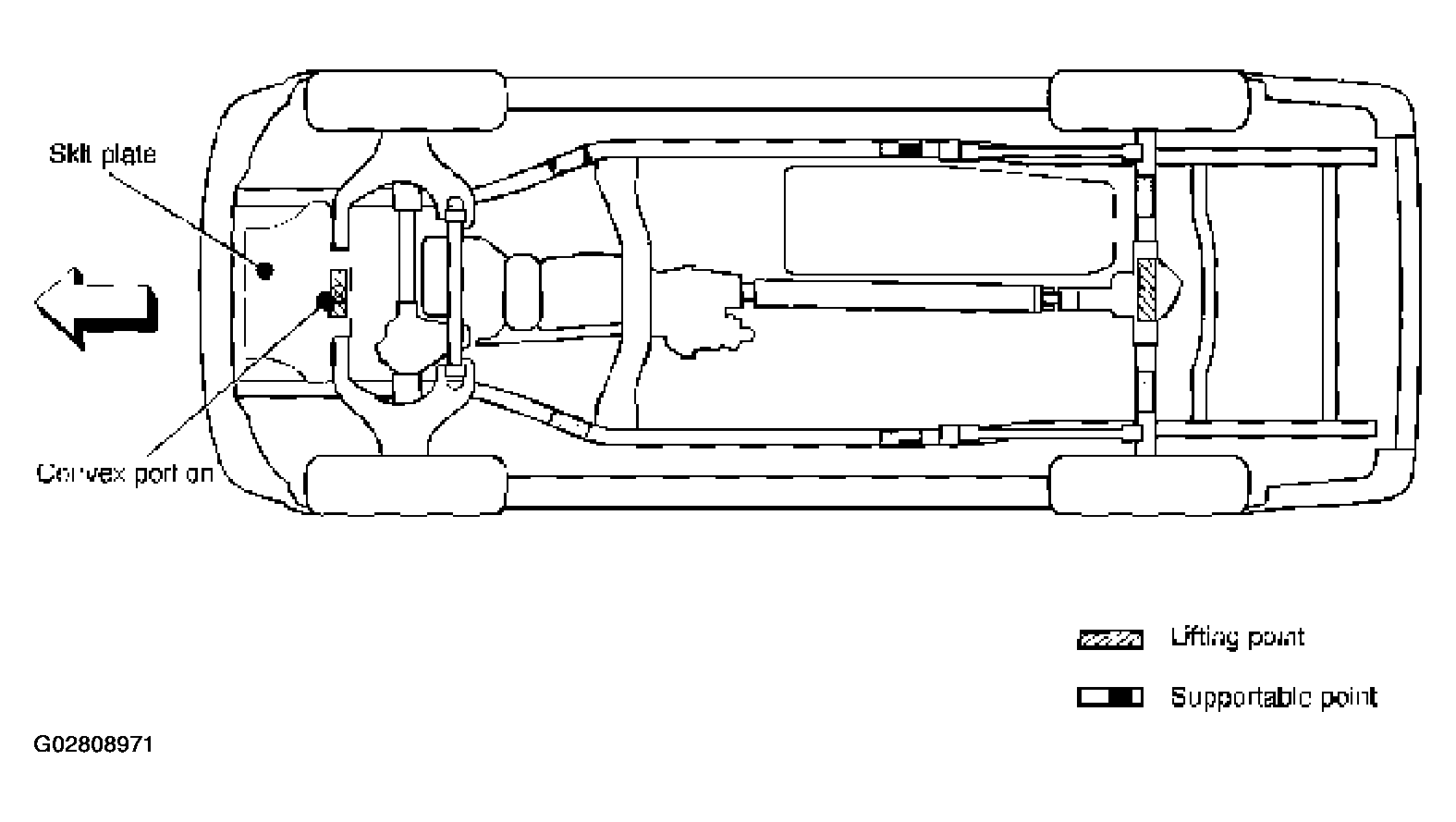

Fig 1: Identifying Lifting Points And Supportable Point Locations
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
