Ignition Module: Installation

  1. Install the ignition module (1).

    Connect ignition module connector and ignition coil, then tighten bolt to the specified torque.

    1. Torque:  10 N.m (87 lb in)

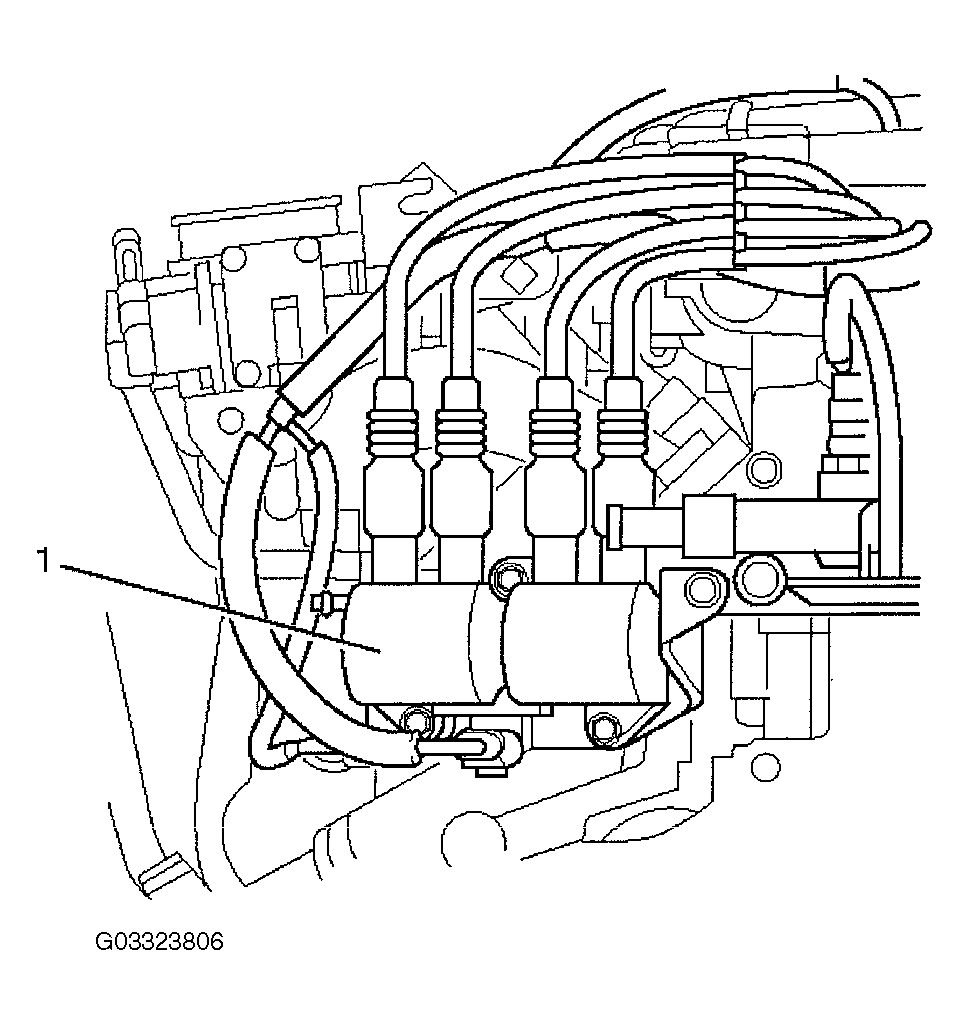

    Fig 1: Installing Ignition Module
    G03323806
  2. Connect ignition module connector.
  3. Connect battery ground cable.
