Select Cable: Installation

  1. Set selector lever in "P" position.
  2. Let out select cable transmission side end from floor hole.
  3. Fit outer cable into bracket in selector lever assembly.
    Fig 1: Fitting Outer Cable Into Bracket In Selector Lever Assembly
    G02779296
  4. Set inner cable end in selector lever and push pin into selector lever hole and inner cable end.
    Fig 2: Setting Inner Cable End In Selector Lever (4x4)
    G02779297
  5. Check that lock projects.
    Fig 3: Checking Lock Projects
    G02779298
  6. Connect adjust end-fitting attachment to the bracket on transmission.
  7. Set select lever "P" position and connect inner cable to select lever.

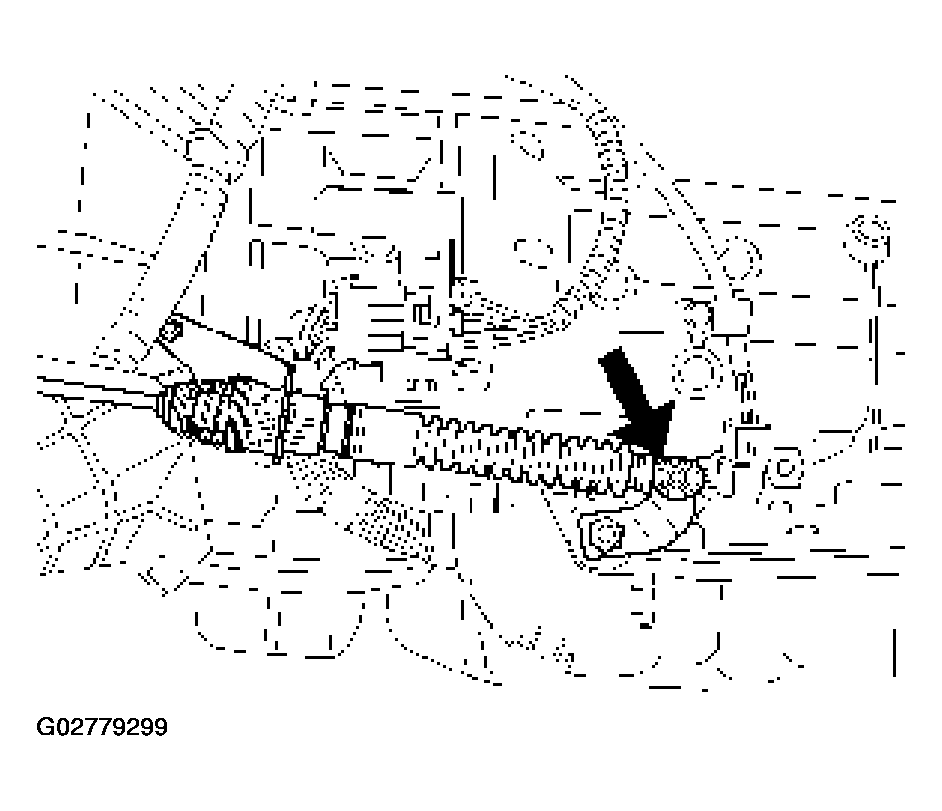

    Fig 4: Setting Select Lever "P" Position & Connecting Inner Cable To Select Lever (V6)
    G02779299
  8. Push lock into adjust end-fitting attachment.
    Fig 5: Pushing Lock Into Adjust End-Fitting Attachment
    G02779300
  9. Install grommet.
  10. About following installation steps, Refer to SELECTOR LEVER  .
